ASSEMBLY INSTRUCTIONS
No Tools Required for
Assembly.
Before beginning assembly of product, make sure all parts are
present. Compare parts
with package contents list. If any part is
missing or damaged, do not attempt to assemble the
p
r
oduct.
Estimated Assembly Time: 5-10 minutes

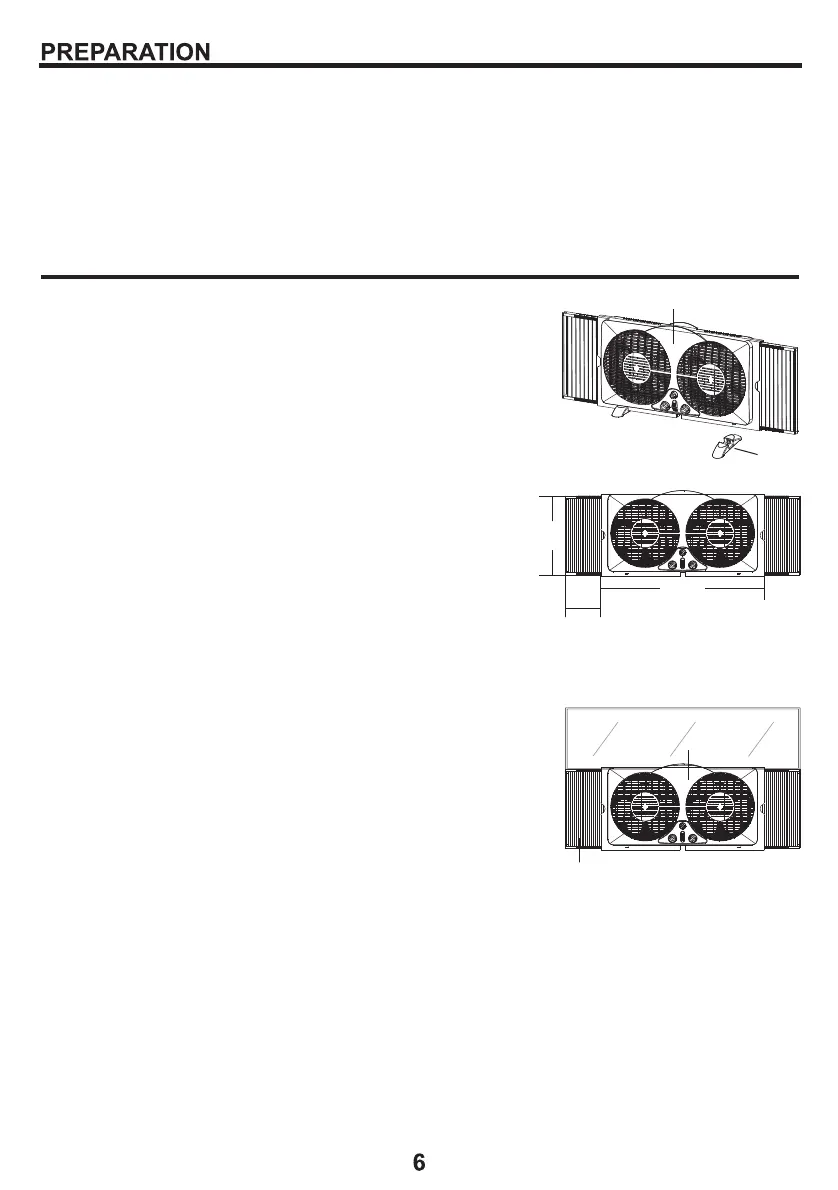

1. Push the feet (F) into the fan body (A)
and snap together. (Fig. 1)
2. This window fan has been designed to
fit double-hung, slider ad casement
windows with minimum openings of
3. This fan is designed and
recommended for use with your
window screen in place.
FOR DOUBLE-HUNG TYPE WINDOWS ( Fig. 3 )
1. With the window fully open, set the fan in
the window with front (A) of fan facing the
INSIDE.
2. Hold fan with one hand while adjusting
panels (G) with the other.
3. Close the window on top of the fan with
the bottom edge of the window behind the
lip of fan housing.
4. If the fan still does not fit properly in the window, readjust the
expandable panel on right/left side of fan to fill in remaining
space between panel and window frame until a secure fit is
achieved.
24.4 in. wide and 13 in. high. ( Fig. 2 ).
No feet required when using in the
window.
A
A
G
F
12.3 in.
23.4 in.
Pulls out up to 5.5 in.
Fig. 2
Fig. 3
Fig. 1
