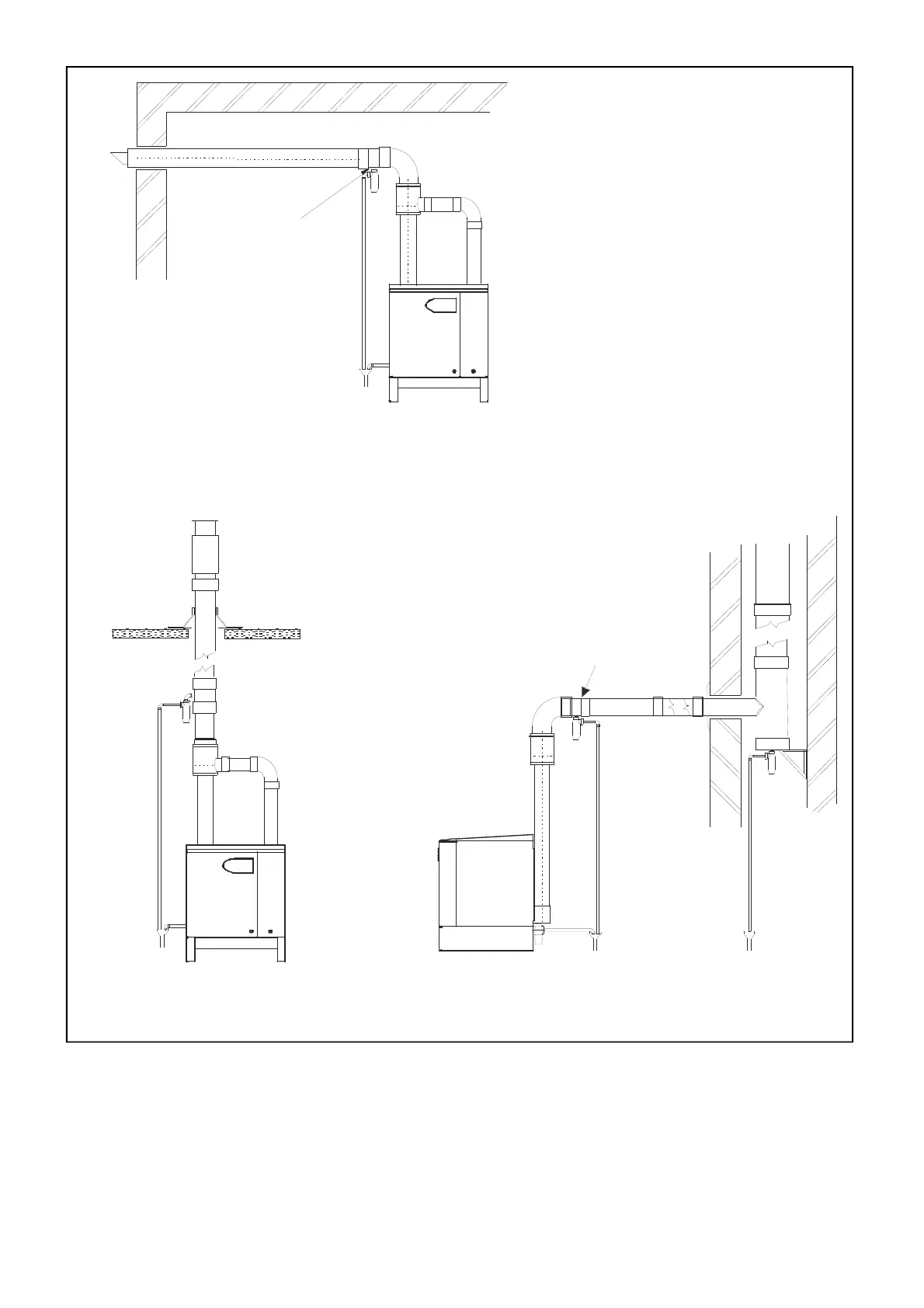

Figure 4.5.2 - Flue Condensate Connection and discharge
Concentric
inline drain
& trap
Single pipe
inline drain
& trap
Tundish to drain
Horizontal Concentric Flue System
Vertical Concentric Flue System
Conventional Chimney Flue System
Tundish
to drain
