HAMWORTHY HEATING LTD
7
FLEET W series 500001211/F

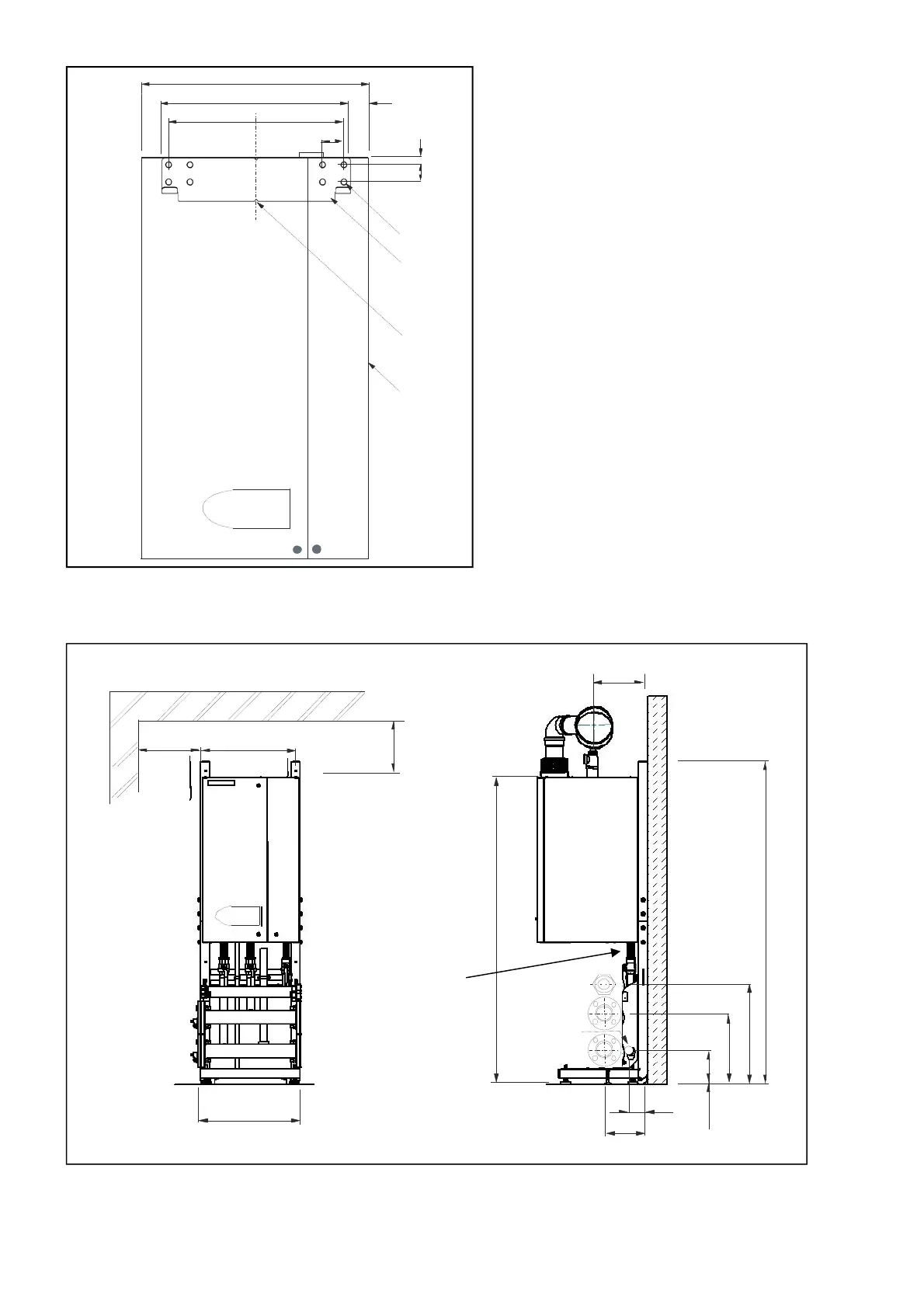

Figure 3.2.1 – Single boiler installation - Refer to table 3.2.5
Figure 3.1.6 - Wall mounting template
3.2 The Hamworthy Heating Ltd frame set and pipe work kit is designed to provide a compact solution for connecting the
boilers to the gas supply and flow and return water connections. Refer to kit instructions for specific information
440
410
Wall Mounting
Plate
8 holes 12Ø
Plate centre
line notched
Boiler
outline
50
50
40 15
540
225
128
A
560
1740 Nom.
1830 Nom.
380 Nom.
524 Nom.
190 Nom.
Flow
Gas
Condense
Return
540150
300 min.
1/2” BSP Socket F+F
for pressure gauge
