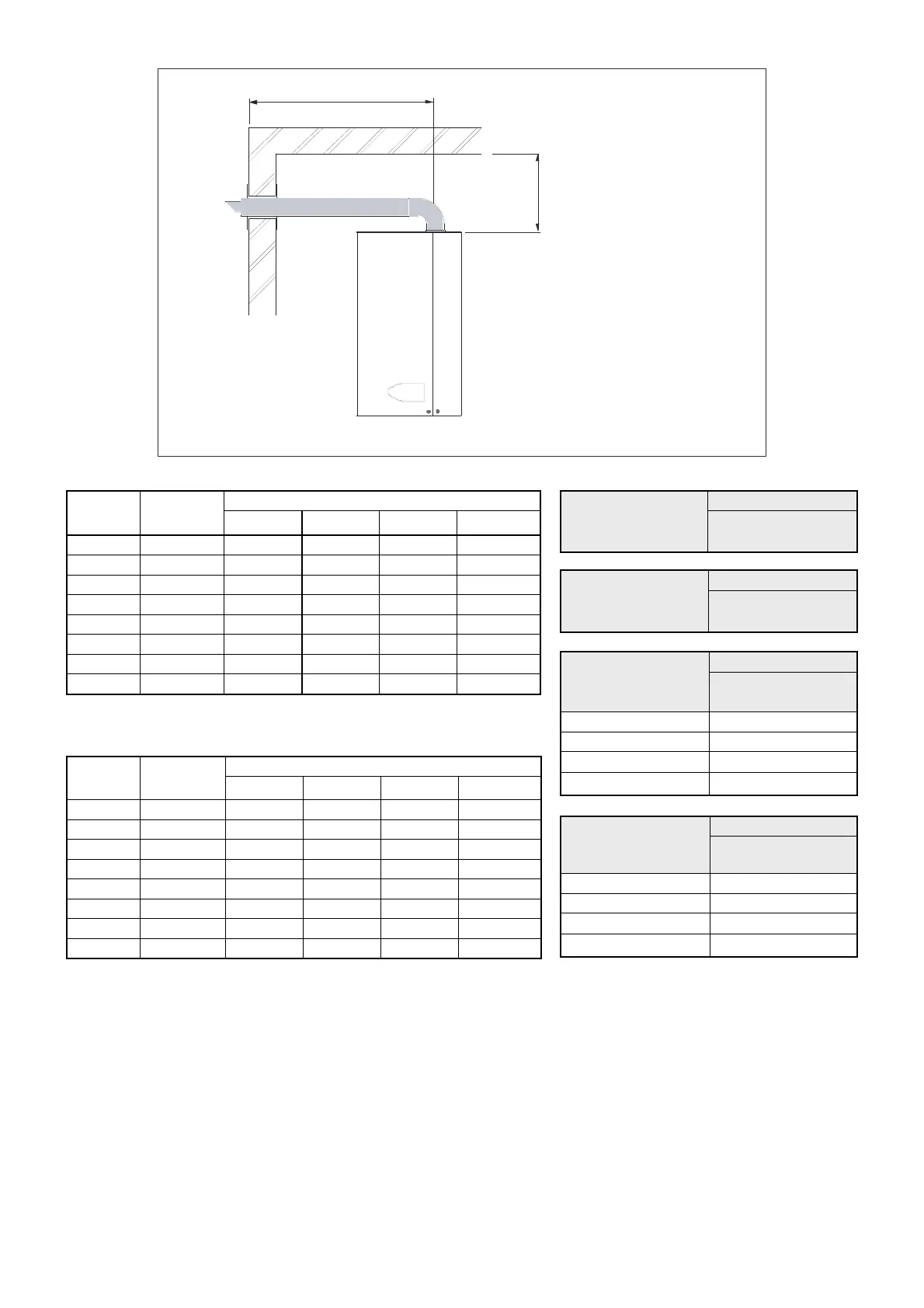

Figure C1.1 - Room sealed concentric C13 horizontal flue system
Model FluesizeØ
Equivalentlengths(m)
MaxL 45° 90° cond.Drain
40 80/125 30 0.75 1 0.5
50 80/125 20 0.75 1 0.5
60 80/125 13 1.5 2 0.5
70 80/125 9 1.5 2 0.5
85 80/125 4 2 3 0.5
100 80/125 1 3 4 0.75

125 100/150 7 1 1.5 0.75
150 100/150 4 1 1.5 0.75
StandardHorizontal
fluekit80/125Ø
HHLPartno
532511155
Model FluesizeØ
Equivalentlengths(m)
MaxL 45° 90° cond.Drain
40 100/150 60 0.5 0.75 0.5
50 100/150 40 0.5 0.75 0.5
60 100/150 30 0.75 1 0.5
70 100/150 20 0.75 1 0.5
85 100/150 15 0.75 1 0.5
100 100/150 10 1 1.5 0.75
125 100/150
 7 1 1.5 0.75
150 100/150 4 1 1.5 0.75
Figure C1.2 - Individual Flue equivalent
lengths - refer to fig. C1.1 & C1.2
StandardHorizontal
fluekit100/150Ø
HHLPartno
562511029
1085 max
300 min
ExtendedHorizontal
fluekit80/125Ø
HHLPartno
562511032
Opons:
80/125Ø87°Elbow 532511124
80/125Ø45°Elbow 532511123
80/125Ø*1m 532511139
ExtendedHorizontal
fluekit100/150Ø
HHLPartno
562511053
Opons:
100/150Ø87°Elbow 532511118
100/150Ø45°Elbow 532511116
100/150Ø*1m 532511132
