4. Changing parts
4.1. Changing the hand control
1. Unscrew the connector on the portable motor.
2. Connect a new hand control and test the functions.
Remember to screw the connector tight.

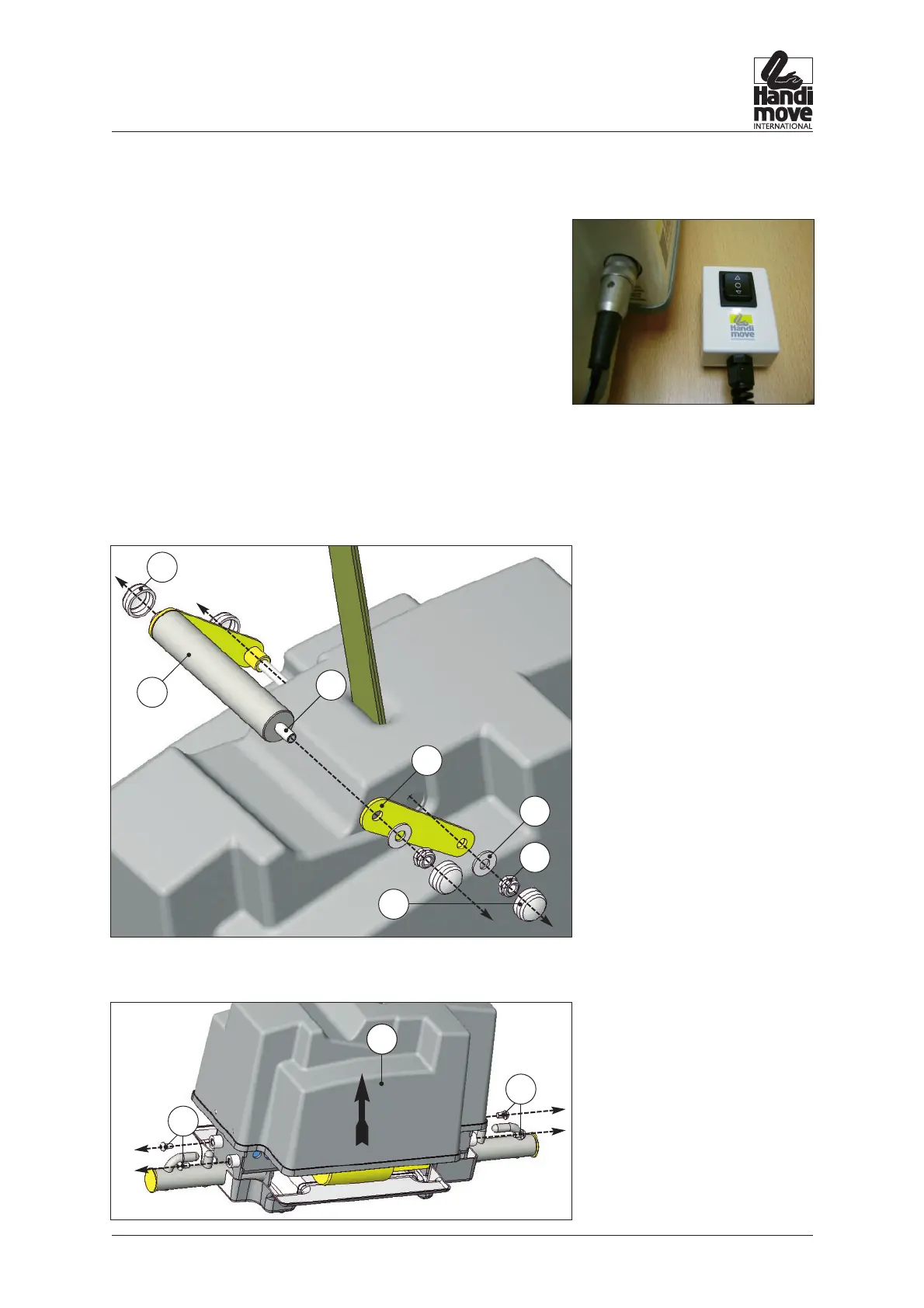

4.2. Removing top cover
1. Remove the end caps (A) of the handgrip using a screwdriver.
2. Loosen the locknuts (B) and remove.
3. Remove the washer (C).
4. Take the plate (D) off the 2 bolts (B’).
5. Unscrew the handgrip (E) from portable motor.
6. Loosen the screws (F) and remove them.
7. Remove the top cover (G) from the portable motor.
p. 10
2540 / 2545 • REPAIR
A
E
D
B’
C
B
A
WG
F
F
