HandI Move 2540 - Changing the motorband

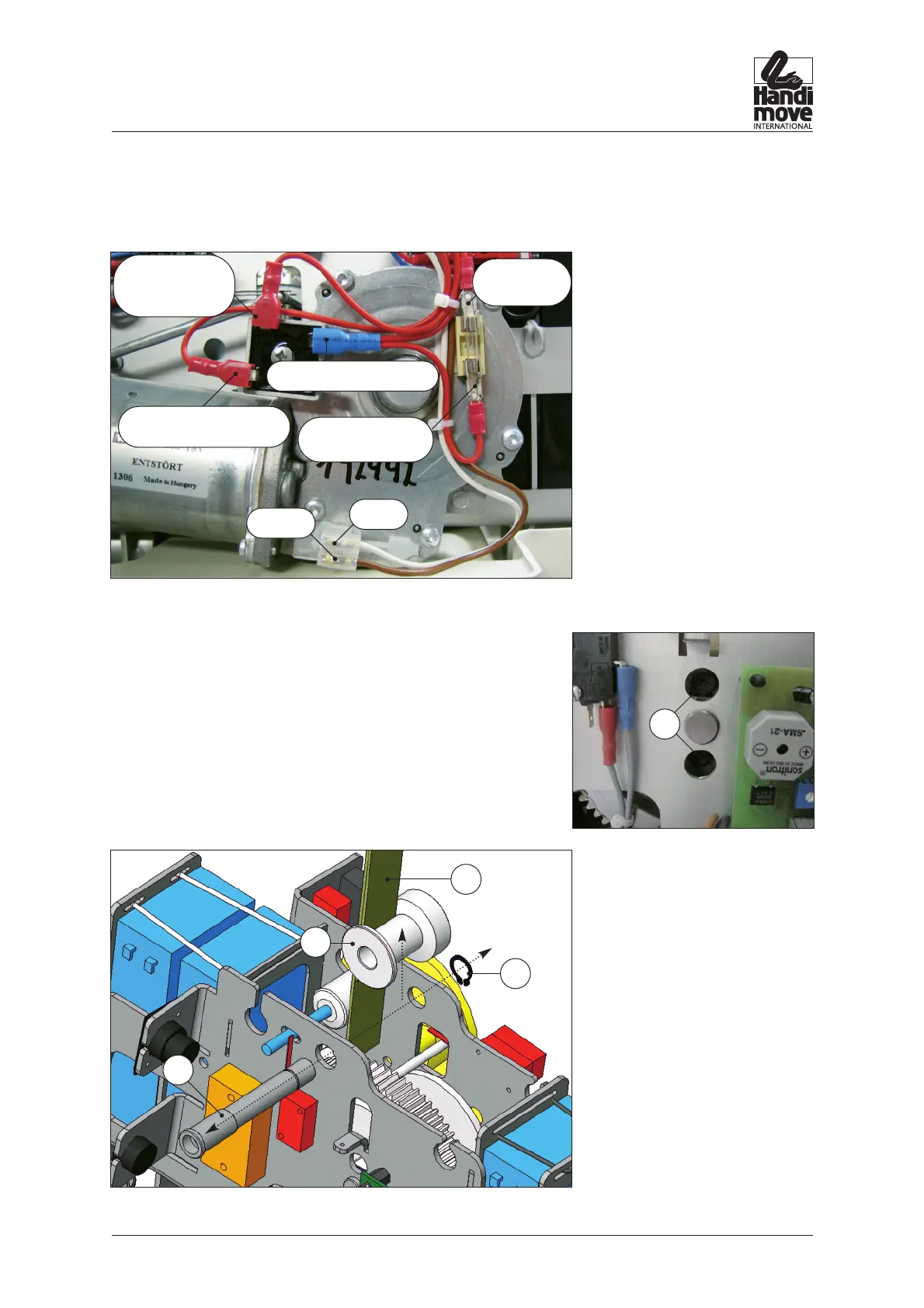

17. Before connecting the cables and the fastons see the photo below
or the electrical diagram, section 2
18. Test the operation of the portable motor.
19. Refit the top cover (see step 4.3.).
4.9. Changing the motorband
1. Remove the top cover (see step 4.2.)
2. Unwind the motorband (Y) fully, but ensure that the adjusting bolts
(Z) are aligned with the holes provided using the Up/Down button.
3. Remove circlip (R).
4. Remove the shaft (S) from the frame. Roller (T) can then be removed.
p. 17
2540 / 2545 • REPAIR
Y
T
R
S
Z
red of battery
red of
charger socket
red of
rectifier
red of
charger socket
red of
emergency
switch
white
brown
