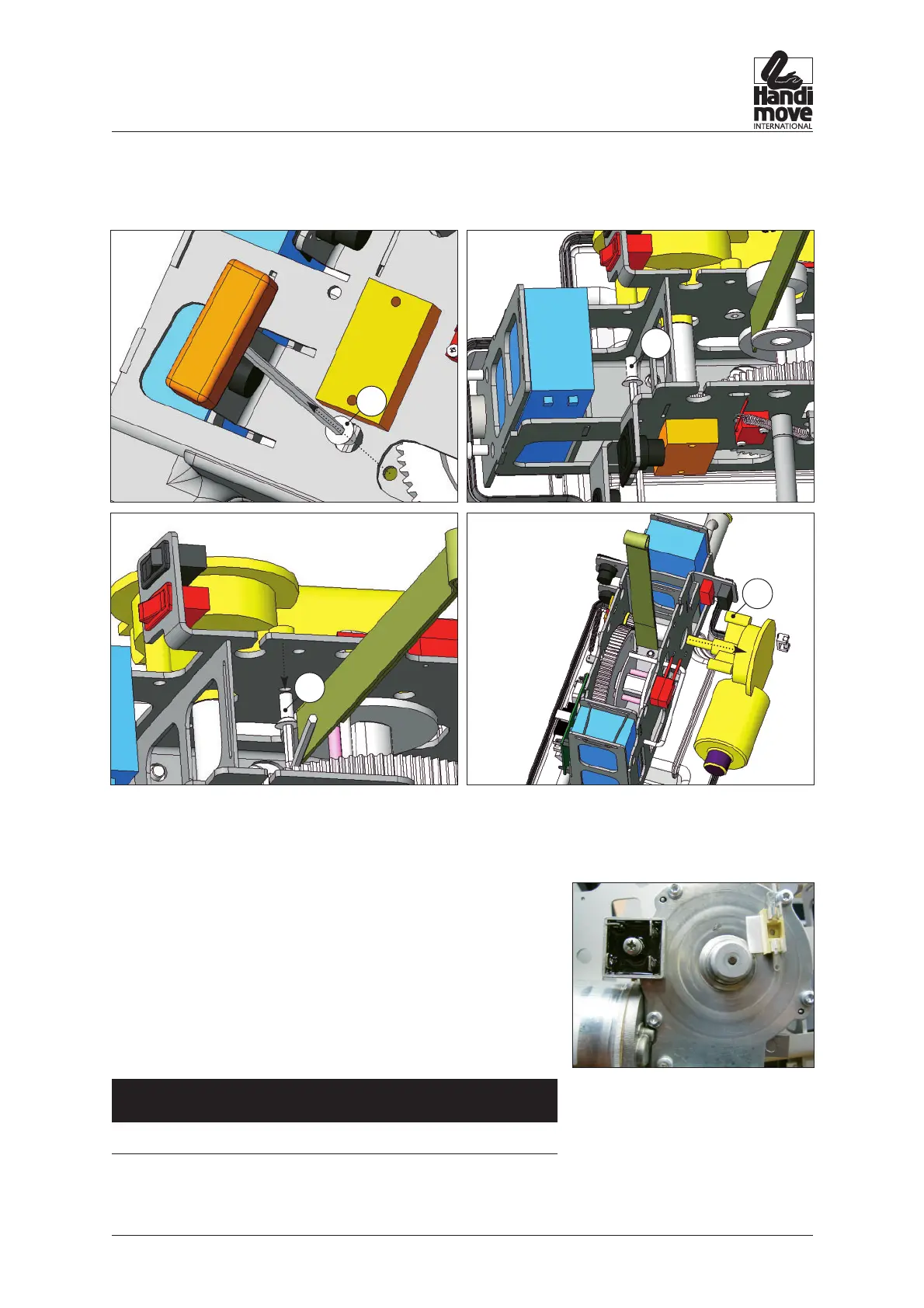

11. Unscrew the 3 bolts (X) that attach the motor to the frame and
remove the motor (U). (The gear wheel on the motor should also
be removed)
12. Remove the gear wheel from the motor and fit it on the new motor
+ check the presence of the bronze ring.
13. Unscrew the screw from the motor where the rectifier is to be fit-
ted.
14. Fit the rectifier and the fuse holder on the motor.
15. Install the motor back in the frame.
16. Carry out steps 2. to 8. in reverse order to proceed with the assembly.
NOTE
USE NEW CIRCLIPS WHEN ASSEMBLING.
p. 16
2540 / 2545 • REPAIR
U
X
X
X
