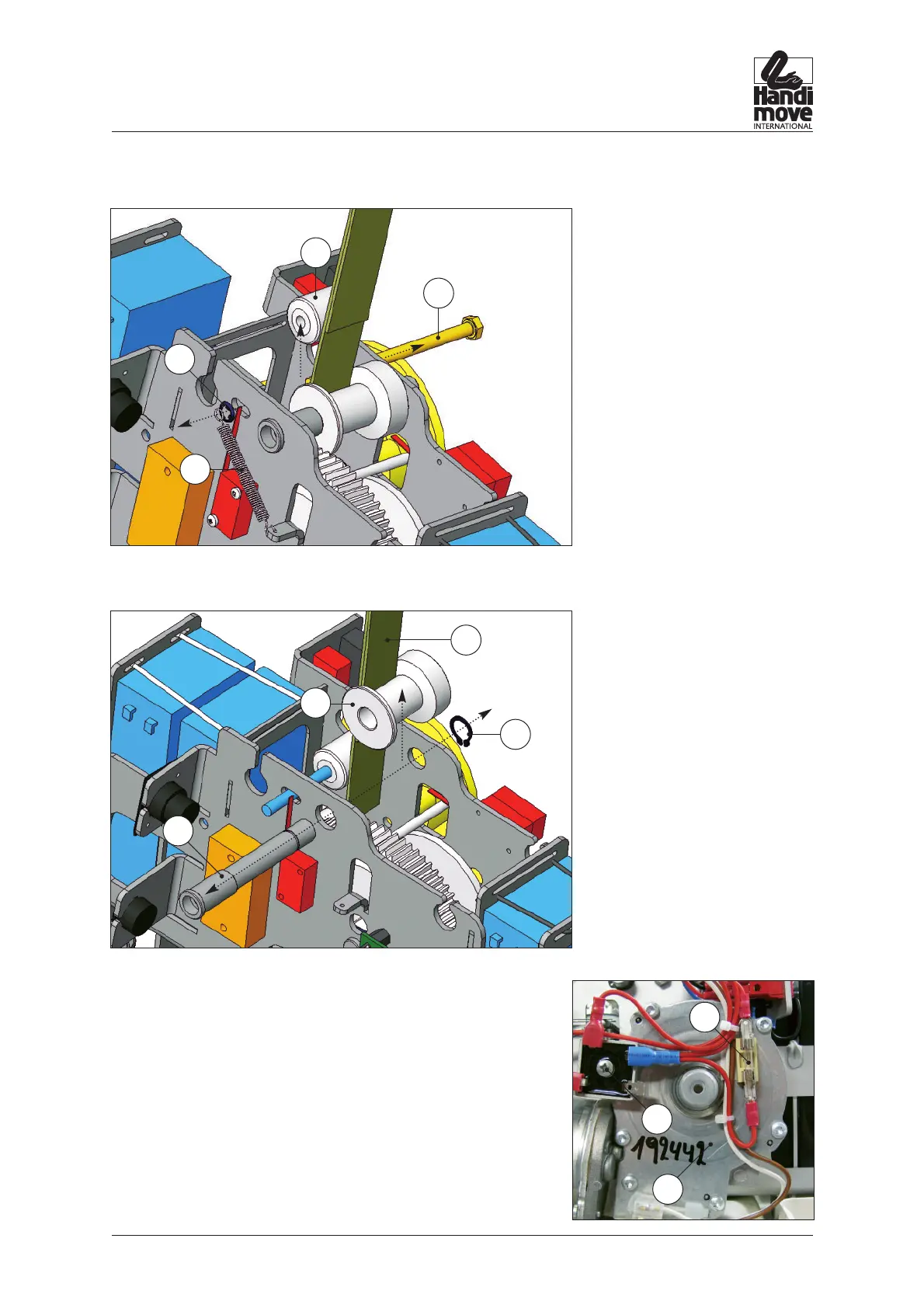

5. Remove the spring (N) and circlip (O) from the bolt (P).
6. Remove the bolt from the frame. Roller (Q) can also be removed.
7. Remove circlip (R).
8. Remove shaft (S) from the frame. Roller (T) can be removed.
9. Disconnect the cables from the up/down motor (U)
10. Remove the fastons from the components on the motor and remove
the components.
- fuse (V)
- rectifier (W) (these must be unscrewed).
p. 15
2540 / 2545 • REPAIR
Q
P
O
N
W
V
U
Y
T
R
S
