HandI Move 2540 - Electrical diagram

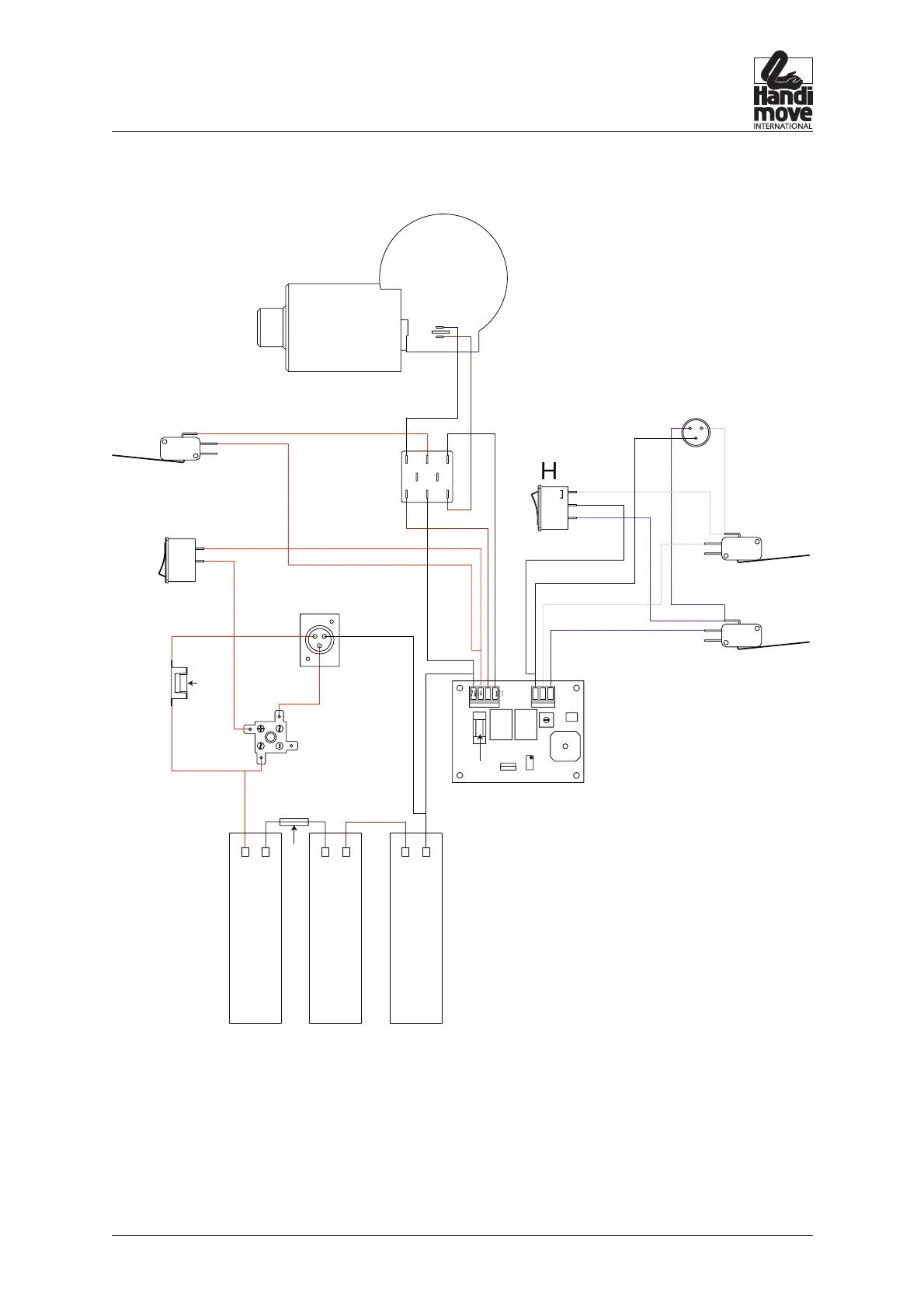

2. Electrical diagram
p. 6
2540 / 2545 • REPAIR
1
2
3
red (nr 14)
red (nr 9)
red (nr 10)
red (nr 25)
blue (nr 4)
blue (nr 6)
blue (nr 5)grey (nr 1)
grey (nr 3)
grey (nr 2)
black (nr 22)
b
lack
(
nr 8
)
black (nr 7)
black (nr 13)
white (nr 16)
S4
U
BB
C1
I
VV'
W
F2
L1 L2 L3
M' M
S3
S2
C2
H
w
hite(nr 18)
black (nr 11) black (nr 12)
brown (nr 24)
brown (nr 17)
brown (nr 15)
red (nr 19)
red (nr 20)
red (nr 22)
red (nr 21)
M Circuit board
M’ Fuse PCB (T 6,3A)
I Emergency switch(On/Off)
S2 Micro Switch upward movement
S3 Micro Switch downward movement
S4 Micro Switch
H Switch (up/down)
C1 Connector changer/power supply
C2 Connector hand control
U Motor SWF 404.148
W Rectifier diodes (15A)
V Fuse holder
V’ Fuse charging circuit (T 1,6A)
F2 Main fuse (ATO 7,5A)
L1 Battery 1
L2 Battery 2
L3 Battery 3
BB Emergency down switch
