General description
13

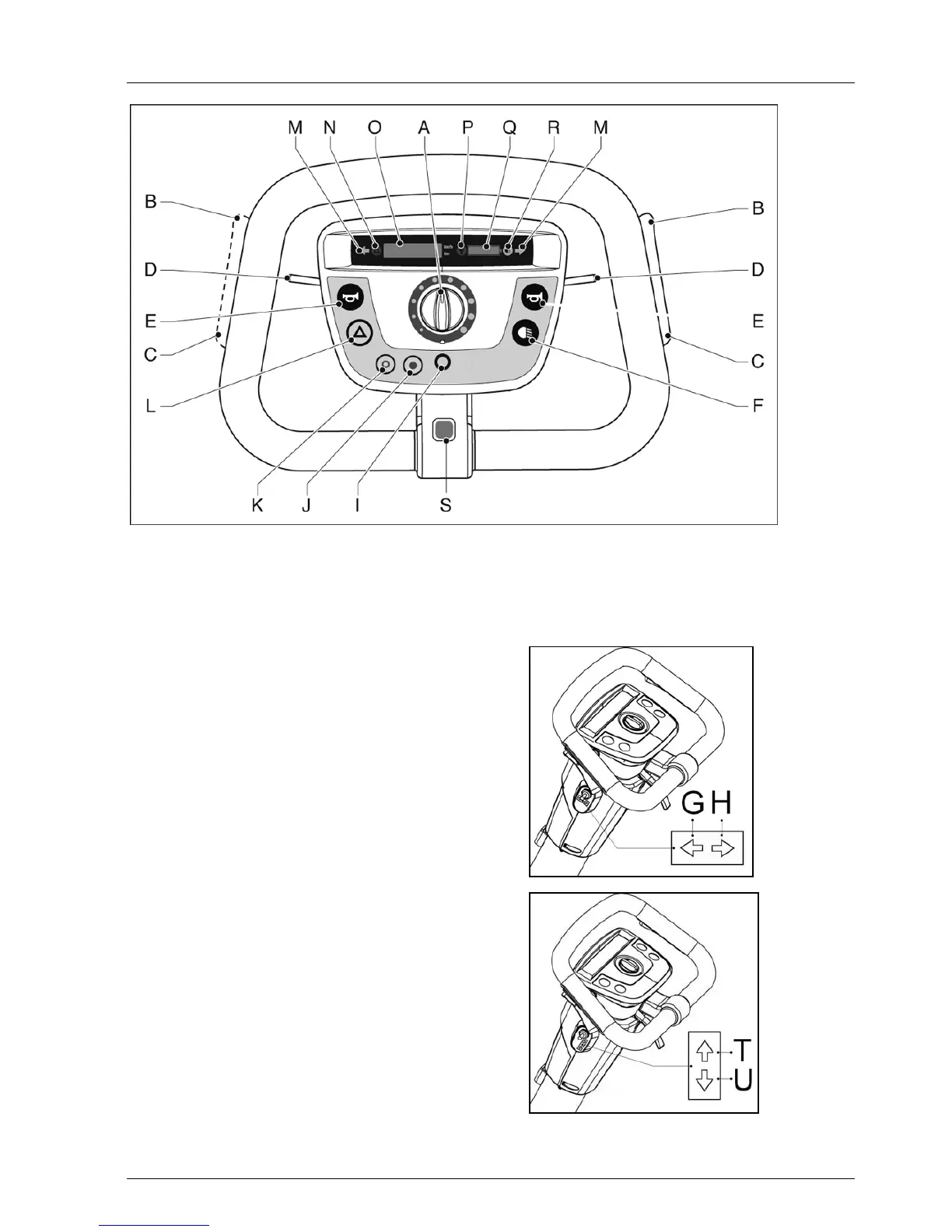

2.3 Tiller console and operating panel
A Speed control
B Throttle: drive forward
C Throttle: reverse
D Indicators left/right
E Horn
F Lighting
G Option: forward (when using foot
throttle)
H Option: reverse (when using foot
throttle)
I Selector switch for speed, daily
distance or total distance
J Option: ‘down’ (e.g. for seat with
electrical high/low)
K Option: ‘up’
L Warning lights
M Indicator ‘indictors switched on’
N Warning lights on
O Speed, daily distance and total
distance indicator
P Indicator light ‘charge battery’
Q Battery indicator
R Lights switched on
S Option: brake button
With dual control
T Right throttle
U Left throttle
