Red Reflective Tape (B)
WHEN TRANSPORTING ON THE HIGHWAY
OR ROADS, PLACE SMV SIGN IN SOCKET
PROVIDED AND REGULARLY CLEAN THE
REFLECTIVE TAPE AT THE REAR OF THE
FORAGE BOX.
NOTE: Obey all state and local laws, concerning
towed equipment, on public roads.
For light information (See Page 25)
Mounting Socket for SMV Emblem (A)
-13-
MAIN FEEDER APRON ADJUSTMENT
Four main feeder apron adjustment bolts are located at the rear of the forage
box. Two are located at the center of the box and are accessible from below
the frame. Left hand tightener bolt is located in panel behind drive shield at left
hand rear corner of box. Right hand tightener bolt is located in panel at right
rear of corner of box.
All apron chains must be taken up evenly before you use the forage box. Check
again after the first few loads. The Main Feeder Aprons should be at proper
tension at all times. Tighten the full threaded bolts (A) to adjust aprons. Aprons
are properly adjusted when the compression springs are an overall length of
one and one-half inches (1-1/2”). When proper adjustment is reached, lock
two center bolts by bending ends of locking tab against flat side of bolt head.
Outside tightener bolts are locked with lock nut tightened against idler shaft.
Maintain this tension when operating the box.
A
Center 2
Tightener Bolts
Right Side
Apron
Tightener Bolt
A
A
Left Side Apron
Tightener Belt
-48-
FIGURE 10

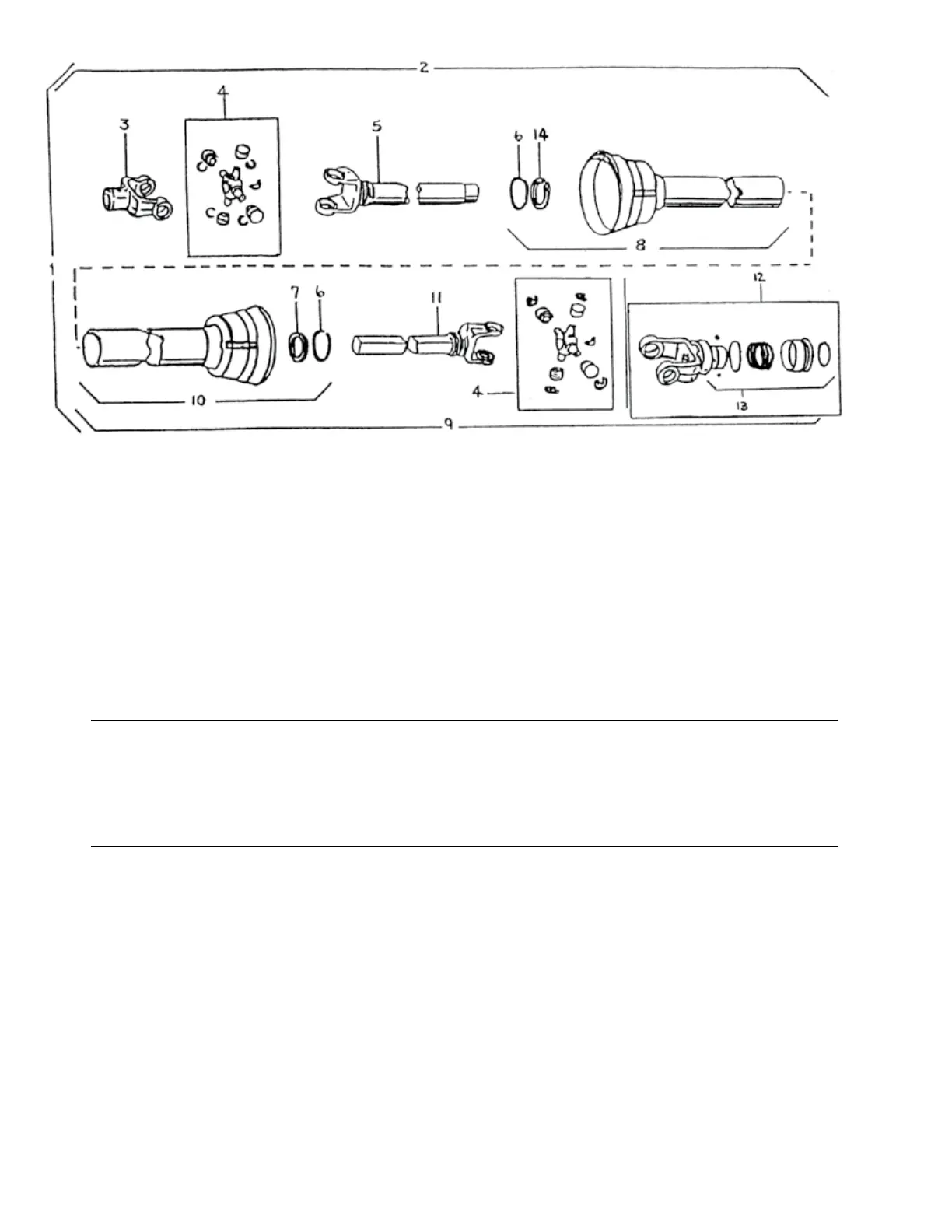

PTO PARTS
HD NEEDLE BEARING PTO
ITEM PART NO. DESCRIPTION
1. S372 PTO Assembly Complete
2. S373 Machine Half PTO W/Shield
3. S374 End Yoke - Machine Half
4. S375 “W’’ Repair Kit
5. S376 Yoke and Tube
6. 24N26 Bearing Retainer
7. S206 Nylon Bearing
8. S397 Inner Guard Includes Cent. & Item #6 & #14
9. S377 Tractor Half PTO
10. S398 Outer Guard Includes Item #6 & #7
11. S378 Yoke and Shaft
12. S379 Lock Yoke - Yoke Assembly
13. S225 Spring Lock Repair Kit
14. S396 Nylon Bearing
* S402 Safety Manual
NOTE: * (Means Not Shown
To Next Page
