-7-
WHEN OPERATING FORAGE BOX
AS A REAR UNLOAD, OPERATOR
SHOULD REMAIN IN TRACTOR
SEAT AND KEEP ALL OTHERS
WELL CLEAR.
EMERGENCY STOP DOES NOT
STOP FORAGE BOX WHEN BEING
OPERATED AS A REAR UNLOAD.
1494Q
DO NOT GO NEAR LEAKS
s High pressure oil easily punctures skin causing
serious injury, gangrene or death.
s If injured, seek emergency medical help.
Immediate surgery is required to remove oil.
s Do not use finger or skin to check for leaks.
s Lower load or relieve hydraulic pressure
before loosening fittings.
11599
-54-

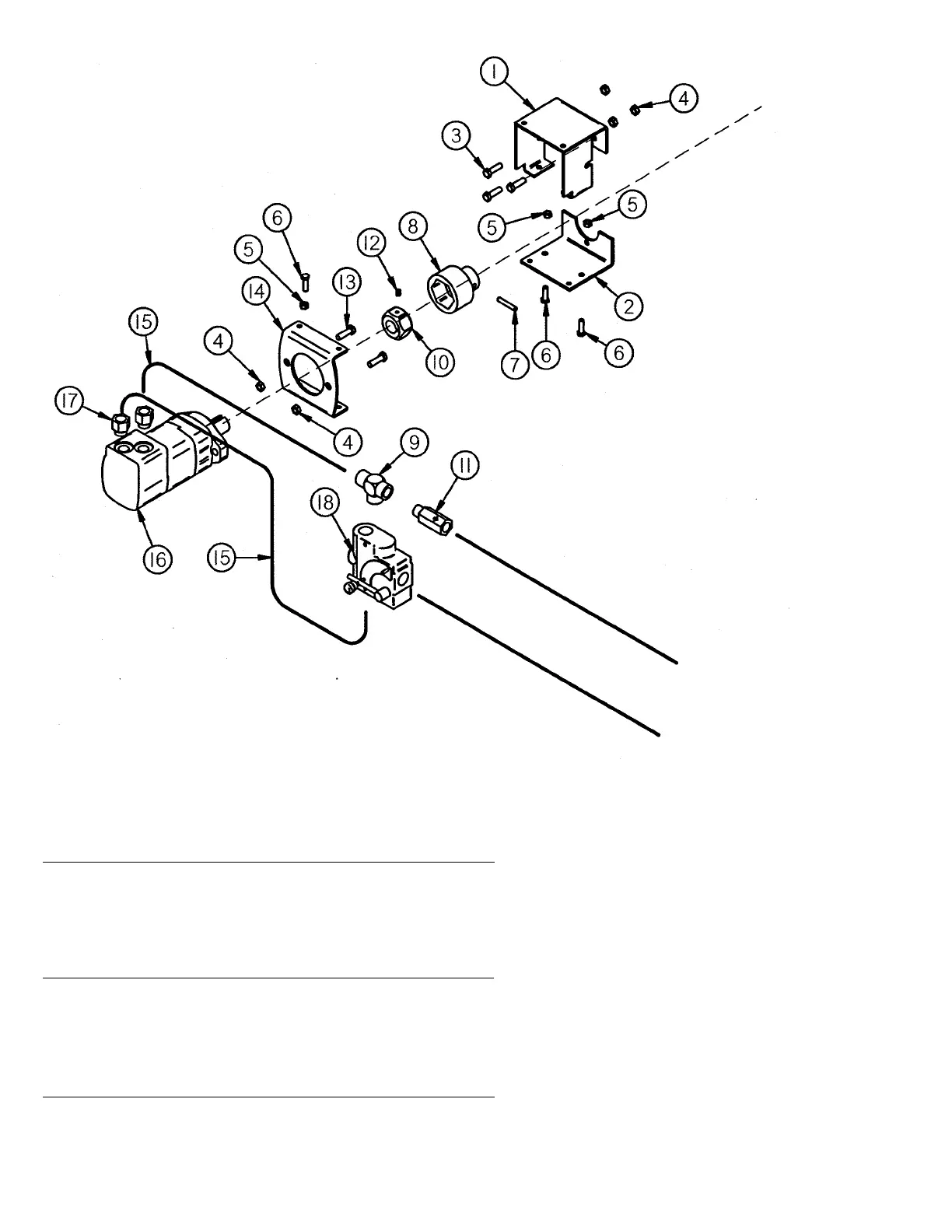

FIGURE 14
OPTIONAL FRONT HYDRAULIC DRIVE
(2000 SERIES)
ITEM PART NO. DESCRIPTION
1. S382 Top Motor Hanger
2. S383 Bottom Motor Hanger
3. 17G141 3/8’’ x 1-1/4’’ GR.5 Bolt
4. K60 3/8’’ Nut
5. T116 5/16’’ Nut
6. 12V66 5/16’’ x 3/4’’ Bolt
7. 3G22 5/16’’ x 1-3/4’’ Expansion Pin
8. S411 Secondary Drive
9. S460 Male-Female Tee (5604-12)
10. S463 Primary Drive
11. PB185 Check Valve
12. S435 5/16’’ Set Screw
13. LW134 3/8” x 1-1/2” GR. 5 Bolt
14. S464 Hydraulic Motor Mount
15. S462 Hydraulic Hose 3/4” x 44”
16. 16SV150 Hydraulic Motor (104-1027-006)
17. S461 O’ Ring Adapter
18. 33SV74 Flow Control Valve
To Next Page
