LUBRICATION
-19-
LOCATION
Shown below is the location of the grease fittings.

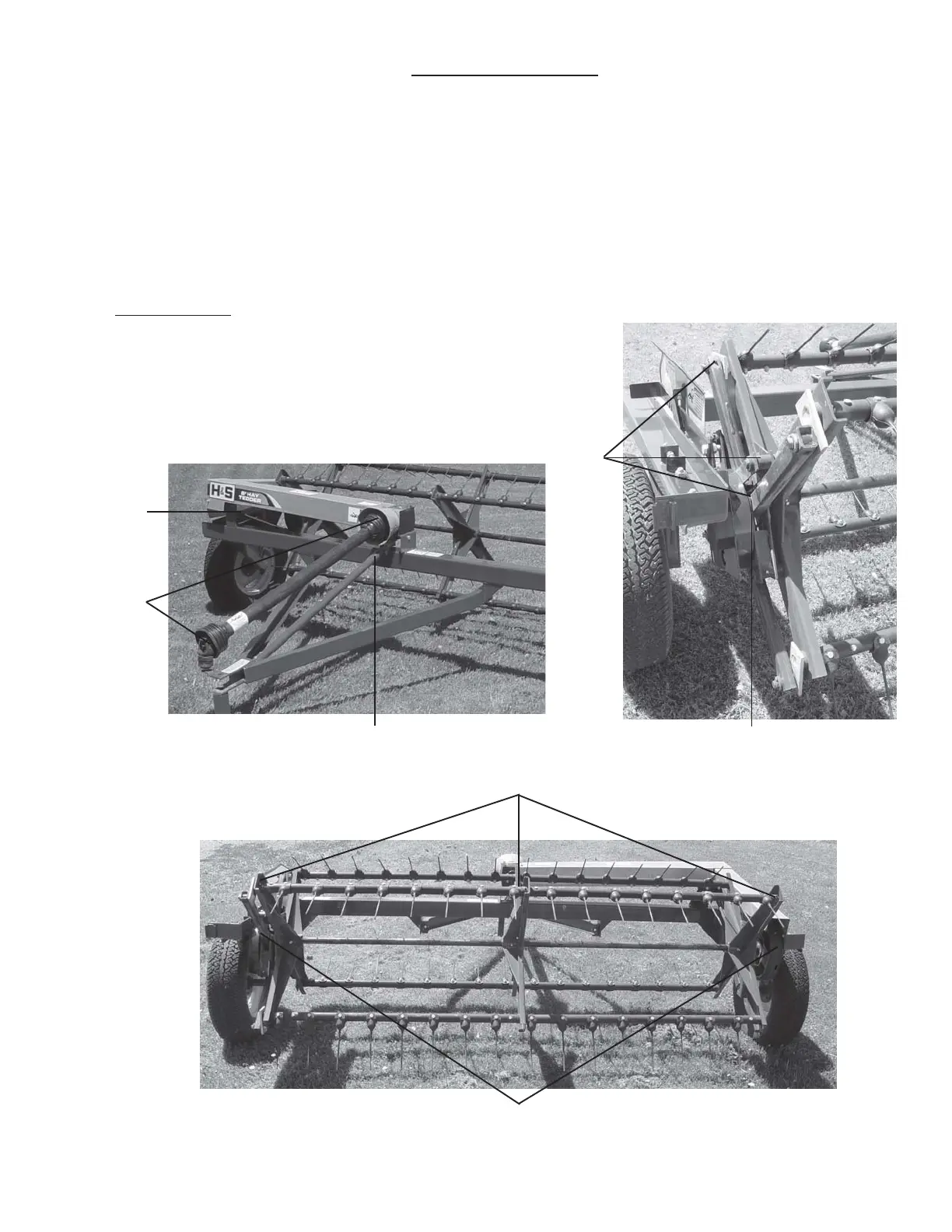

LOCATION OF GREASE FITTINGS
A. (2) One at each end of PTO at U-joint
C. One on hitch adjustment rod
D. One on front jack shaft (sealed bearing)
E. (2) One at each end of reel main shaft (sealed bearing)
F. (12) One at end of each arm of each reel cross
G. (12) Three on each set of cam arms
H. One on cam center bearing
E
F
D
A
C
G
H
