8

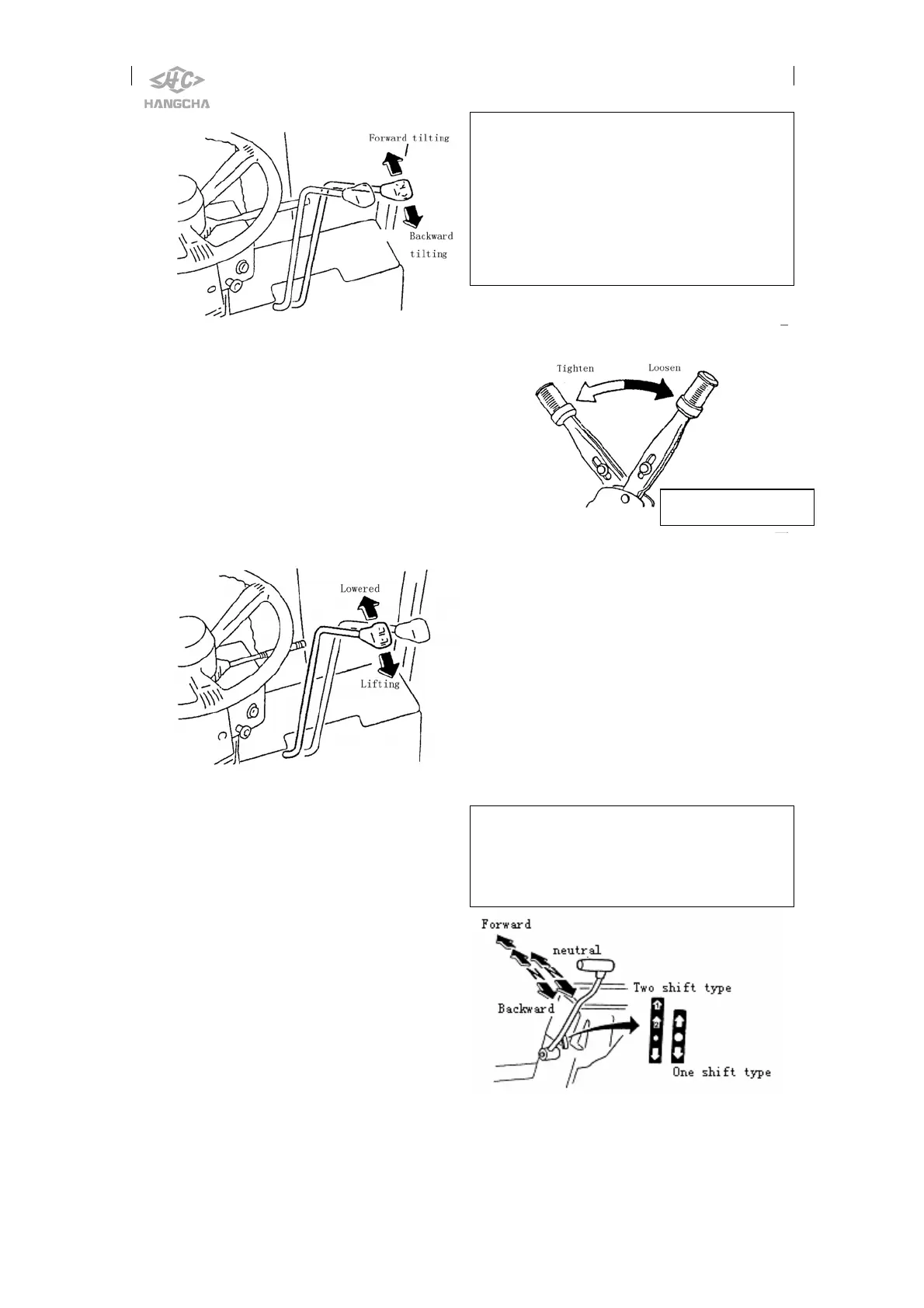

Lift lever [15]
Control the forks’ up or down.
Pulling: up, Pushing-down.
Lifting speed can be controlled by
tilt backwards angle of lever and
accelerator pedal, the lowering speed
can be controlled by tilt forwards angle
of the lever.
Steering wheel [16]
The steering hand-wheel is
operated in the conventional manner,
that is, when the wheel is turn right, the
truck will turn to the right; when the
wheel is turned left, the truck will turn
the left. The steer wheels are located at
the rear of the truck. These cause the
rear of truck to swing out when a turn is
made.
Warning
This truck is provided with the
power steering, so heavy hand-wheel
operation is caused when the engine
comes to a stall. To put the power
steering in operation again, restart the
engine without delay.
Parking brake lever [17]
Pull the parking brake lever
backward to park, push it forward to
release, must pull the parking brake
lever backward before driver leaving
truck.
Forward reverse lever [18]
[Non-electric-switch]
F-forward N-neutral R-backward
Torque converter type truck have a
forward shift and a backward shift.
When shift must stop the truck first.
Caution
Do not fail to place the forward-reverse
lever in the neutral position before
starting the engine.
Choke line [19]
To pull out the choke line, the
engine will stop. Some of the model
Direction to driver
