25

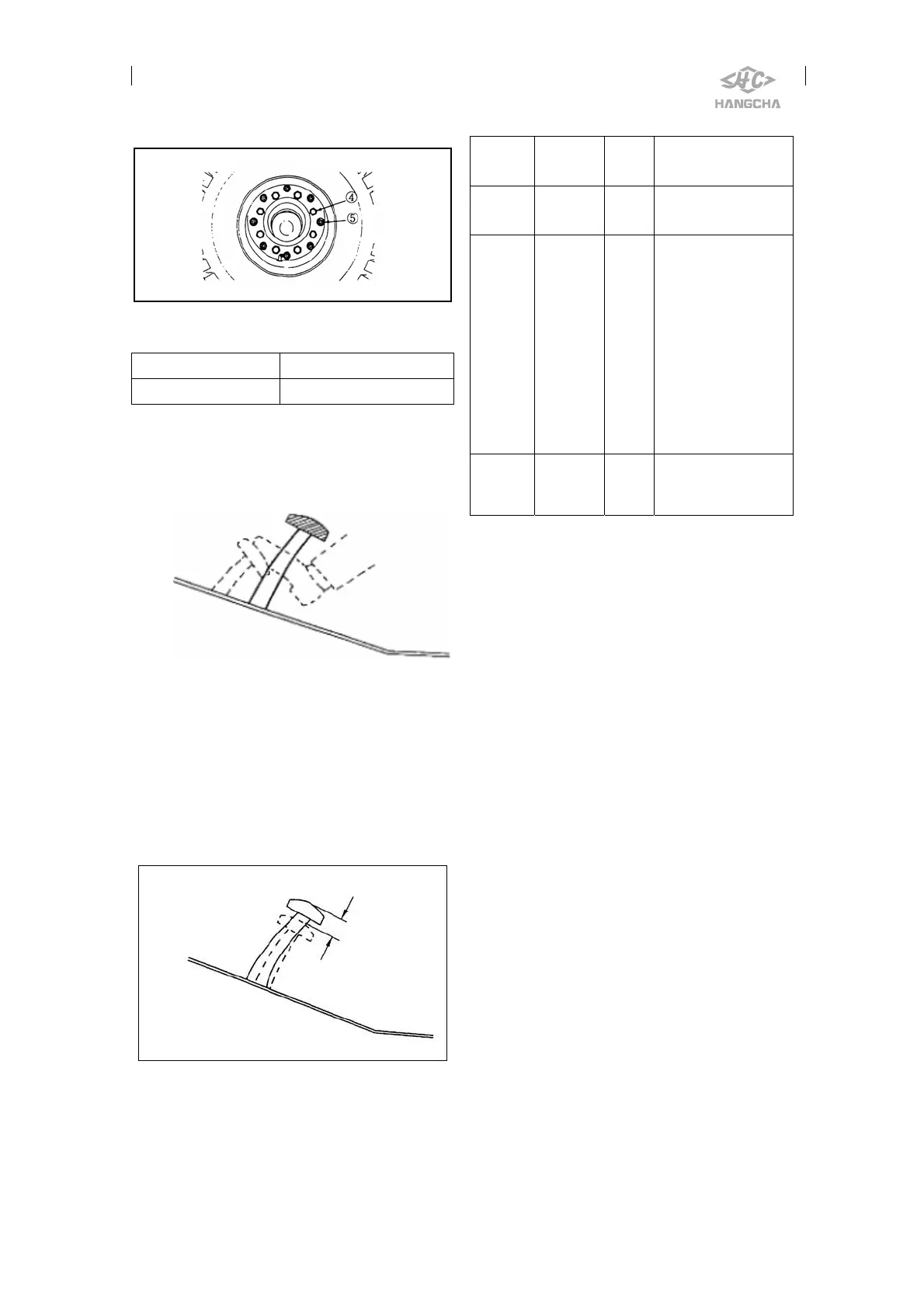

Turning wheel（rear wheel）
D. Rear hub nut
Specified torque N.m
1-3.5t
Hub nut 157-176
E. Divided rim bolt
11) Brake pedal, inching pedal and
clutch pedal check
Press the brake pedal fully when the
engine is running, the distance between
brake pedal and front soleplate should
be more than 60 mm.
Check the inching pedal and clutch
pedal through the same method.
Height and the free clearance H:
Free
height
Press
height
free clearance
Brake
pedal
120-130 ≥60 1-3
Inching
pedal
120-130 ≥60
touching bolt o
f
inching pedal
–
brake pedal:
①0.9-3.4mm
(NRW15A,QNR
W22A)
②0 mm(besides
NRW15A,QNR
W22A)
Clutch
pedal
120-130 ≥60 2-5
Notice :QN-RW22A is the shortening of
CPQD20/25/30/35N-RW22A、RW15A is
shorteningCPCD20/25/30/35N-RW15A.
Maintain monthly (180-200 hours)
Increase the below content base on
maintain per week.
1. Change engine oil and oil filter
1) Start the engine, warm-up enough, then
flameout.
2) Take out the oil cover and bottom shell
to plug, release the oil.
△
! Caution
Be careful about the hot oil.
·Milky oil shows there is some
cooling fluid in it, find out the reason and
revise.
·Oil is very rare show that the oil
contains gasoline.
3) Wipe up and fit tuck and gasket.
Screws down moment of oil tuck:
29～39 N·m
