10.3 LOG RECALL

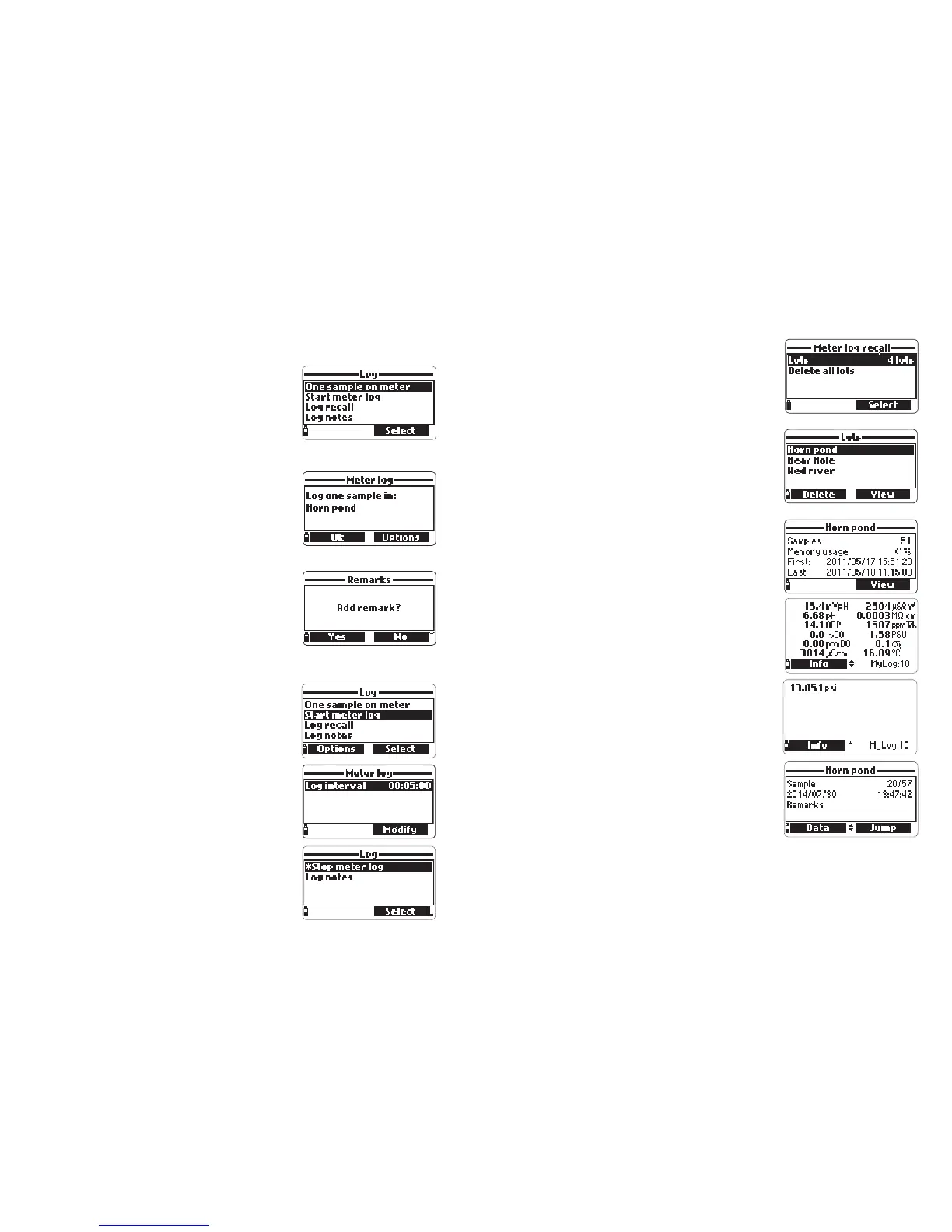

• Select “Meter log recall” to view logs that are stored
on the meter. The meter will show the number
of available lots. Select “Lots” to view or delete
individual lots.
• Use the arrow keys to select the desired lot and
then press View.
• The meter displays a summary of all data related
to the selected lot: number of samples, memory
space used, time and date of the first and last readings.
• Press View to display the sample details for each
point. Use the arrow keys to change the sample
number in the selected lot. The sample number is
shown on the bottom right corner of the display.
Note Details are available only for the enabled
parameters.
• Press Info to see record information for the current
sample (time & date, remark or serial number (if
available).)
• Press Data to return to the previous screen or
Jump to select a different sample in the same lot.
When Jump is pressed, a text box appears to insert
the desired sample number.
• Press ESC to return to the menu.
• Choose “Plot” and the meter will create a list with
all available parameters that can be plotted.
• Use the arrow keys to select the desired parameter.
Press Select to view the graph.
10.2.1 One Sample On Meter
Use this option to log one set of enabled measurement parameters to the meter
memory.
• If there are no lots saved on the meter, press
New to create a new lot. Use the keypad to enter
the desired lot name and press Accept to confirm.
Press OK to log the sample in the selected lot.
• If there are existing lots on the meter, the meter
will suggest a lot to store the sample. Press OK
to use the selected lot or Options to select a
different lot. This will add the new sample data
to an existing lot. A new lot can also be created
by pressing New. Press OK to log the sample in
the selected lot.
• On the “Remarks” window, select Yes to go to
the Remarks screen. Press No to skip this
option. If Yes is selected, select a remark from
the list, or press New to create a new remark.
• To return to the measurement screen, press ESC.
10.2.2 Continuous Meter Log
• Select “Start meter log” to log the currently enabled
parameters at the set logging interval on the
meter.
• To set the logging interval, highlight “Start meter
log” and press Options. The log interval time
can set from 1 second to 3 hours. Press Modify
and use the arrow keys and keypad to enter the
desired log interval. Press Accept to confirm.
• Press Select to edit the lot, remark, or tag, see
section 11.4.
• To stop the meter log, enter the log menu and
select “Stop meter log”.
