52

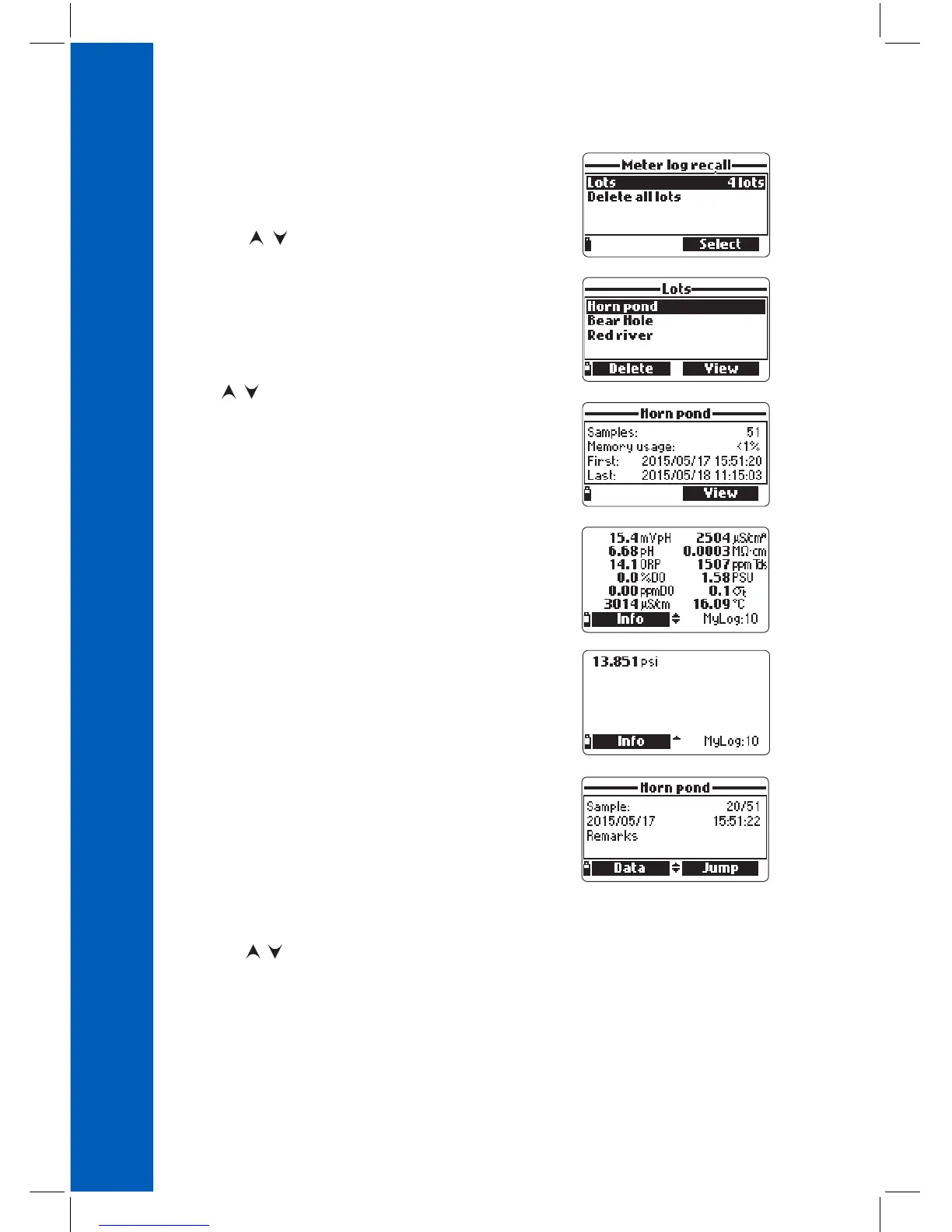

• Select “Meter log recall” to view logs that are stored on the
meter. The meter will show the number of available lots. Select
“Lots” to view or delete individual lots.
• Use the / keys to select the desired lot and then press
View.
• The meter displays a summary of all data related to the selected
lot: number of samples, memory space used, time and date of
the first and last readings.
• Press View to display the sample details for each point. Use
the / keys to change the sample number in the selected
lot. The sample number is shown on the bottom right corner of
the display.
Notes: The values displayed for D.O. concentration,
compensated conductivity and TDS are dependent on the
coefficients defined in Parameter Coefficients in Setup
menu (EC Reference Temperature, EC Temperature
Coefficient, TDS factor and Salinity).
If parameter units or coefficients are altered, stored
logs on this meter will be altered reflecting these
changes. Save logs to a PC before altering parameters
or coefficients.
Details are available only for the enabled parameters.
• Press Info to see record information for the current sample
(time & date, remark or serial number (if available)).
• Press Data to return to the previous screen or Jump to select
a different sample in the same lot. When Jump is pressed, a
text box appears to insert the desired sample number.
• Press ESC to return to the menu.
• Choose “Plot” and the meter will create a list with all available parameters that can be plotted.
• Use the / keys to select the desired parameter. Press Select to view the graph.
LOG RECALL
