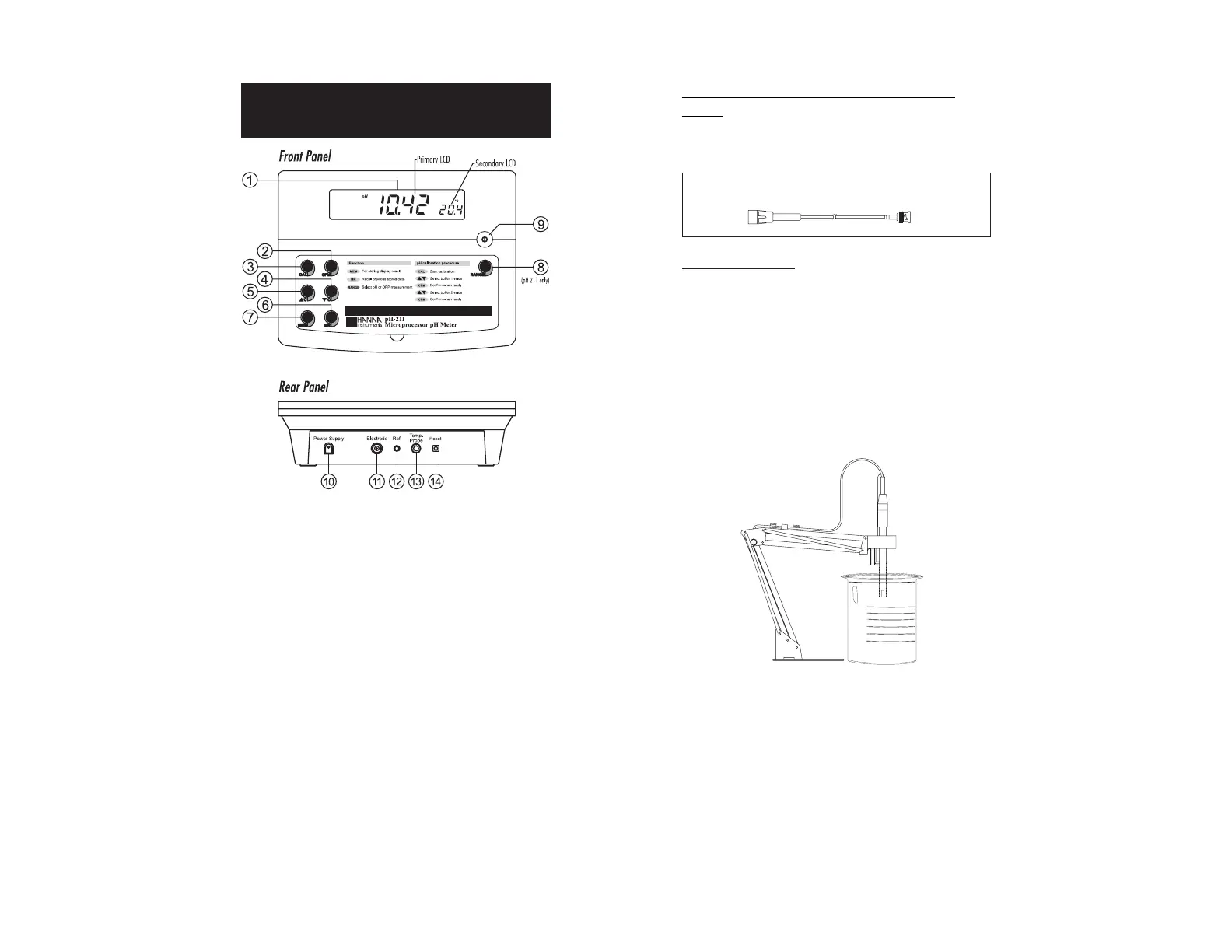

1) Liquid Crystal Display (LCD)
2)
CFM key, to confirm calibration values
3) CAL key, to enter or exit calibration mode
4) WC key, to manually decrease temperature or select pH buffer
5) VC key, to manually increase temperature or select pH buffer
6) MR key, to recall the stored value
7) MEM key, to store a value in memory
8) RANGE key, to select measurement range (pH 211 only)
9) ON/OFF switch
10) Power adapter socket
11) BNC electrode connector
12) Electrode reference socket
13)
Temperature probe socket
14) RESET button
29
Extension cables for screw-type electrodes (screw to BNC
adapter)
HI 7855/1 Extension cable 1m (3.3') long
HI 7855/3 Extension cable 3m (9.9') long
OO
OO
O
THER ACCESSORIESTHER ACCESSORIES
THER ACCESSORIESTHER ACCESSORIES
THER ACCESSORIES
HI 710005 Voltage adapter from 115 VAC to 12 VDC (USA plug)
HI 710006 Voltage adapter from 230 VAC to 12 VDC (European
plug)
HI 710012 Voltage adapter from 240 VAC to 12 VDC (UK plug)
HI 710013 Voltage adapter from 230 VAC to 12 VDC (South
Africa plug)
HI 710014 Voltage adapter from 230 VAC to 12 VDC (Australia
plug)
ChecktempC Pocket-size thermometer (range -50.0 to 150.0C)
HI 76405 Electrode holder
HI 8427 pH and ORP electrode simulator with 1 m (3.3')
coaxial cable ending in female BNC connectors
HI 931001 pH and ORP electrode simulator with LCD and 1 m
(3.3') coaxial cable ending in female BNC connectors
HI 7669/2W Temp. probe with 1 m (3.3') cable
HI 92000 Windows
®
compatible software
HI 920010 9 to 9-pin RS232 cable
CONNECT TO
SCREW TYPE
ELECTRODES
CONNECT TO THE
BNC SOCKET
OF THE METER
HI 7855 SERIES CABLE CONNECTORS
CONNECTOR AND 3.0 mm (0.12") CABLE WITH BNC
Windows
®
is registered Trademark of "Microsoft Co."
