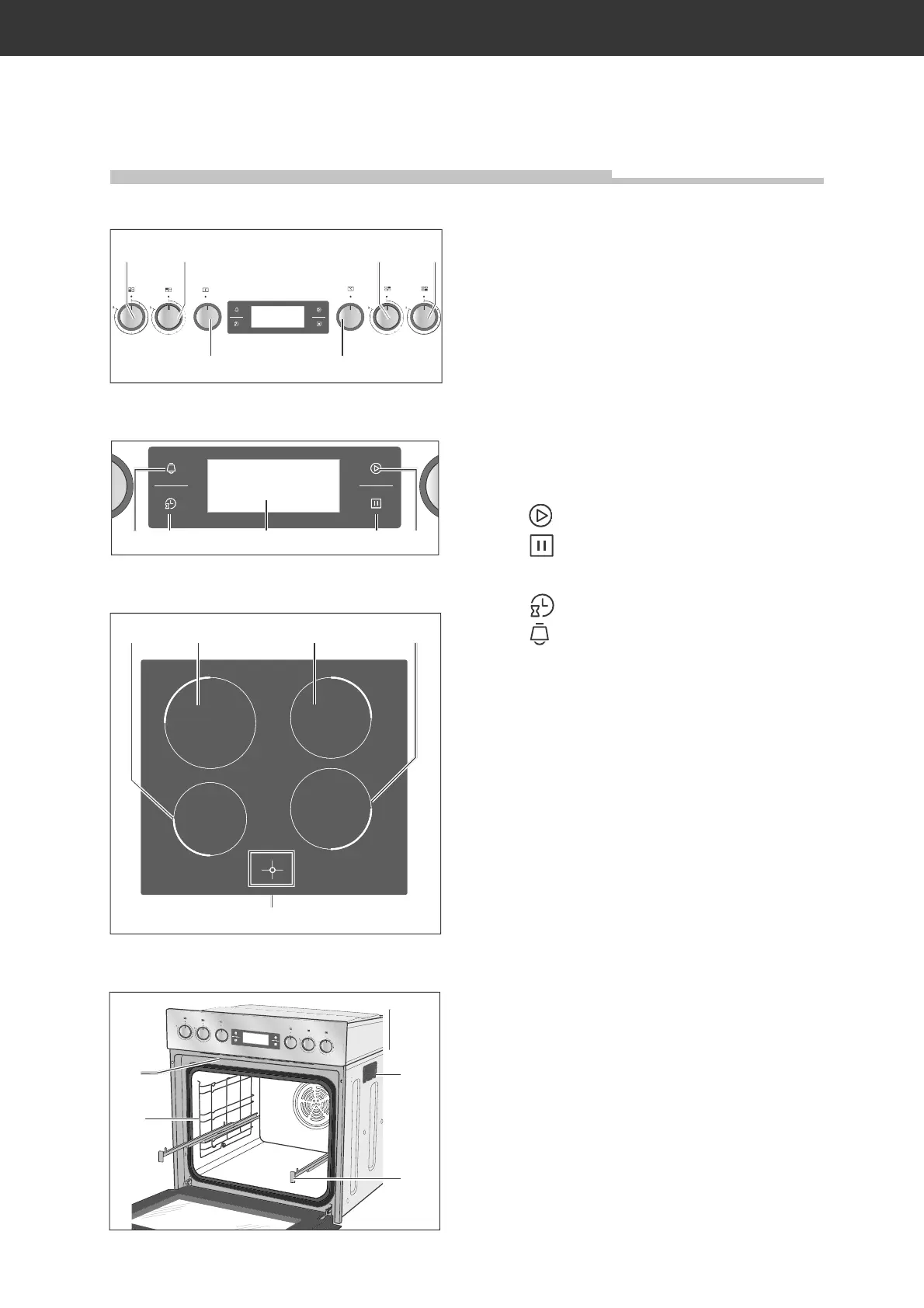

Operational controls and appliance parts
Control panel
(10) Temperature controller
for the front left cooking zone
(11) Temperature controller
for the back left cooking zone
(12) Temperature controller
for the back right cooking zone
(13) Temperature controller
for the front right cooking zone
(14) Temperature controller
for the oven
(15)
Start
(16)
Pause/End
(17) Display/Clock
(18)
Setting the time
(19)
Countdown timer
(20) Function dial for the oven
Hob
(21) Front left cooking zone, Ø 16.0 cm
(22) Back left cooking zone, Ø 21.0 cm
(23) Back right cooking zone, Ø 18.0 cm
(24) Front right cooking zone, Ø 18.0 cm
(25) Four residual heat indicators
Oven
(26) Carry handles on each side
(27) Telescopic oven rails
(28) Oven rack guides
(29) Extractor (ventilation)
(10) (11) (12) (13)
(14)(20)
(22)(21) (23) (24)
(25)
1
2
3
4
5
(26)
(27)
(28)
(29)
(17) (16) (15)(18)(19)
