ESL Access Point HS_C09851 PRODUCT MANUAL
Page 9 , Total 15

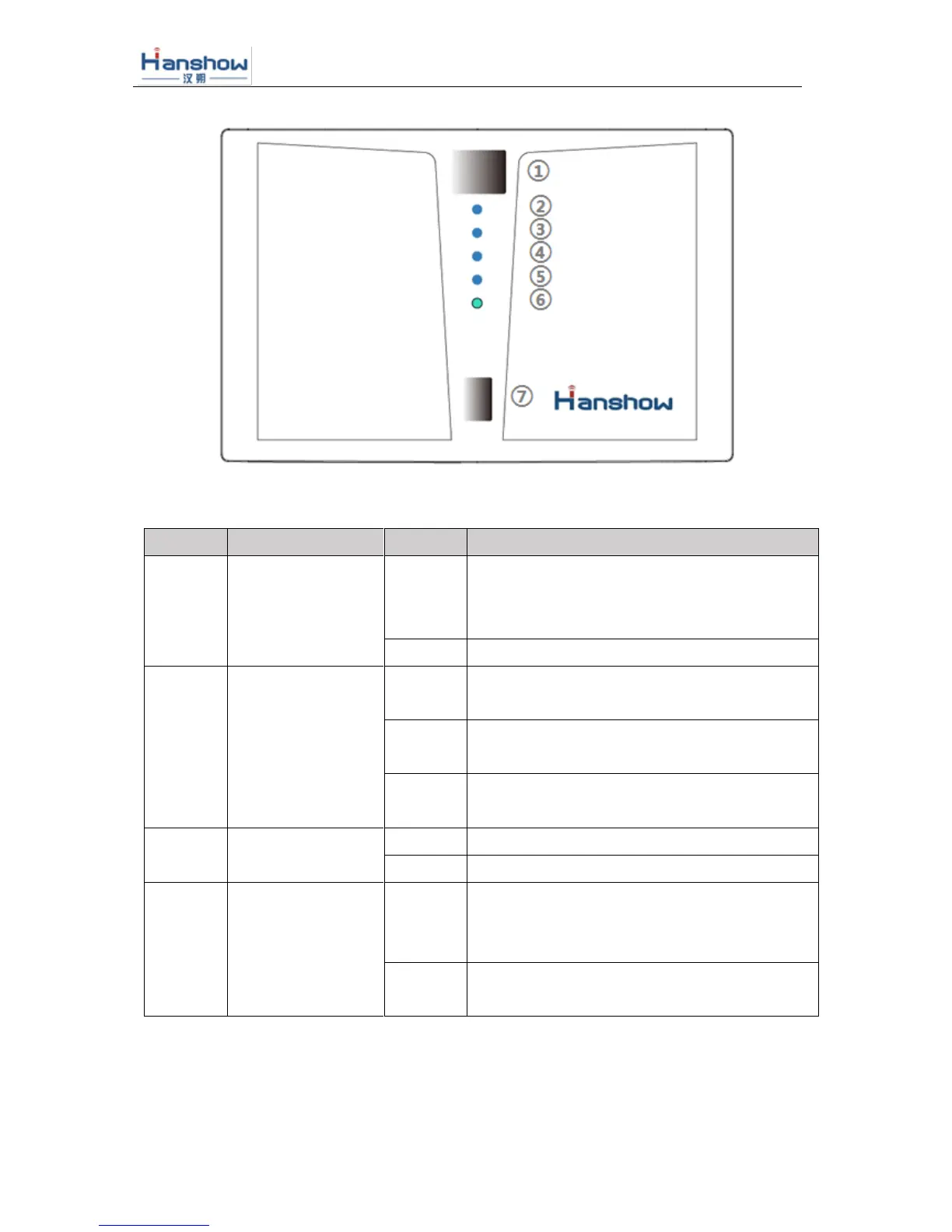

Figure 2-3 ESL Access Point front panel diagram
Table 2-2 ESL Access Point front panel
Number
Name
State
Meaning
1
Access Point serial
number displayer
On
The ESL Access Point is connected to esl-
working; the number displayed is the ID number
of the current ESL Access Point，range 1 – 99.
Off
The ESL Access Point is not connected
2,3,4,5
RF module indicator
On
The corresponding radio module is in the receive
data state
Off
The corresponding radio module is in the idle
state
Flicker
The corresponding RF module is in the data
transmission state
6
Power Indicator
On
Power on
Off
Power off
7
Access Point status
indicator
On
The ESL Access Point is abnormal. The
displayed number is the corresponding error
code (see error code meaning)
Off
The ESL Access Point system is operating
normally
