Basic Operation
DSO5000P Series Digital Storage Oscilloscope User Manual 32
5.5 Menu and Option Buttons

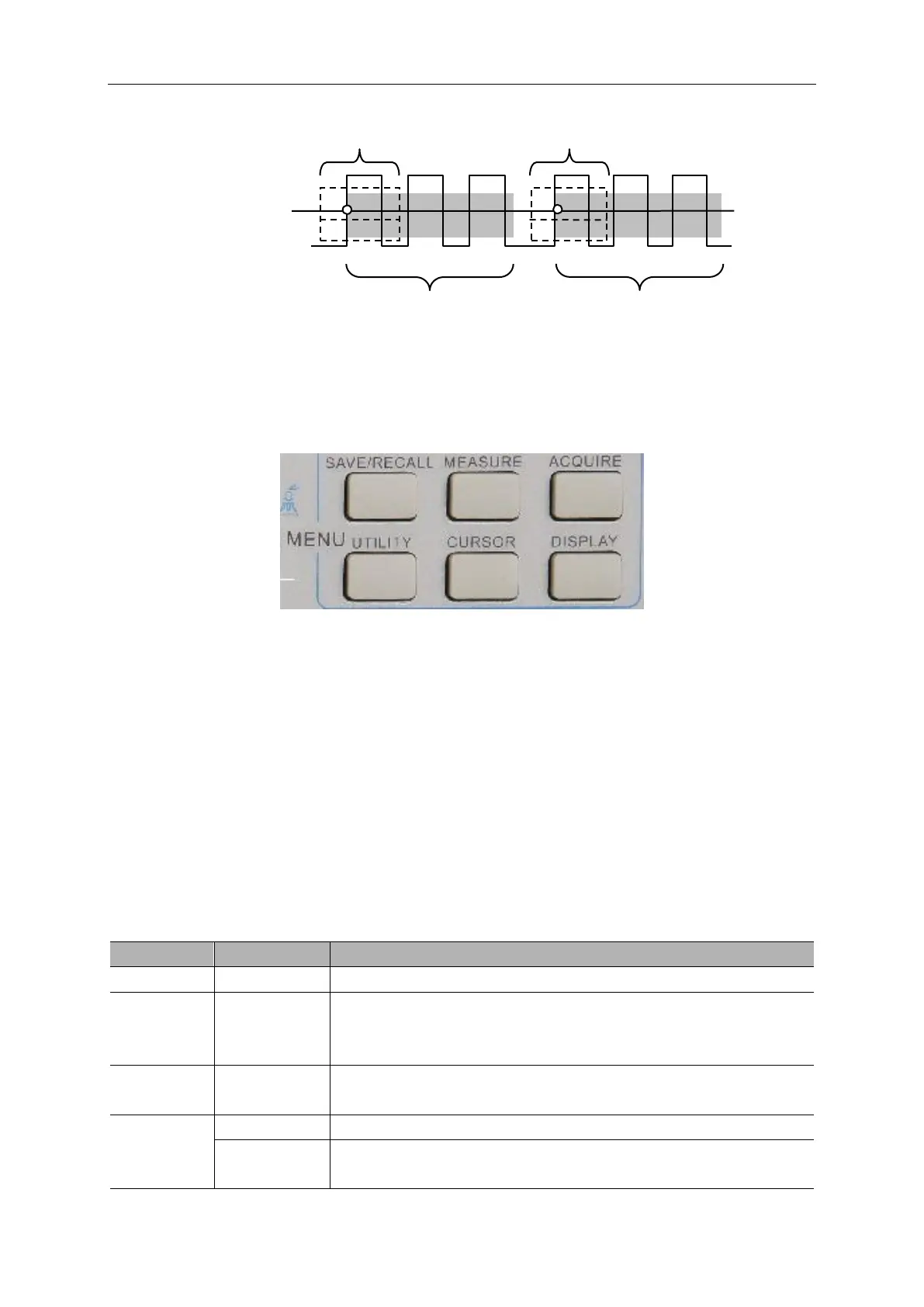

As shown below, these six buttons at the top of the front panel are used mainly to recall relative
setup menus.
SAVE/RECALL: Displays the Save/Recall menu for setups and waveforms.
MEASURE: Displays the Measure menu.
ACQUIRE: Displays the Acquire menu.
UTIILITY: Displays the Utility menu.
CURSOR: Displays the Cursor menu.
DISPLAY: Displays the Display menu.
5.5.1 Save/Recall
Press the SAVE/RECALL button to save or recall oscilloscope setups or waveforms.
The first page shows the following menu.
Select a waveform display to store.
Select the reference location to store or recall a waveform.
Save the source waveform to the selected reference location.
Display or remove the reference waveform on the screen.
To Next Page
