65
Press [Done] or [Cancel] to end the input.

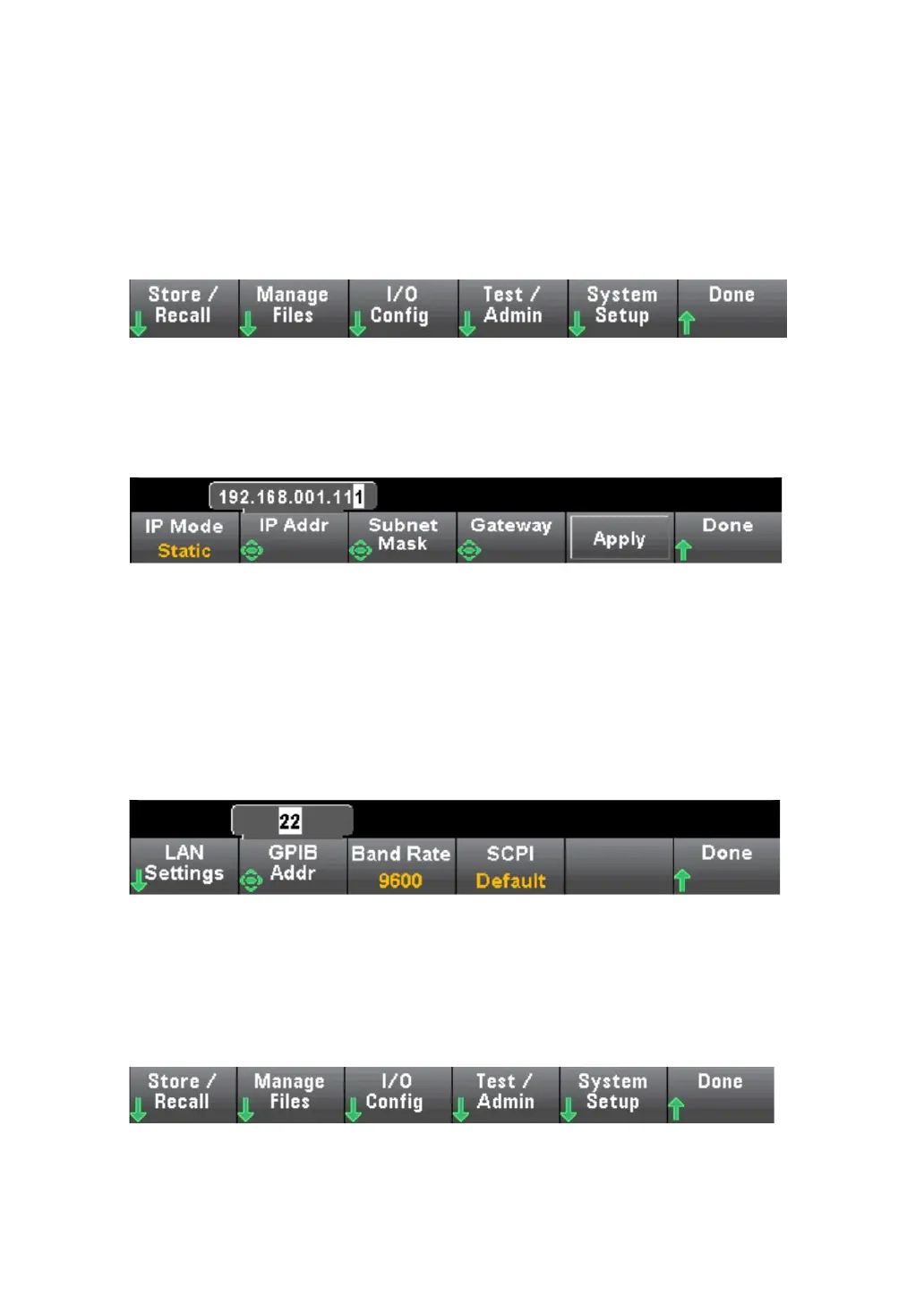

Utility menu - I/O configuration
I/O Config is used to configure the I/O parameters for remote operation over a
LAN, GPIB(optional) interfaces.
LAN RESET resets the LAN with its current settings and enables DHCP and
MDNs.
LAN Settings
LAN Settings opens the menu shown below.
After enabling or disabling one or more services, press Apply. You must then turn the
power off and back on for the new Settings to take effect.
GPIB Settings(optional)
GPIB Settings allows you to set the instrument's GPIB interface.
You can also set the GPIB address to any value from 2 to 30.
Utility menu - Test/Admin
Test/Admin can be used to access self-check, calibration, and
administration functions:
The Self - Test (Self)
To Next Page
