6 7

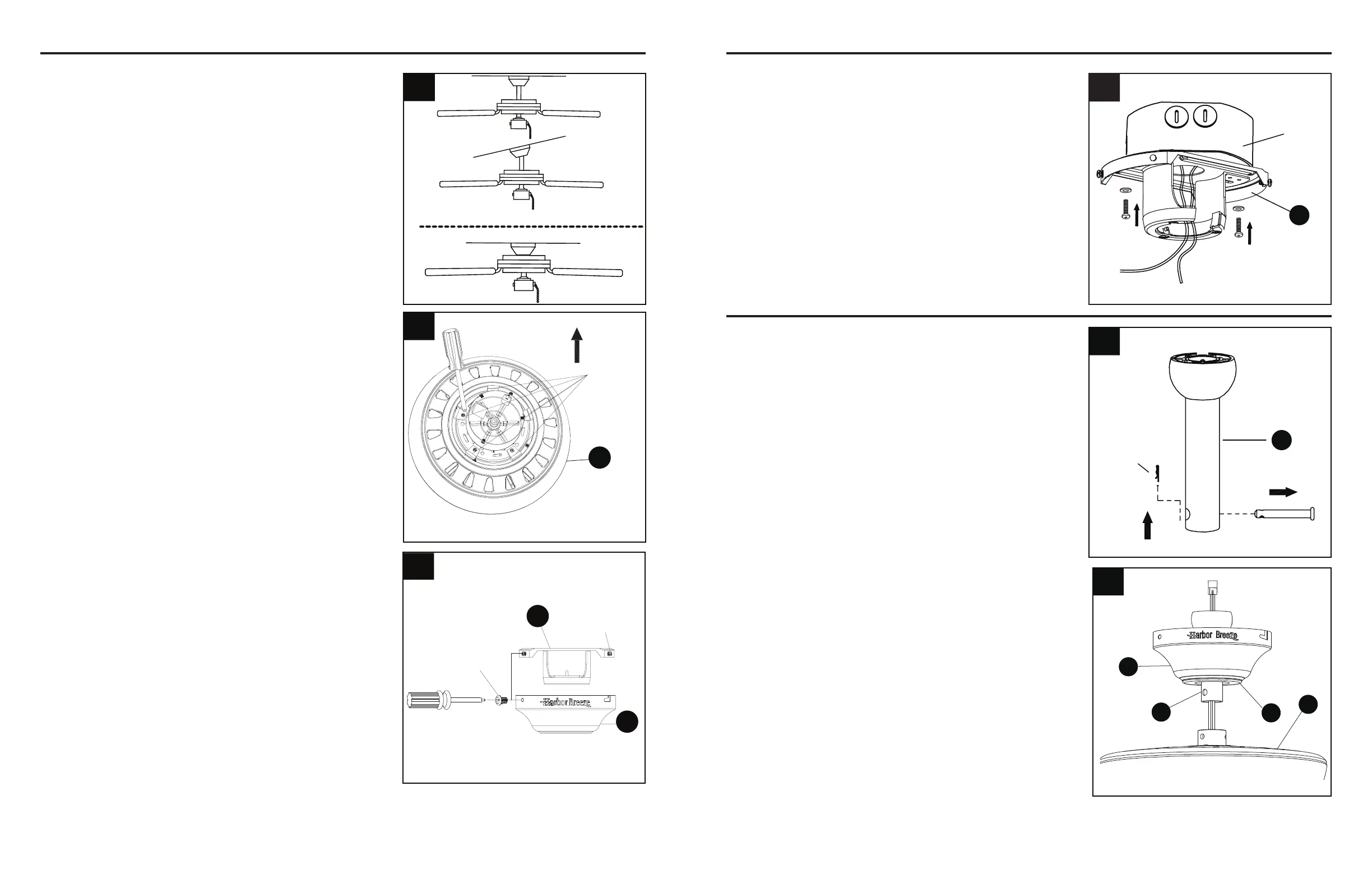

ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS
1. Determine mounting method to use.
A - Downrod Mount (normal or angled ceiling)
B - Closemount (normal ceiling only)
Important: lf using the angle mount, check to
make sure the ceiling angle is not steeper than 20°.
4. Install the mounting bracket (A) to the outlet box
(not included) using the two screws provided
with the outlet box. Securely tighten the two
screws.
2.Removeanddiscardtheverubberinsertsand
vemountingscrewsfromtheundersideofthe
motor assembly (E).
2a. STANDARD DOWNROD INSTALLATION:
Insert downrod assembly (D) through canopy
(B) and canopy cover (C). Thread wires from
the motor assembly (E) through downrod
assembly (D).
Outlet box
A
4
3. Remove the mounting bracket (A) from the canopy
(B) by loosening the four screws on the top of the
canopy (B). Remove the two non-slotted screws and
save.
1
A
B
A
B
Loosen but
do not remove
Remove
and save
3
If using the angle mount, make sure open end of
mounting bracket (A) is installed facing the ceiling.
Follow mounting instructions for Downrod Style
Fan Mounting on page 7 or Closemount Style
Fan Mounting on page 9, depending on mounting
method (A or B) chosen in step 1 on page 6.
DOWNROD STYLE FAN MOUNTING
1. Remove pin and clip from downrod assembly
(D) and save.
2a
C
B
D
E
Rubber
insert
and screw
E
2
1
Clip
Pin
D
To Next Page
