E
2
8 9

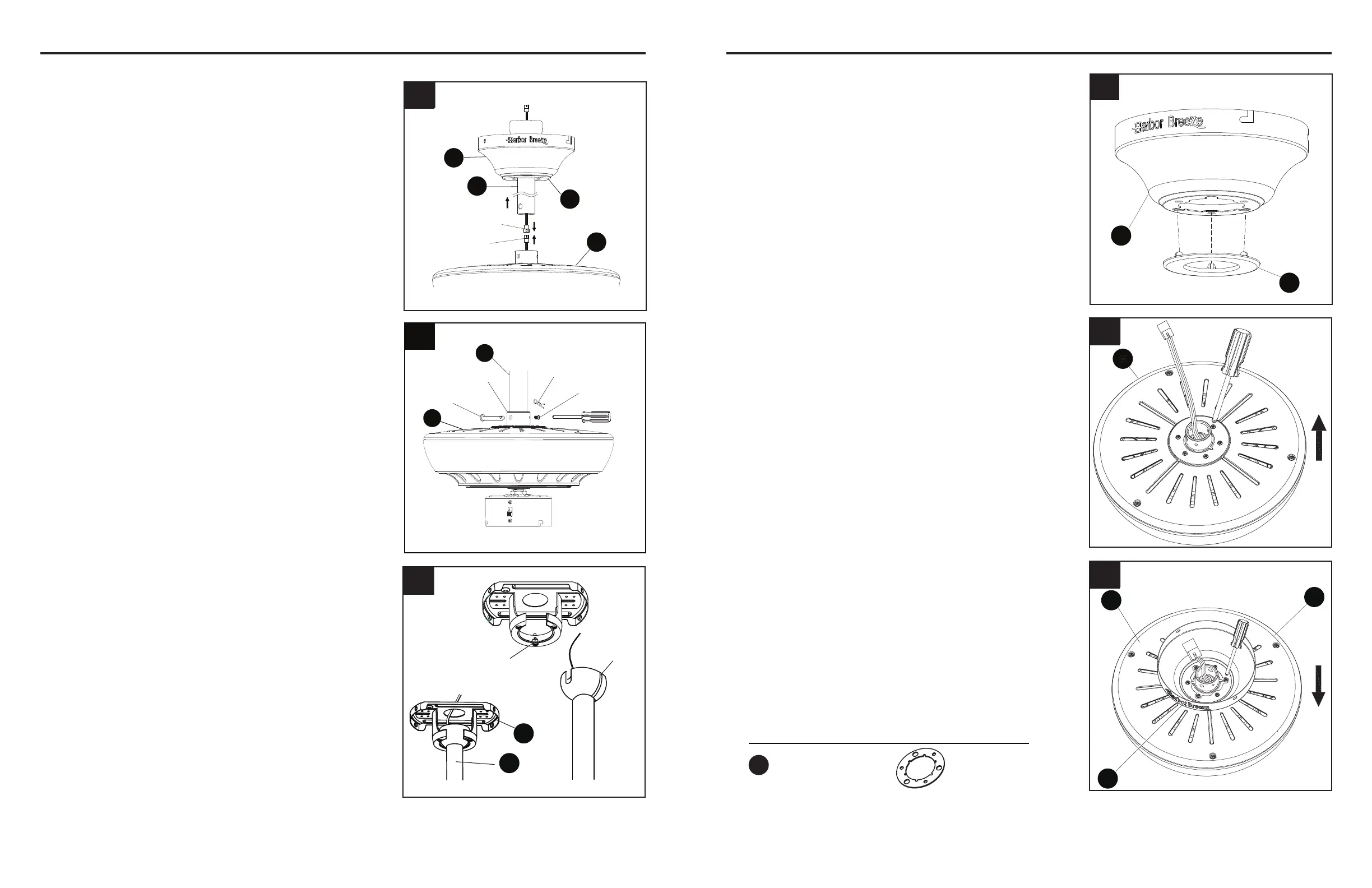

DOWNROD STYLE FAN MOUNTING CLOSEMOUNT STYLE FAN MOUNTING
2b. EXTENDED DOWNROD INSTALLATION: If you
are installing the fan with a longer downrod (sold
separately), insert it through the canopy (B) and
canopy cover (C). Then, thread lead wire (N)
through the downrod, and connect the MALE
plug from the top of motor assembly (E) to the
FEMALE plug from the lead wire (N).
Note: The male plug of the lead wire (N) should
extend out of the other end of the downrod.
Note: The remainder of the instructions will reference
downrod assembly (D), but note all of the
instructions are applicable even if an accessory
downrod was used.
2. Remove every other screw -- for a total of three
screws -- from the top of the motor assembly
(E) and save.
3. Loosen the two set screws from the yoke of
motor assembly (E). Slip downrod assembly (D)
into yoke, aligning holes in downrod assembly
(D) and yoke. Insert the pin through yoke and
downrod assembly (D), then insert clip into pin
until it snaps into place. Tighten set screws.
3. Place the rubber gasket (DD) over the
remaining screws on motor assembly (E). Pull
wires through hole in canopy (B), and attach
canopy (B) to motor assembly (E) using the
three screws removed in previous step. Tighten
the screws securely.
4. Install hanger ball on the top of downrod
assembly (D) into mounting bracket (A)
opening. Rotate fan until slot on hanger ball
engages the tab on the mounting bracket (A).
DANGER: Be careful when aligning the tab to the
slot! If not fully engaged, there is a possibility of fan
falling, which may result in serious injury or death.
B
C
1
4
You may now proceed to WIRING page 10.
3
Clip
Pin
Set screw
Yoke
E
D
2b
C
B
D
E
Female Plug
Male Plug
B
E
DD
3
Hardware Used
DD
Rubber gasket
x 1
1. Remove the canopy cover (C) from the
bottom of the canopy (B).
Tab
Slot
A
D
To Next Page
