7
B
INITIAL INSTALLATION

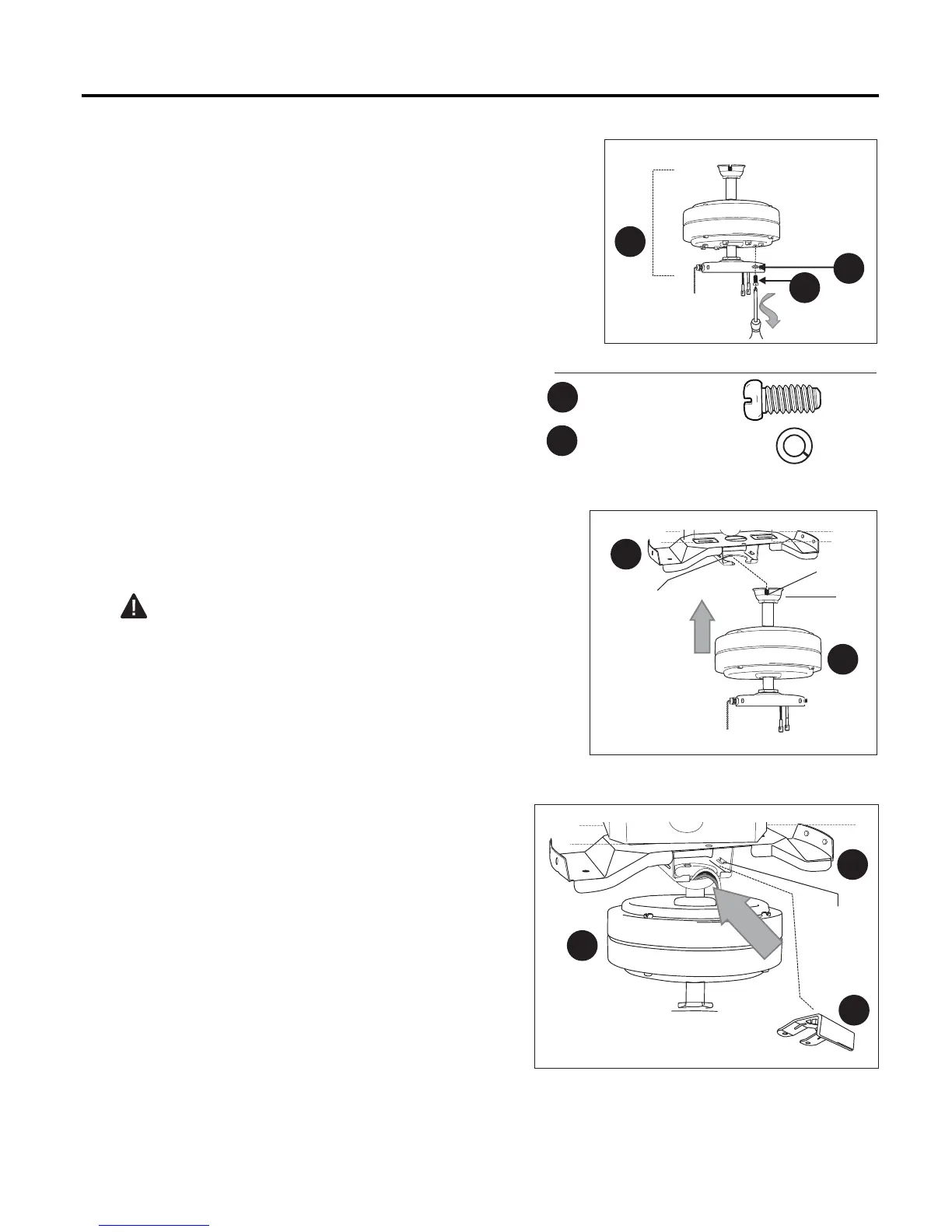

4. Remove motor screws (AA) and lock
washers (CC) from underside of motor--save
to attach blade arms (G) later on. If there are
also plastic motor blocks, discard them at
this time. (Fig. 4)
Motor
D
CC
AA
Fig. 4
CC
AA
Motor Screw x 10
Hardware Used
5.4 M/M Lock Washer x 10
D
K
Fig. 5
Fig. 6
5. Install ball end of motor assembly (D) into
mounting bracket (B) opening. Align slot in ball
with tab in mounting bracket (A). (Fig. 5)
DANGER: Failure to align slot in ball with
tab in mounting bracket (B) may result in serious
injury or death.
6. To ensure the safety of the installation and to
prevent the motor assembly (D) from becoming
or coming loose, use the plastic lock tab (K).
Slide plastic lock tab (K) under bracket tabs so
that it will snap into place. (Fig. 6)
IMPORTANT: Keep in mind that it will require
some force to fully insert the plastic lock tab
(K) so that it does not move or come out
once in the correct position.
Bracket
Tab
B
Tab
D
Ball
Slot
To Next Page
