DOWNROD STYLE FAN MOUNTING
Depending on the length of downrod (A) you
use, you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested that you do so in the
following manner:
Take the lead wires and make sure that you
have pulled them all the way through the top of
the downrod (A). Start at the TOP of the ball on
the downrod (A) and measure 8 in. of lead wire,
and then cut the excess wire off with wire cutters
(not included). (Fig. 4)
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
4.
2.

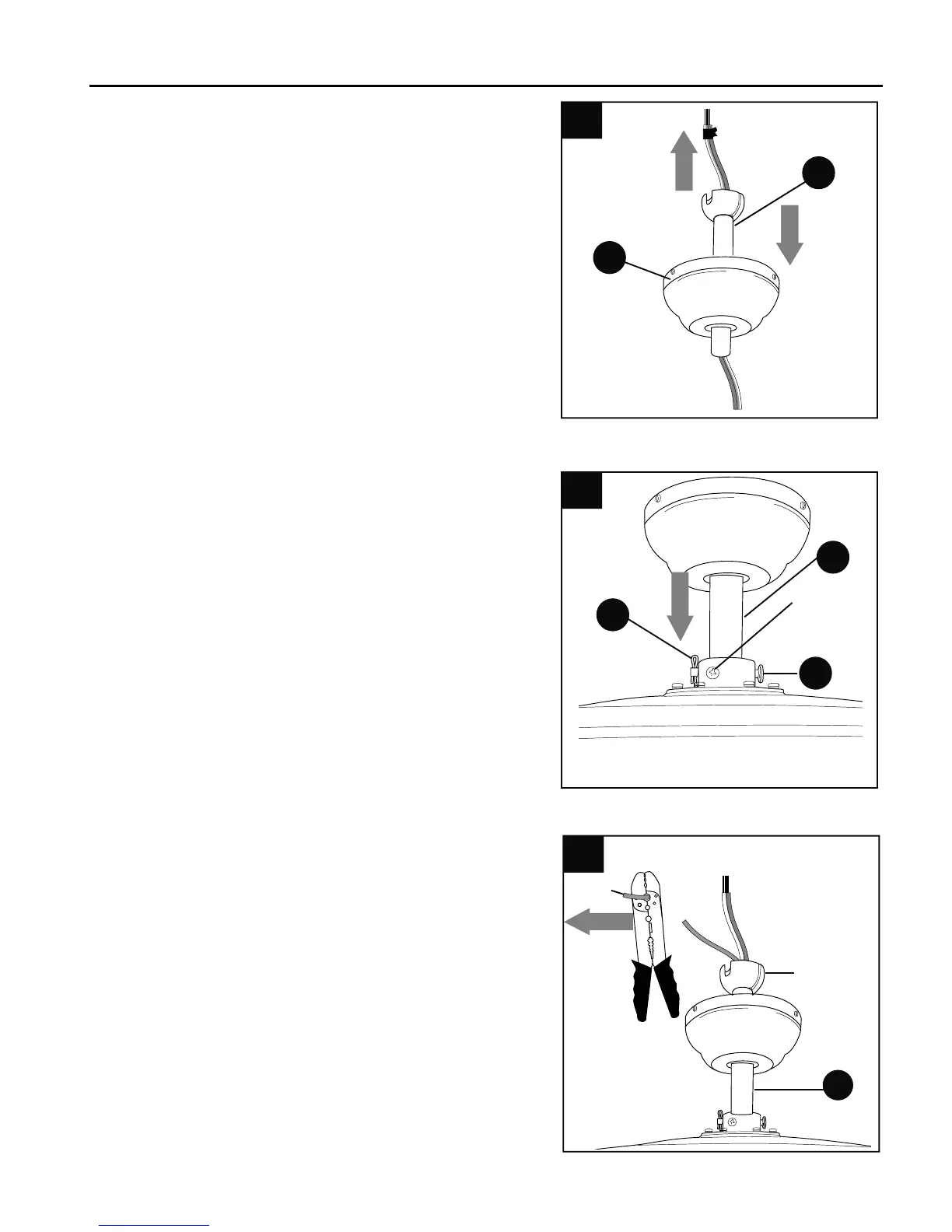

Insert downrod (A) through canopy (B). Thread
wires from motor housing (D) through downrod
(A). (Fig. 2)
3.
Slip downrod (A) into motor housing yoke, align
holes and re-install pin (Q) and clip (R).
Re-tighten set screws in motor housing yoke
and then tighten nuts. (Fig. 3)
B
A
2
Set
Screw
A
3
4
Ball
A
9
To Next Page
