INITIAL INSTALLATION
7
Lowes.com/harborbreeze

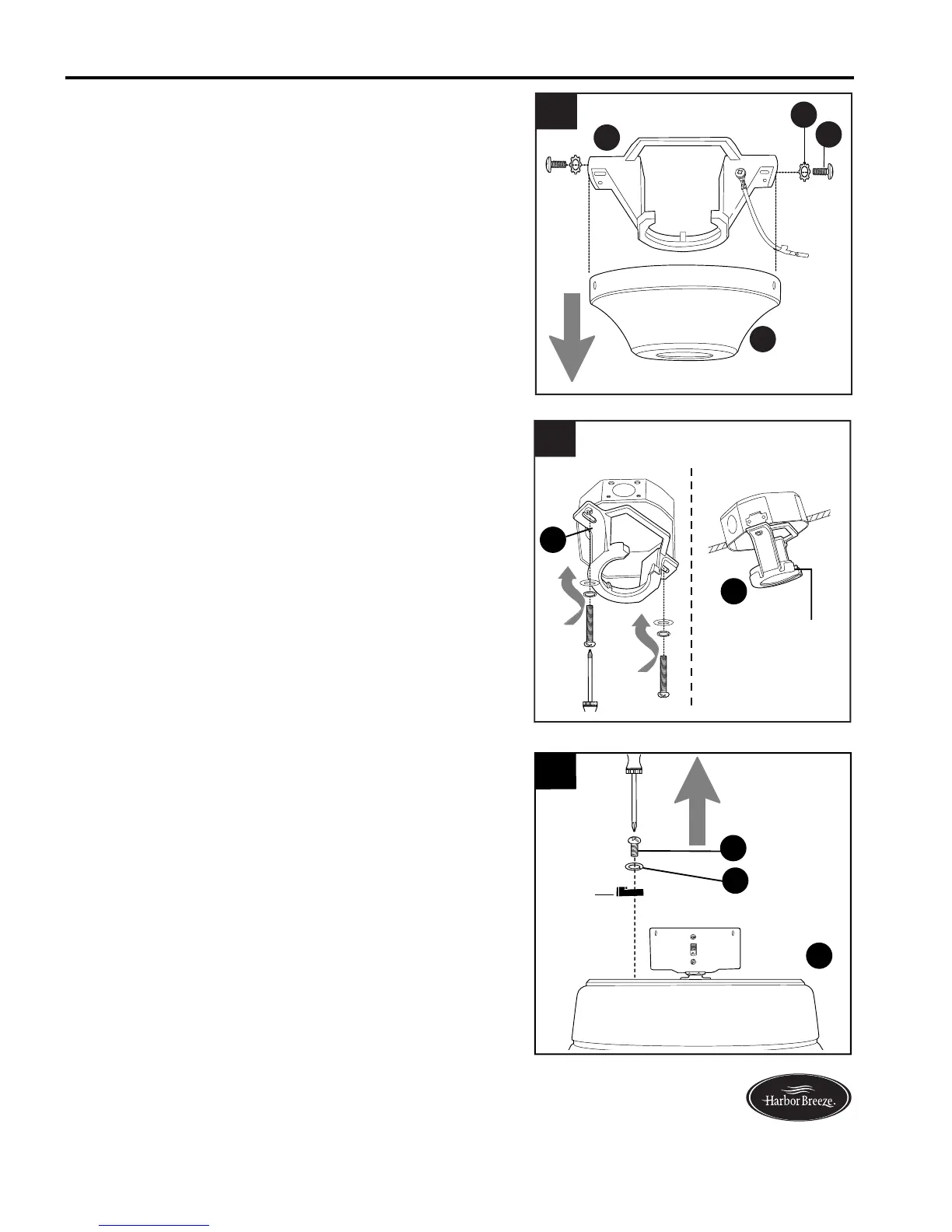

4a.
Loosen canopy mounting screws (Z) in slotted
holes of canopy (B) and remove the other two
canopy mounting screws (Z) and star washers
(Y). Save for later use.
Remove mounting bracket (C) from canopy (B).
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
IMPORTANT: If using the angle mount, make
sure open end of mounting bracket (C) is
installed facing the higher point of the ceiling,
and ensure the ceiling angle is not steeper than
19º.
4b.
4b
4a
C
Z
B
Y
Open End
C
C
ANGLE
MOUNT
STANDARD
MOUNT
5.
Remove preassembled motor screws (S) and
washers (T) from underside of motor housing (D). If
there are plastic motor blocks installed with the
motor screws (S), discard the plastic motor blocks.
Note: Make sure to keep loose hardware separate
to avoid confusion during installation.
For DOWNROD-STYLE FAN MOUNTING,
proceed to step 1 on the next page.
For CLOSEMOUNT-STYLE FAN MOUNTING,
skip to page 10.
5
S
T
D
Plastic
Motor
Block
To Next Page
