8
Lowes.com/harborbreeze

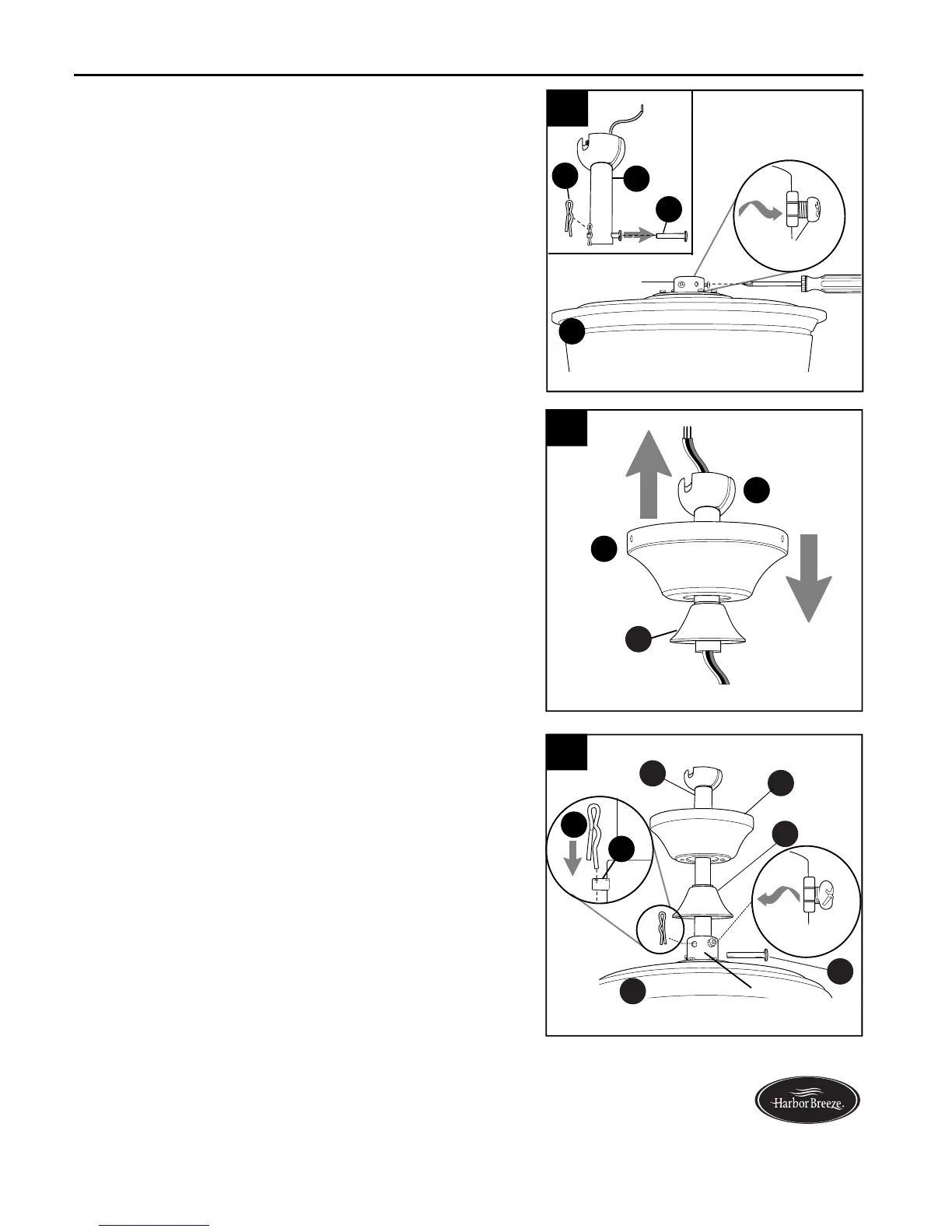

DOWNROD-STYLE FAN MOUNTING
Remove pin (W) and clip (X) from downrod (A).
Partially loosen preassembled set screws and nuts
in motor housing yoke at top of motor housing (D).
1.
1
X
D
W
A
Yoke
Set Screw
and Nut
Sideview
2.
Insert downrod (A) through canopy (B) and yoke
cover (E). Then, thread wires from motor
housing (D) up through downrod (A).
2
B
A
3.
Slip downrod (A) into yoke, align holes and
re-install pin (W) and clip (X). Tighten set screws
and then tighten nuts. Slide yoke cover (E) down
until it rests on top of motor housing (D).
E
D
A
W
E
B
3
X
W
Set Screw
and Nut
Sideview
Yoke
To Next Page
