9
Lowes.com/harborbreeze

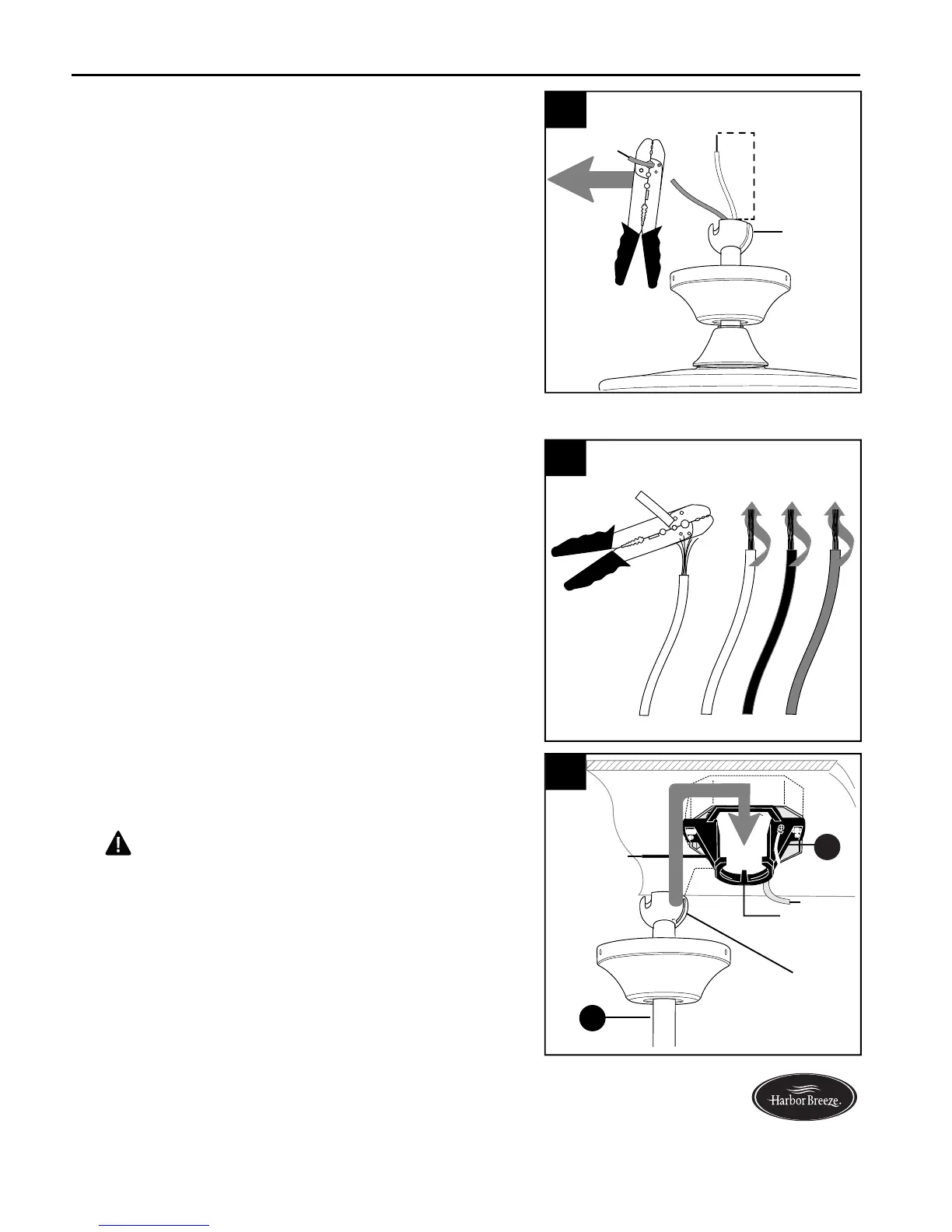

DOWNROD-STYLE FAN MOUNTING
Depending on the length of downrod you use,
you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested you do so in the
following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod. Start at the TOP of the hanging ball on
the downrod and measure 8 in. of lead wire, and
then cut the excess wire off with wire cutters (not
included).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
4.
Hanging
Ball
4
8 in.
6.
If you decided to cut back the lead wires in Step 4,
strip 1/2 in. of insulation from end of each
wire -- white, black, green and blue (if applicable).
Twist stripped ends of each strand of wire within
the insulation with pliers (not included).
5.
5
Install hanging ball of downrod (A) into opening of
mounting bracket (C). Align one of the slots in
hanging ball with tab in mounting bracket (C).
DANGER: Failure to align one of the slots in
the ball with the tab may result in serious injury or
death.
Hanging
Ball Slot
A
6
Tab
C
To Next Page
