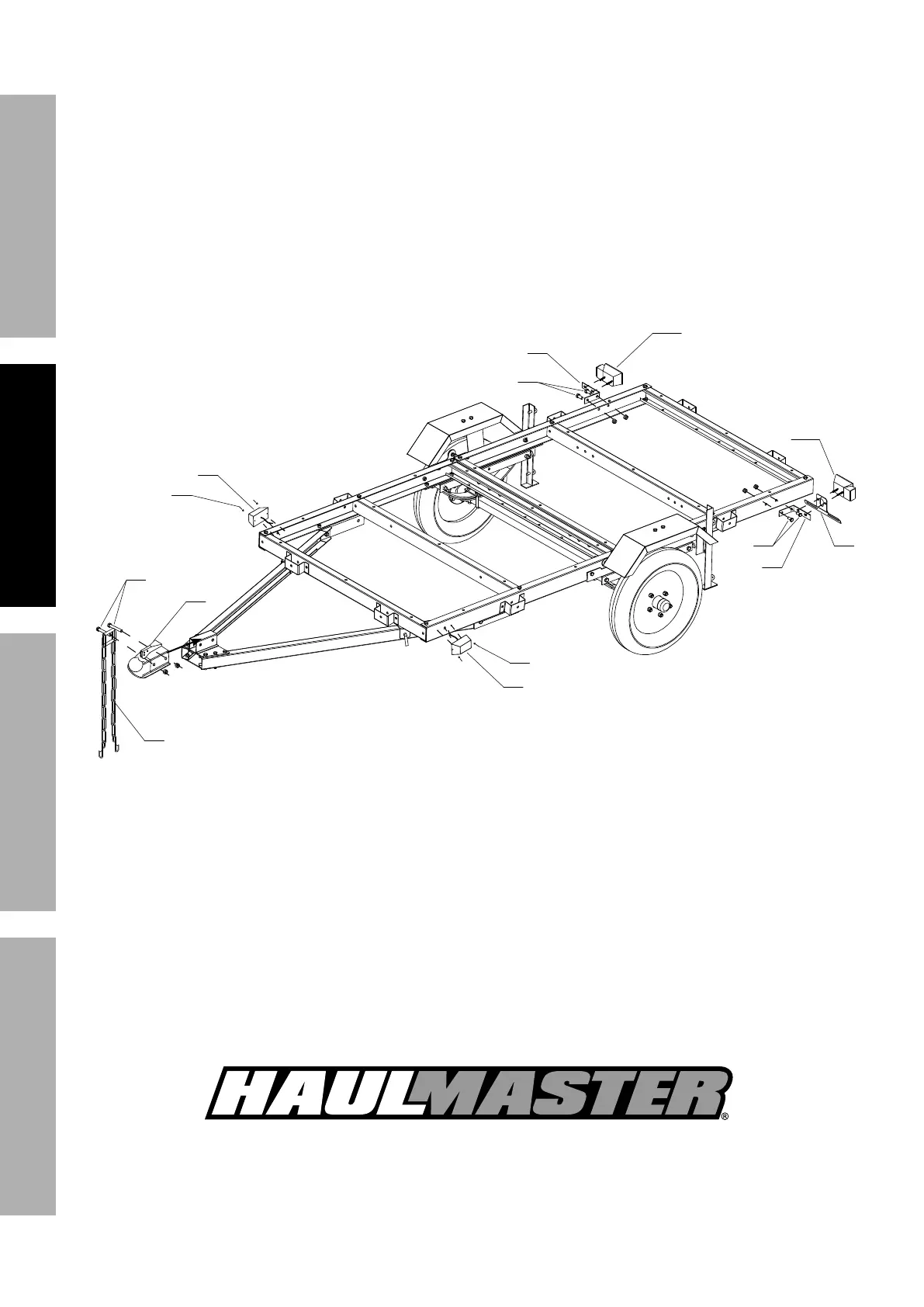

29. R"$.%,##"#$,84*=%$'(8%$.*%,##*5+7U%("3.$%#"9*%'/1
30. Attach Coupler (2) to Coupler Base, using 2 sets of
Bolts M12 x 75 and Nuts M12 (20).
R.*8%"8#$,77"83%$.*%2(&8$%P&7$=%$.(*,9%"$%
$.(&'3.%$.*%4*8$*(%7"8[%&2%$.*%E,2*$U%O.,"8%_>`%
$&%#*4'(*%O.,"8%$&%"8#"9*%&2%O&'/7*(1%
31. Lock the Coupler Trigger, using its
Locking Pin and R-Clip.
32. Attach Light Brackets (33) to Rear Side Rails using
four sets of Bolts M10 x 20 and Nuts M10 (44).
33. Remove nuts from back of Right Tail Light (30R).
Attach Right Tail Light to Right Light Bracket, secure
with nuts.
34. Remove nuts from back of Left Tail Light (30L).
Attach License Plate Bracket (29), along with
Left Tail Light, to Left Light Bracket, secure with
nuts.
35. Run wires on back of Side Running Lights (38)
through center holes at the front ends of
Side Rails. Attach Side Running Lights
using Screws and Nuts (46).
\\
