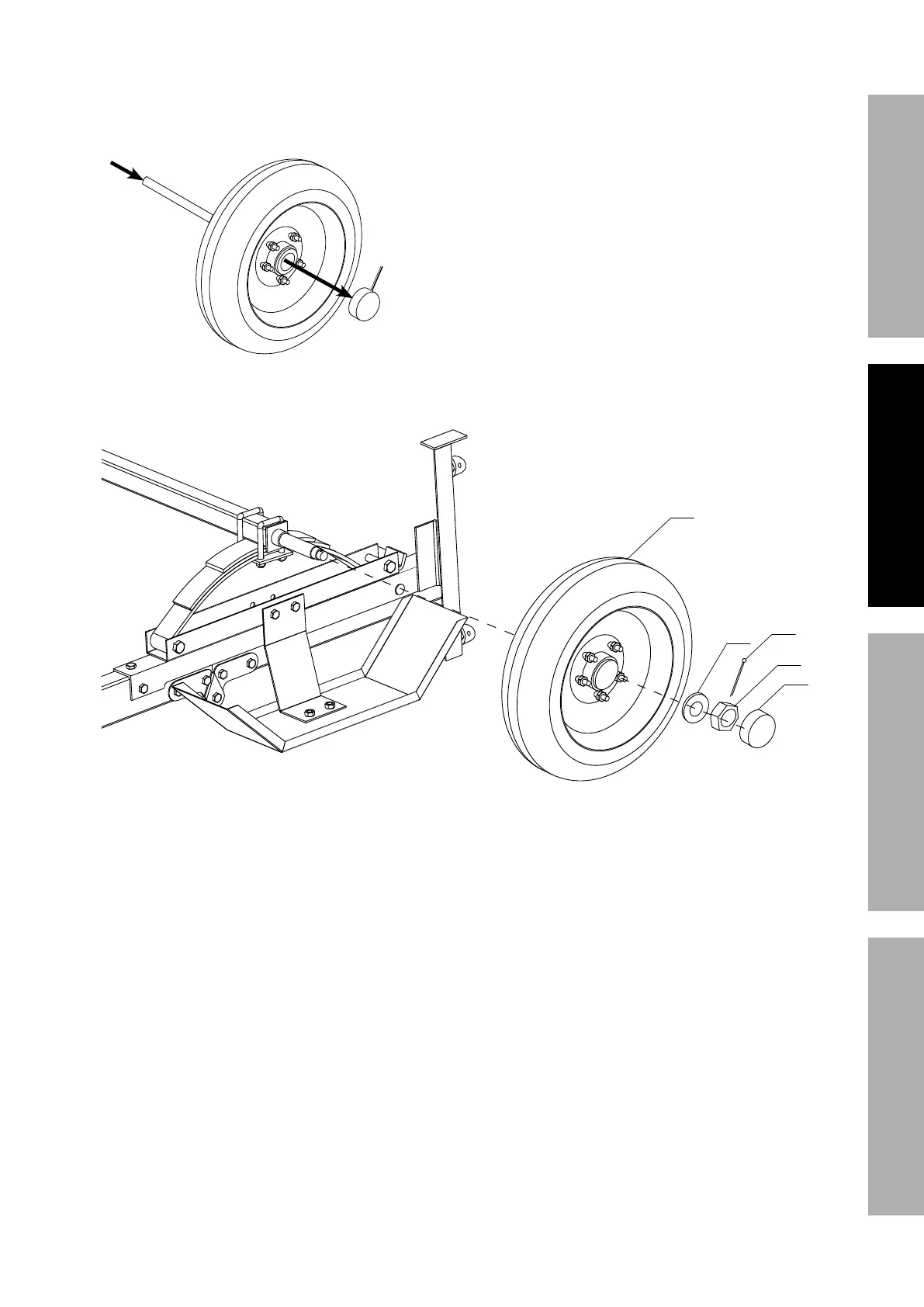

20. Remove Dust Caps (18). Place a
wood dowel into back of hub assembly,
then tap dowel to push Dust Cap
off, being careful not to remove
bearing. Repeat for other Tire.
>@
21. Remove Castle Nuts (15) and
Washers (14) from each end of Axle.
22. Place Tire and Washer on Axle.
23. Thread Castle Nut onto Axle until tire starts spinning
with slight resistance, then back off slightly and
line up gaps in Castle Nut with holes in Axle.
24. Insert Cotter Pin (16) through Castle Nut and Axle.
Bend pins in opposite directions to secure tire.
25. Repeat on other side.
26. Replace Dust Caps, tapping with
rubber mallet to seat them.
27. Lubricate zerk fittings on back of Hub Assemblies
with a heavy weight bearing grease.
