4 - System setup
4.3
Initial settings
System start-up
When turned ON:
• The system initiates itself.
• If the system is put into operation for the very first time it will prompt for date and time. Set clock to enable register.
Refer to “How to set clock” on page 4.2 for details on setting of clock.

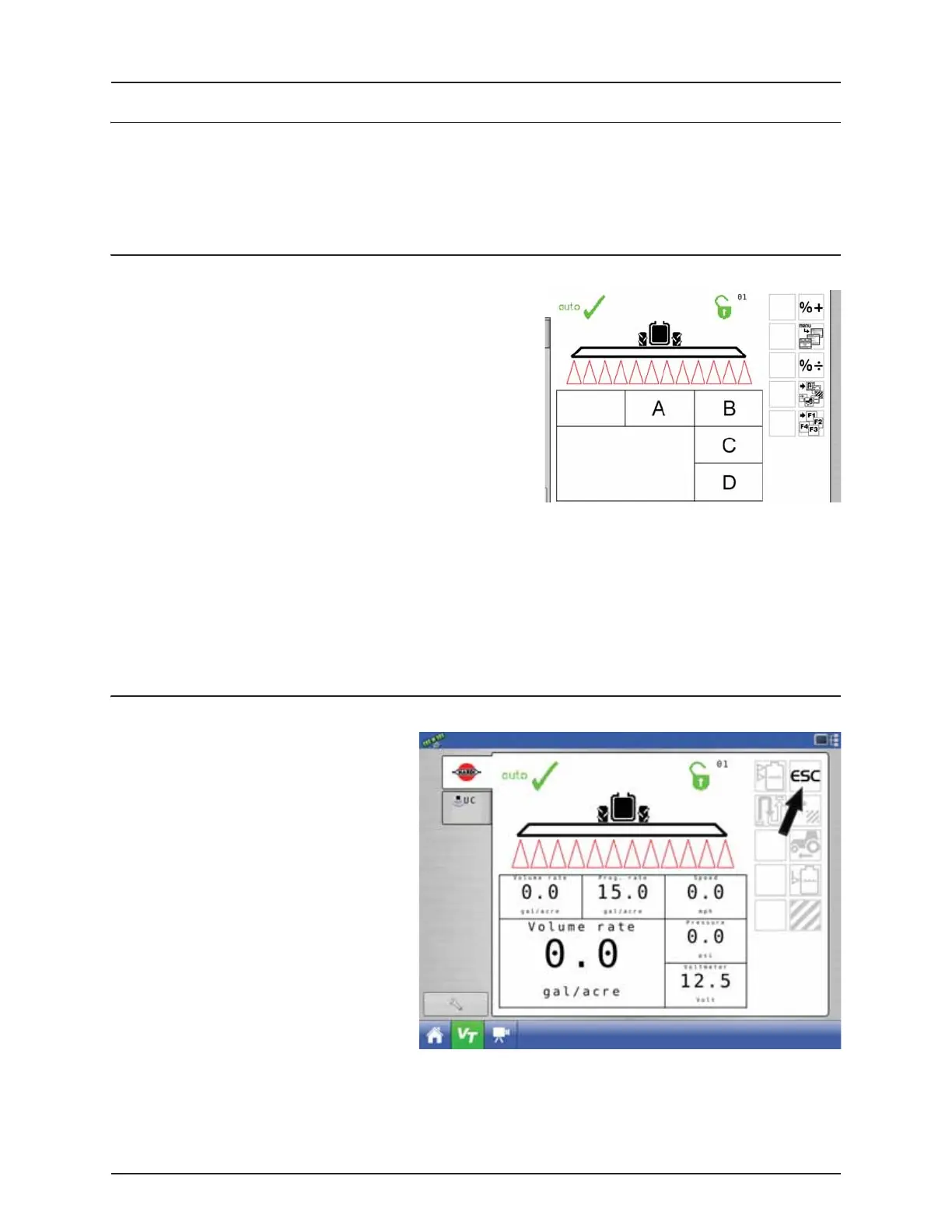

Display readout
It is possible to freely choose which functions are shown in the 4
different boxes (A, B, C and D) of the display.
ATTENTION! Read more about difference between HC 6500 and
ISOBUS in “Menu 2.1 Display readout” on page 6.1.
Readout selection
1. Go to menu [2.1 Display readout].
2. Use {up} or {down} arrows to choose which of following boxes you
want the data shown and press {Enter} to confirm.
2.1.1 Show upper middle (A)
2.1.2 Show upper right (B)
2.1.3 Show lower middle (C)
2.1.4 Show lower right (D)
3. Choose a submenu e.g. menu [2.1.1.04 Work rate]. Press {Enter} to confirm.
4. Press {ESC} to leave menu.
ATTENTION! For a full list of possible readouts, please refer to menu 2.1.1, menu 2.1.2, menu 2.1.3 and menu 2.1.4 in
“Full menu structure” on page 3.15.
ESC key for ISOBUS terminals
Menu 2.1.5 changes how the ESC key is operated.
• Menu 2.1.5.1 “Show ESC as softkey”:
Select this menu if there is no ESC button on
the ISOBUS terminal.
• Menu 2.1.5.2 “Do not show ESC as softkey”:
Select this menu if the ISOBUS terminal has a
physical ESC button.
ATTENTION! If the ESC softkey is removed on a display without a physical ESC button, navigation will become
impossible and will require service to fix. Only select menu 2.1.5.2 if a physical ESC button exists.
