Hardi N Series User Manual

38 HARDI
®
N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL

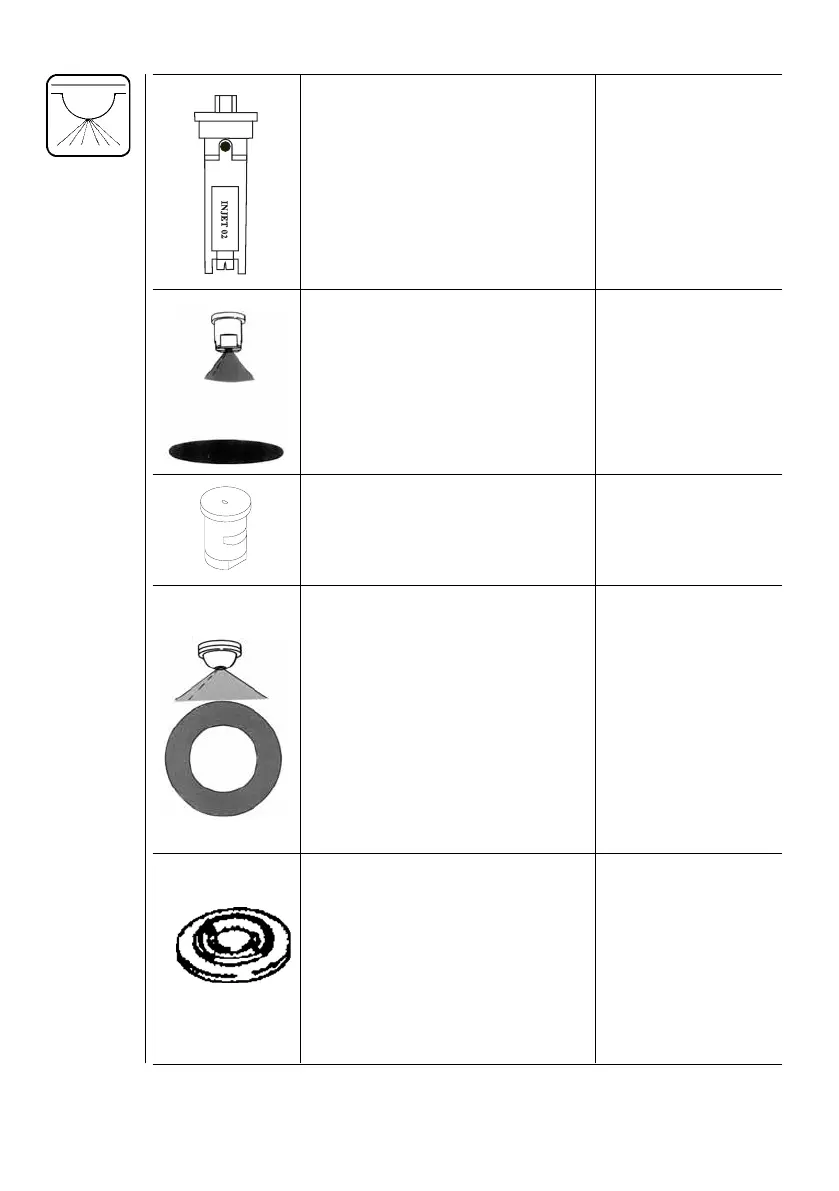

SWIRL PLATE used in con junc -
tion with cone nozzle to create
desired spray pattern. These
swirls work with 1553 series
cone nozzles. Grey, blue, or black
swirls are used to create hollow
cone effect. White swirls are used
to create full cone effect.
Grey
Blue
Black
White
FLAT SPRAY NOZZLES in 65
degree, 80 degree, and 110
degree spray angles. For her bi -
cides, insecticides, and fertilizer
applications. 50, 80, and 100
mesh screens are normally
used.
HOLLOW CONE NOZZLES
for high pressure and high
vol ume insecticide application
in row crops. 1553 nozzles are
ALWAYS used with swirl plates
shown below EXCEPT when
used as solid stream nozzles.
50, 80, or 100 mesh screens
are normally used with these
nozzles
4665-65 degree
2080-80 degree
4110-110 degree
Part # 330013-
O-ring
1553
Must add swirl
to produce
hollow cone
pattern
4598
FLOOD NOZZLES set at 40°
spacing. Designed for high
vol ume application.
HARDI
®
INJET™ NOZZLES; air
inclusion nozzles with removable
restrictor. Color coded for fl ow
rate selection. In-Line Filters will
normally be used.
