N-SERIES 3-PT SPRAYER DIAPHRAGM OPERATOR'S MANUAL
HARDI
®
QUINTASTREAM

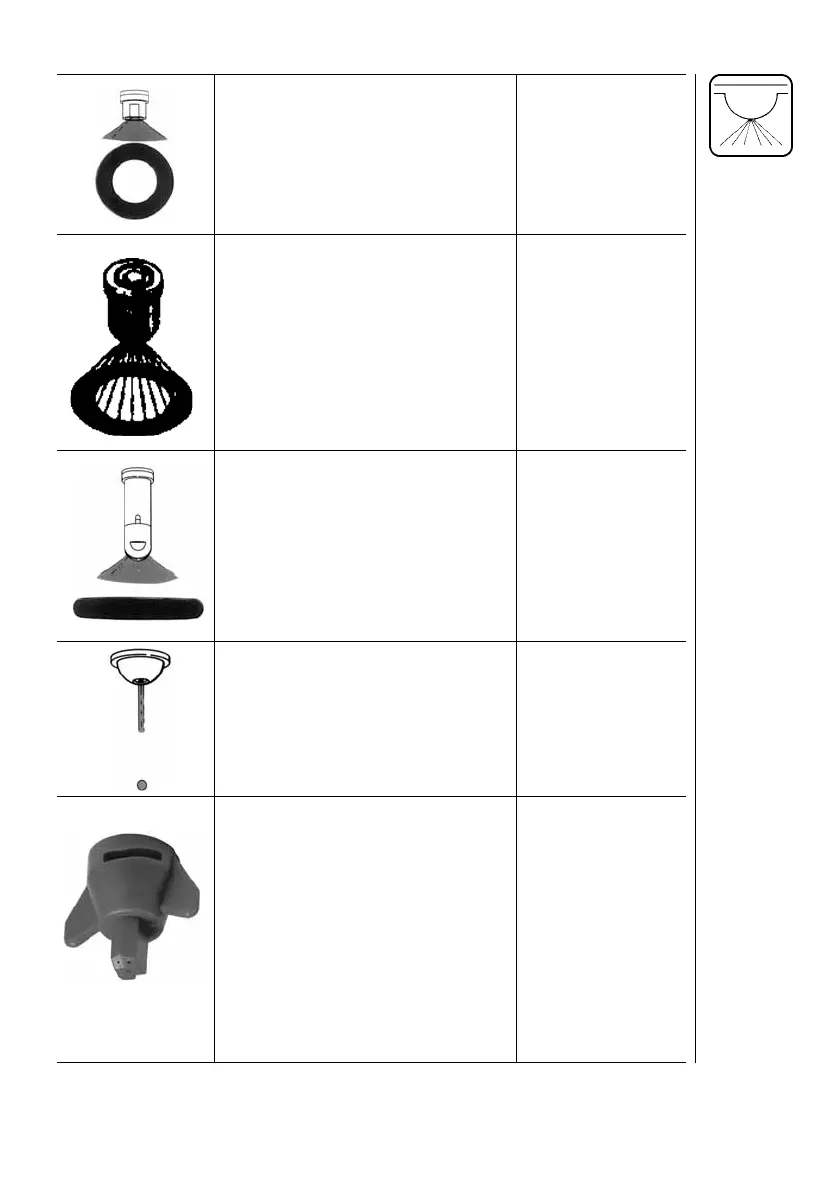

5 HOLE LIQUID FERTILIZER
NOZZLE Five streams of liquid
are distributed at different angles
and fl ows. Highest fl ow is from
the middle stream and lowest in
the outer; overlapping streams.
This allows for boom movements
that do not infl uence distribution.
Boom heights of 20" can be used
as safely as 30".
SOLID STREAM NOZZLE for
high volume liquid fertilizer
ap pli ca tion. In this application, the
1553 nozzle is always used with
330013 o-ring and 50, 80 or 100
mesh screens.
1553 less swirl
372011
thru
372019
LARGE DROPLET FLAT SPRAY
TIP IN 150 DEGREE SPRAY
ANGLE. Always used in conjunc-
tion with 1553-14-16-18 or 20
cone nozzle. 50, 80 or 100 mesh
screens are normally used with
these nozzles.
LARGE DROPLET HOLLOW
CONE NOZZLE for use where
drift must be kept to a minimum.
These nozzles must always be
fi tted with 1553 nozzles and grey
swirl plates. 50, 80 or 100 mesh
screens are normally used with
these nozzles.
371077
371551
HOLLOW CONE CERAMIC
NOZZLES for high pressure
and high volume fungicide and
insecticide application.
1299
