Hardi NAVIGATOR 3000

3 - Description
25

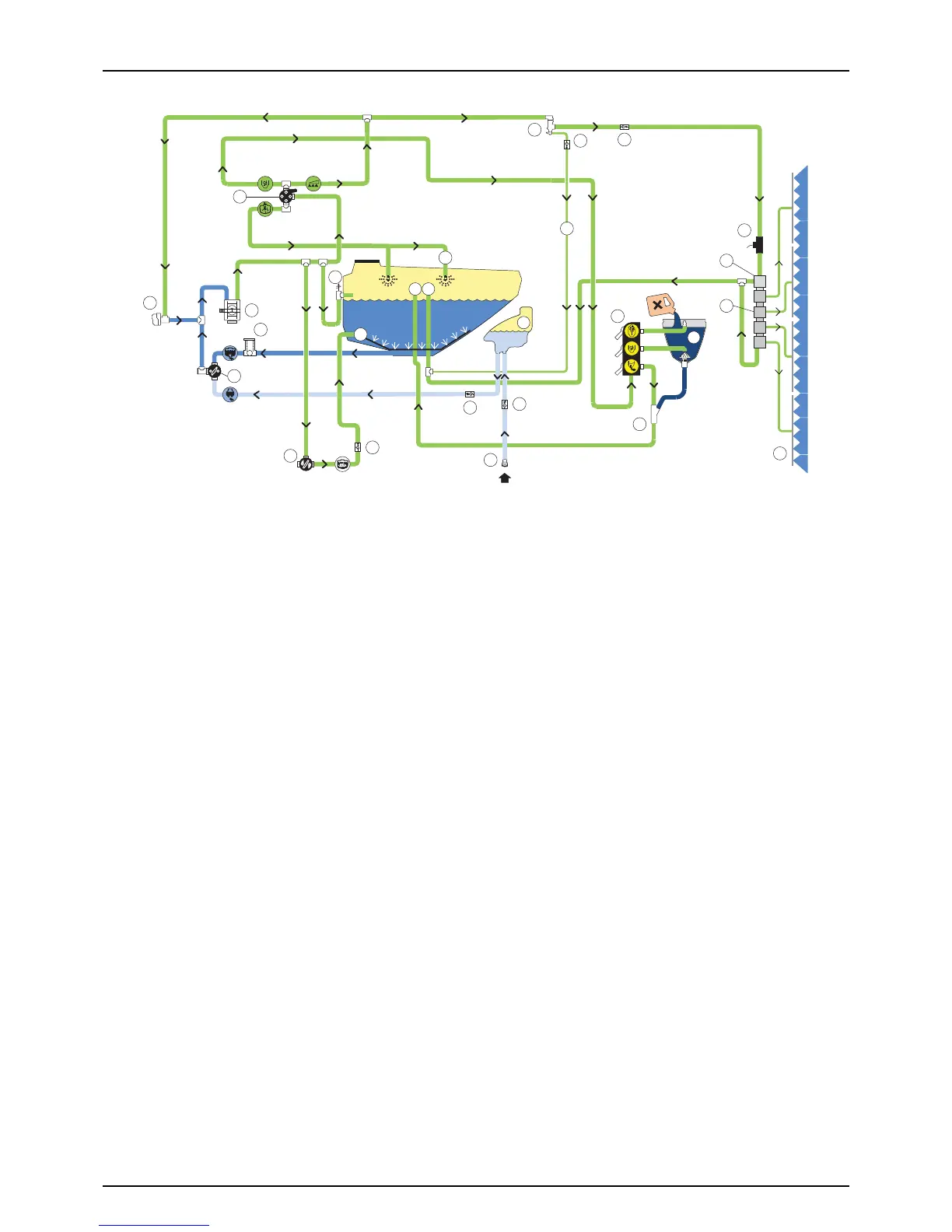

Diagram - Basic Liquid System
1. Pump
2. EasyClean filter
3. Suction Valve for Main tank/RinseTank
4. Pressure Control Valve
5. Pressure SmartValve
6. CycloneFilter
7. Return Line for Boost Function
8. Bypass Valve for Boom
9. Distribution Valves
10. Flow meter
11. Spray Boom
12. Agitation Valve
13. Agitation Tube
14. Tank Hose for Return Lines (Riser Pipe)
15. Safety Valve
16. One-Way Valve
17. Tank Hose (Riser Pipe)
18. Tank Rinsing Nozzles
19. Rinse Tank Coupler
20. Rinse Tank
21. Valve Block TurboFiller
22. Ejector TurboFiller
23. TurboFiller
17
14
3
1
2
6
16
16
16
19
16
4
5
7
8
10
9
20
18
13
16
22
23
21
11
12
15
