3 - Description
32
Equipment

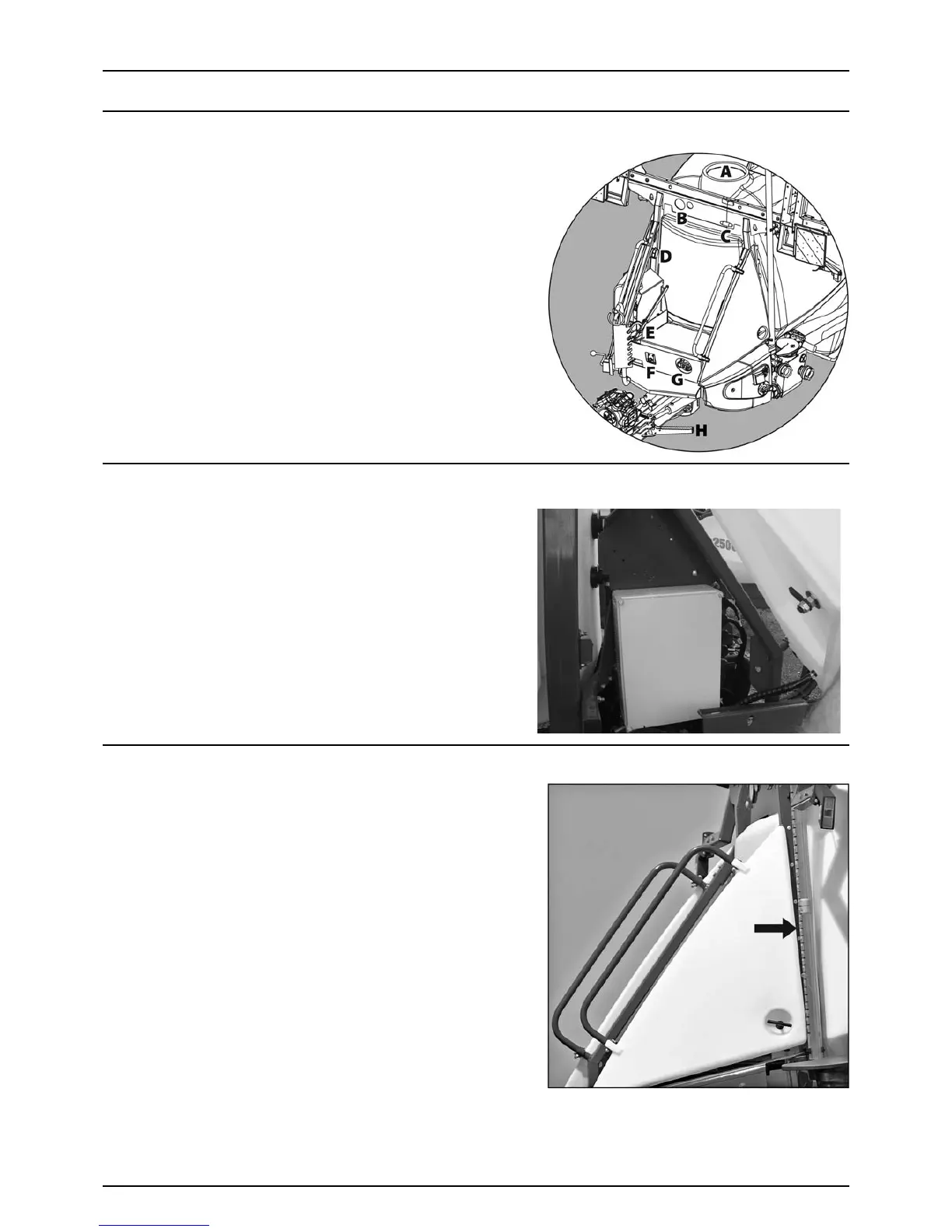

Platform
To get access to the platform:
• Pull the step(s) up and swing the step(s) (H) out until it clicking into
locked out-position. Retract by pulling up and swing step(s) back
to locked in-position.
Components
A. Main tank lid.
B. Pressure gauge and EasyClean clogging indicator.
C. Main tank drain valve, moved to right side of main tank.
D. Clean water tank lid.
F. Pressure regulation valve.
G. Agitation valve.
H. Step(s).
Right Side Cover
The right side cover is opened by turning the handle in the lower rear
corner of the cover and lifting the cover up.
Main components:
A. JobCom box.
B. Clean water tank.
The clean water tank is integrated in the side cover. It is filled
from the platform, when the side cover is closed.
μ
ATTENTION! Only open the right side cover, when the clean
water tank (optional) is empty!
Tank Level Indicator
The actual tank level in the main tank can be observed on the tank level
indicator. The scale is displayed in litres.
μ
ATTENTION! The level indicator is only a guidance for the tank
level.
The total deviation of accuracy for the level is 7.5% for a 20% filled
tank and below. For above 20% filled tank, the total deviation of
accuracy is 5%.
Just behind the main tank scale, a level for the rinsing tank is fitted to the
frame. This is a guidance to see if the rinsing tank is full or empty. If the
guidance ball is at the top, the rinsing tank is full.
