5 - Operation
52

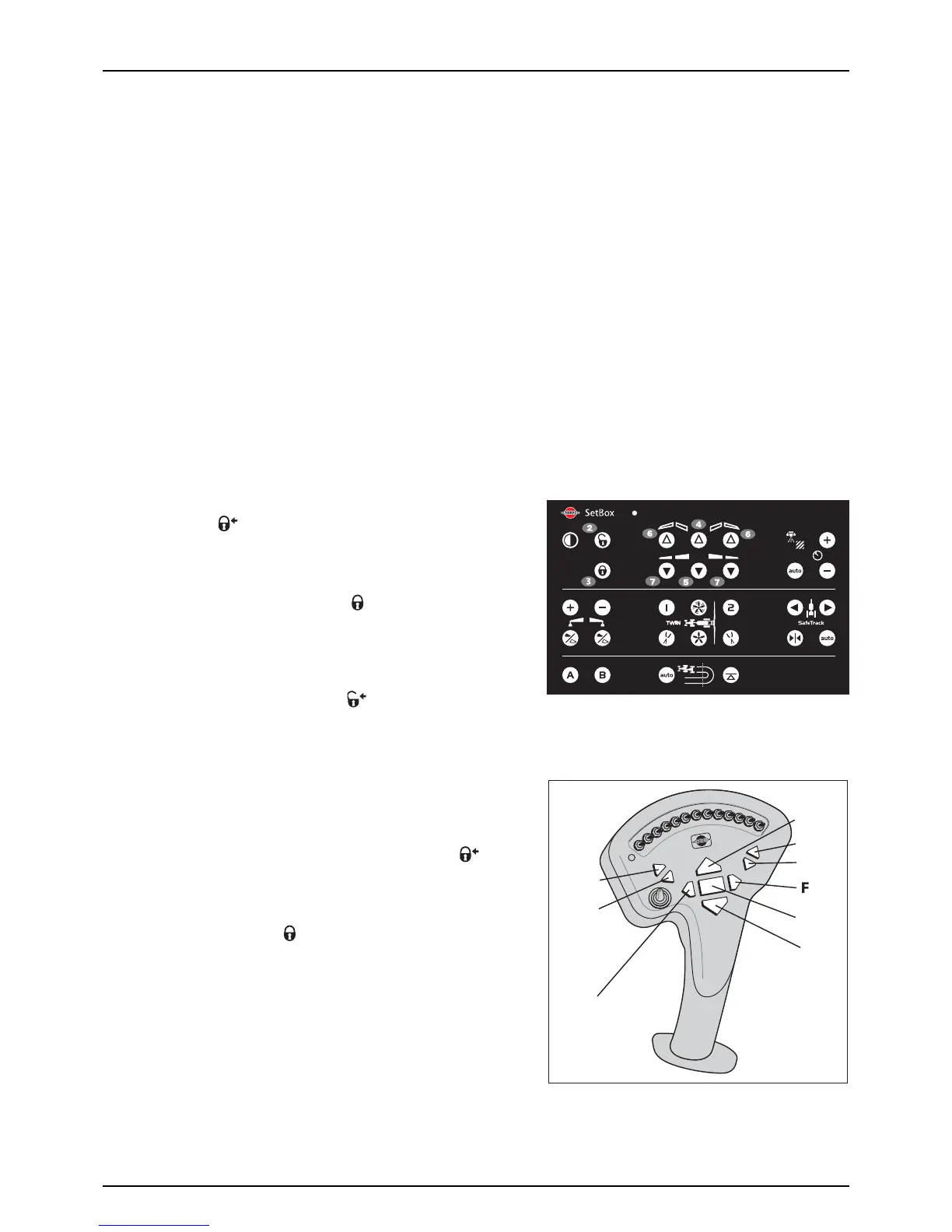

Manoeuvring of the Boom (Z-version) with HC 6500 / HC 8500 / HC 9500 / ISOBUS
±
WARNING!
The pendulum lock automatically turns ON, when pressing one of the folding buttons. Boom folding is not
possible, if the pendulum is unlocked. A manual override of the pendulum lock is possible by activating buttons 2 or 3.
±
WARNING! Ensure that transport safety chains are removed, and that the boom is clear from the transport brackets,
before unfolding.
±
WARNING! The folding functions must only be operated, when the sprayer is stationary! Failure to do so will damage
the boom. The pendulum lock automatically opens at speeds exceeding 1.5 km/h!
μ
ATTENTION! The boom cannot be operated with the tractors hydraulic levers.
μ
ATTENTION! Only buttons relevant for boom functions are described here. Refer to the instruction book for SetBox for
descriptions of other buttons.
To unfold the boom
±
WARNING! The pendulum lock automatically opens when you begin to drive. Drive slowly until the pendulum is
completely unlocked.
1. Push the lift up button (H) to lift the boom clear of the transport
brackets. The symbol appears in display until pendulum is
locked. This takes approximately 10 seconds.
2. Push the button (5) to unfold the inner wings completely. This
takes approximately 5 seconds, or a warning will appear. Check
that the pendulum locked symbol is visible in the display.
3. Push the buttons (7) to unfold the first outer wings.
4. Push the lift down button (I) to lower the boom to the correct
working height.
5. If not unlocked, then press (2) and symbol appears in display
until pendulum is unlocked. This takes approximately 10 seconds.
To fold the boom
1. Push slant buttons (E) or (F) to set neutral slant angle (no slant).
2. Push lift up button (H) to raise the boom to the highest possible
position.
3. Push the buttons (6) to fold the first outer wings. The symbol
appears in display until pendulum is locked. This takes
approximately 10 seconds.
4. Push the button (4) to fold the inner wings. Check that the
pendulum lock symbol is visible in the display.
5. Push the lift down button (I) to lower the boom, until it rests in the
paralift locks.¨
6. Push tilt down buttons (B) and (D) to lower the individual tilt rams,
until they rest on the front transport brackets.
