Hardi NAVIGATOR PRO User Manual

8 - Technical specifications
109
Electrical Connections

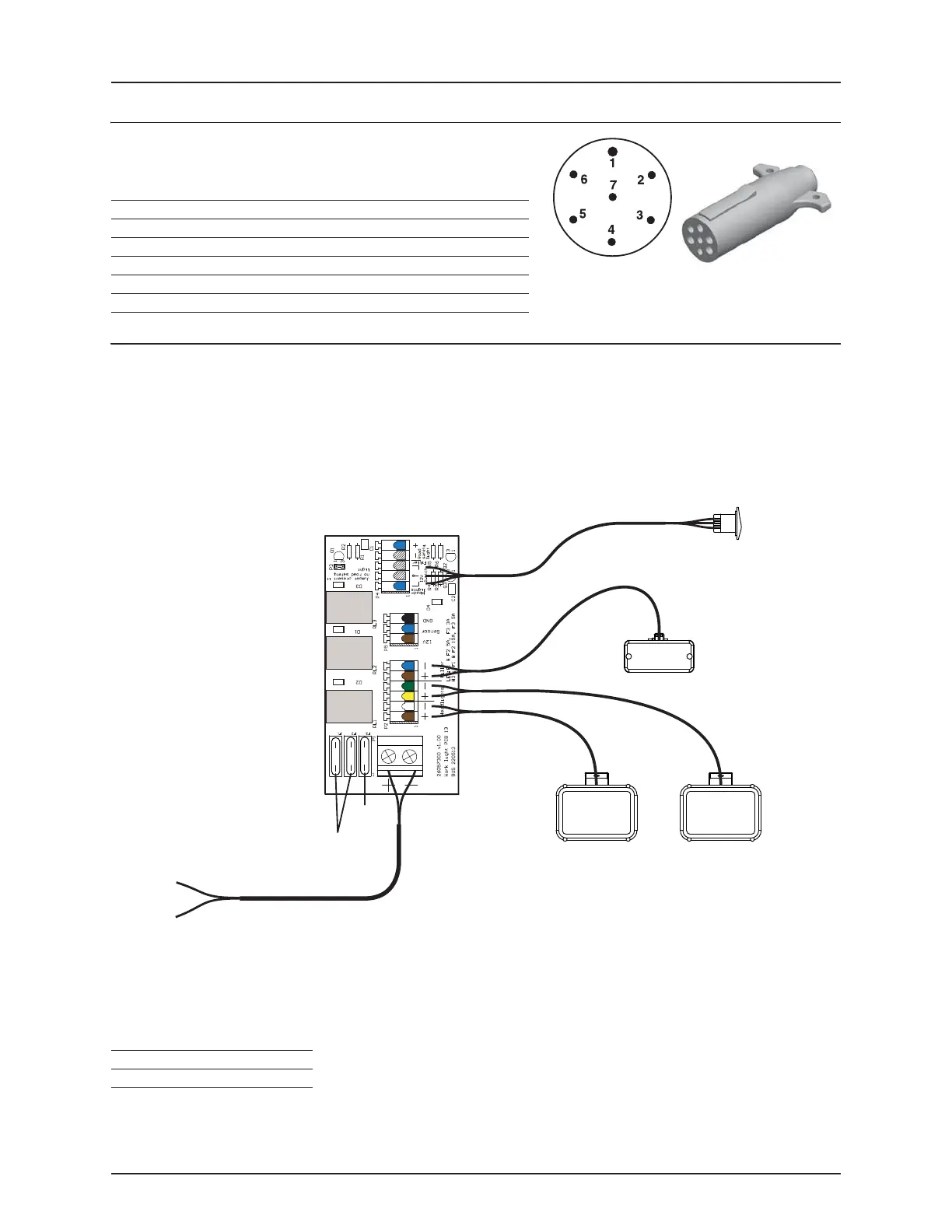

Road traffic lights
The wiring is in accordance with ANSI/ASAE S279.11.
Electrical Schematic for Boom and Work Lights (SPB/SPC Booms)
Position Wire color
1. Ground White
2. Work lamps Black
3. LH flashing & turn indicator Yellow
4. Free Red
5. RH flashing & turn indicator Green
6. Free Brown
7. Free Blue
A Switch for work/boom lights
BWork light
C Boom lights
DCable to JobCom
F1 F2 F3
B
C
D
15 A
5 A
LEFTRIGHT
C
A
