3 - Description
33

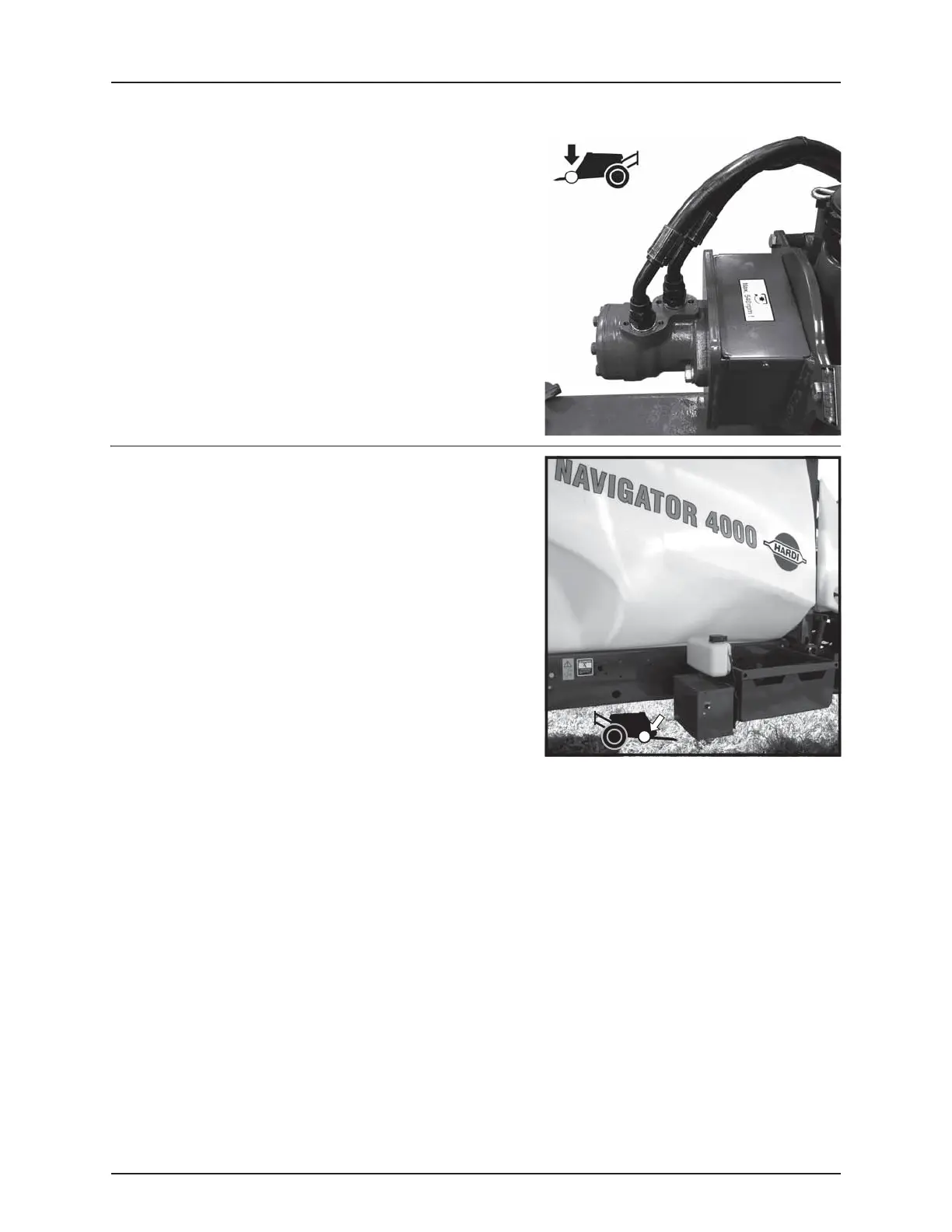

Hydraulic Motor for Liquid Pump
÷
NOTE! This oil motor is an alternative to a transmission shaft
(P.T.O.) connected between the tractor and sprayer.
This oil motor is mounted in front of the pump, and two hydraulic hoses
are connected directly to the tractor outlets.
When the correct oil flow is applied from the tractor, the oil motor drives
the pump at a speed of 540 r.p.m.
If the oil flow from the tractor is too high, flow valves connected to the
hydraulic hoses automatically reduce the oil flow to match 540 r.p.m. for
the pump. This function is mostly used at start-up, where the oil flow is
adjusted.
Richway® Direct Inject foam marker (optional)
The Richway® Direct Inject foam marker system may be installed behind
the ChemLocker on the sprayer’s right side. Clean water is drawn from
either the 130 gal (500 liter) Rinse Tank or the 25 gal. (100 liter)
FoamMarker tank (placed inside the ChemLocker).
