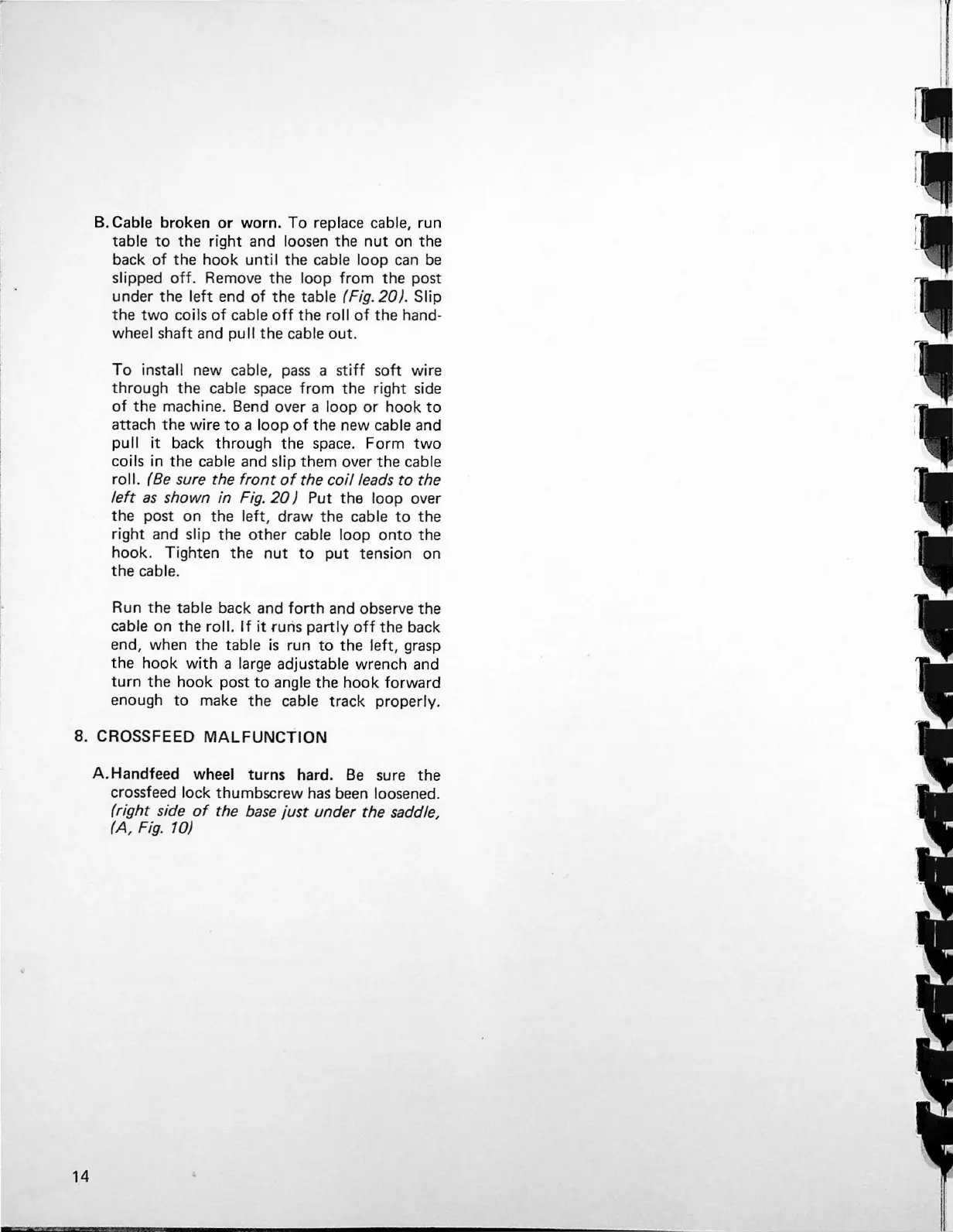

Harig 612 - Crossfeed Malfunction

B. Cable broken or worn. To replace cable, run
table to the right and loosen the nut on the
back of the hook until the cable loop can be
slipped off . Remove the loop from the post
under the left end of the table (Fig. 20). Slip
the two coils of cable off the roll of the hand-
wheel shaft and pu II the cable out .
To install new cable, pass a stiff soh wire
through the cable space from the right side
of the machine. Bend over a loop or hook to
attach the wire to a loop of the new cable and
pull it back through the space. Form two
coils in the cable and slip them over the cable
roll. (Be sure the front of the coil leads to the
left as shown in Fig. 20) Put the loop over
the post on the left, draw the cable to the
right and slip the other cable loop onto the
hook . Tighten the nut to put tension on
the cable.
Run the table back and forth and observe the
cable on the roll. If it ruris partly off the back
end, when the table is run to the left, grasp
the hook with a large adjustable wrench and
turn the hook post to angle the hook forward
enough to make the cable track properly.
8. CROSSFEED MALFUNCTION
14
A. Handfeed wheel turns hard. Be sure the
crossfeed lock thumbscrew has been loosened.
(right side of the base just under the saddle,
(A, Fig. 10)
