Harig 612 - Page 18

II
-
-
II
II
II
-
10 - 32 x
3
/4 SCREW (3 J
612F08 8
DRAG SPRING
~ -16 x 2 ½_ SCREW (3)
612F070 COLUMN
612FI05
ELEVATING SCREW
6I2FIO I
ELEVATING SCREW GUARD
41103
BEARING
612 FI06 BEVEL GEAR
41104 BEARING
POINTER SHOWN 90"
OUT OF POS I TIO~
61 2F I15 SLIP RIN G
6I2FlI4 HANDWHEEL
6I2FI I 7 CRANK HANDLE
1 0-32 x. %i SCREW ( 3 l
31552 KNURLED SCREW (2 )
LOCKNUT 1 2)
612F099 POINTER
612F090 COLUMN CAP
38401 ROLL PIN
6I2F093 PINION GEAR

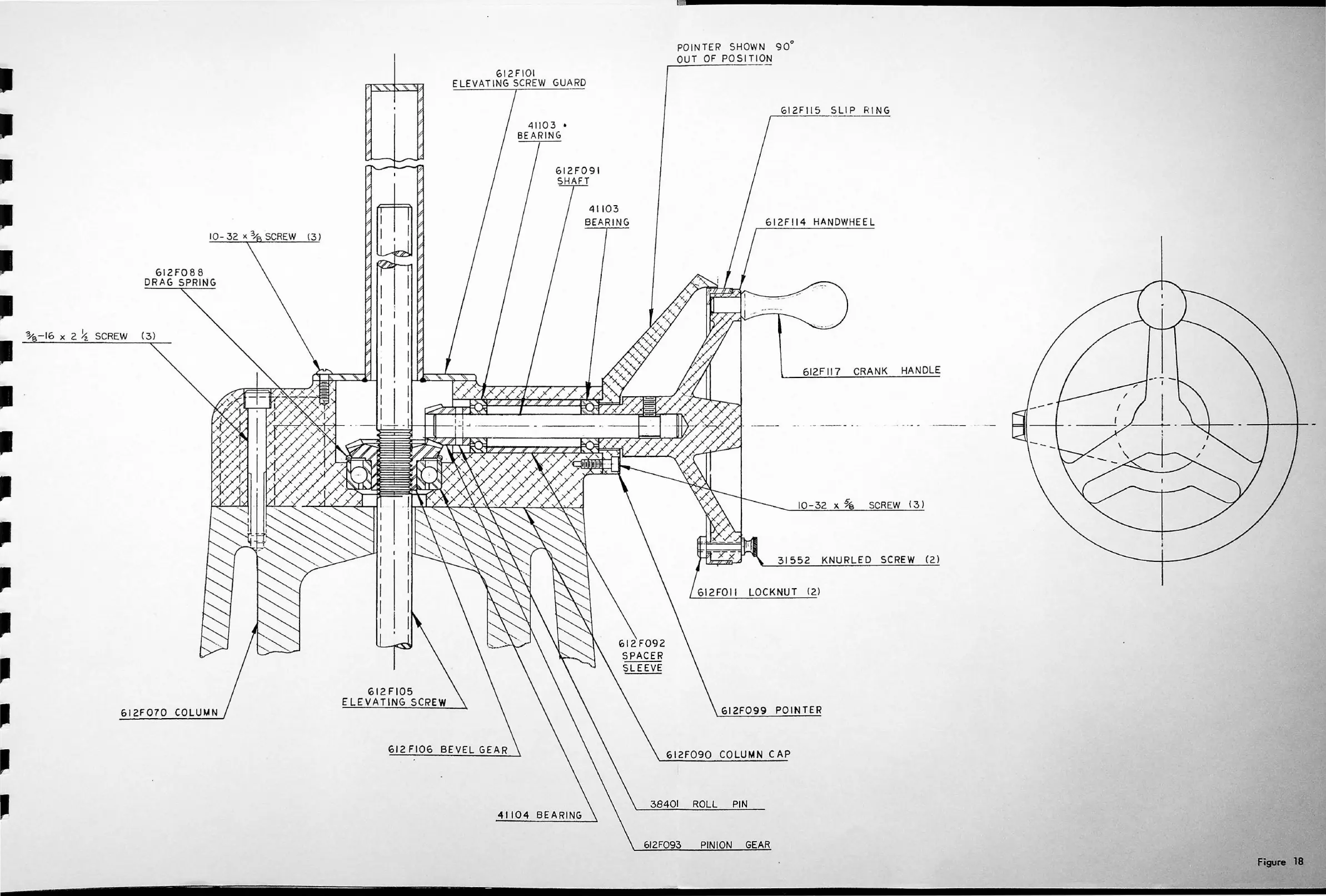

Figure 18
