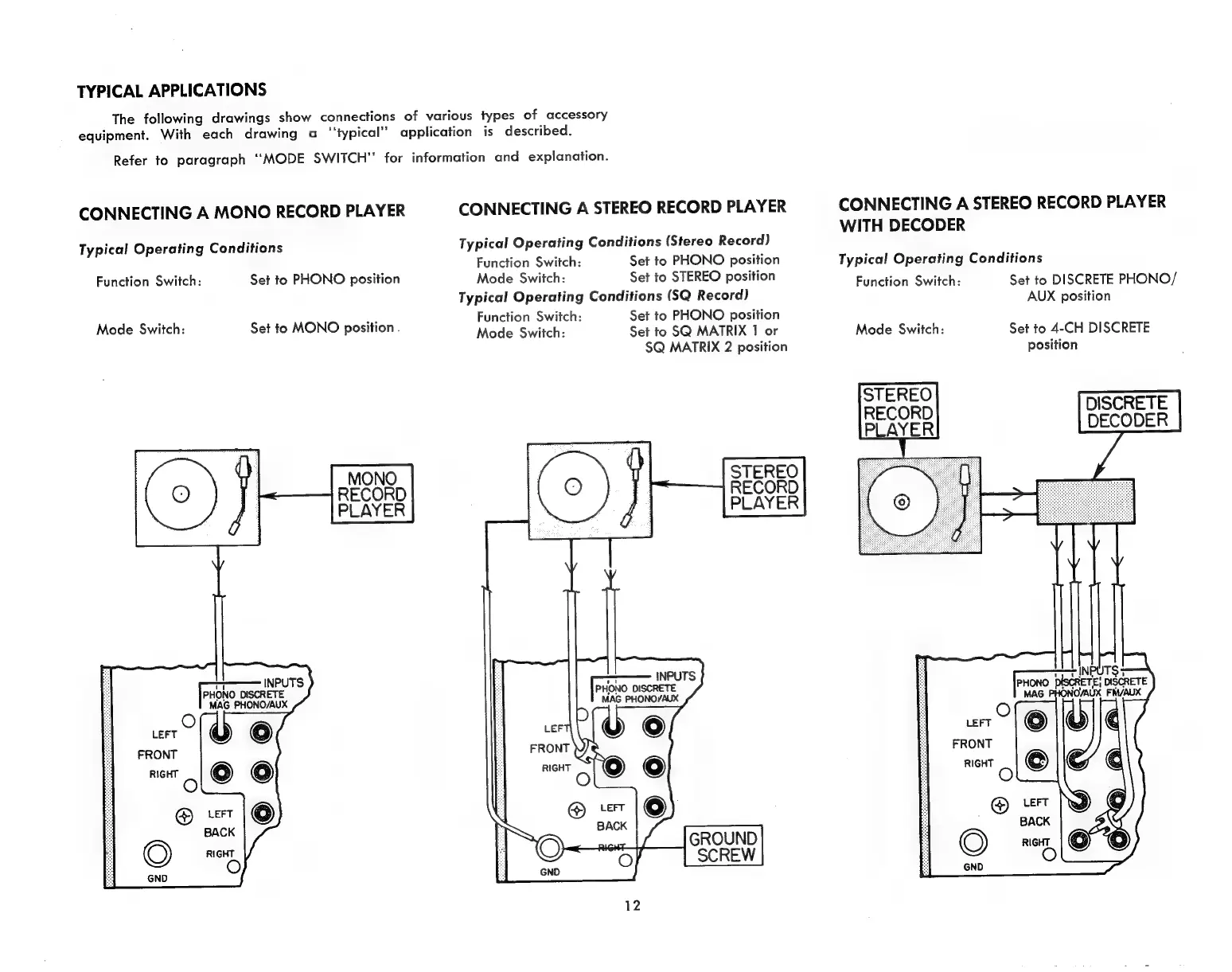

TYPICAL APPLICATIONS
The
following
drawings
show
connections
of
various
types
of
accessory
equipment.
With
each
drawing
a
“typical”
application
is
described.
Refer
to
paragraph
‘MODE
SWITCH”
for
information
and
explanation.
CONNECTING
A
MONO
RECORD
PLAYER
Typical
Operating
Conditions
Function
Switch:
Set
to
PHONO
position
Mode Switch:
Set to MONO position .
MONO
RECORD
PLAYER
[Poko DISCRETE
MAG PHONO/AUX
CONNECTING
A
STEREO
RECORD
PLAYER
Typical
Operating
Conditions
(Stereo
Record)
Function
Switch:
Set
to
PHONO
position
Mode
Switch:
Set
to
STEREO
position
Typical Operating Conditions (SQ Record)
Function Switch:
Mode Switch:
Set to PHONO position
Set to SQ MATRIX 1 or
SQ MATRIX 2 position
STEREO
RECORD
PLAYER
[Proto DISCRETE
MAG PHONOYAUX
12
CONNECTING
A
STEREO
RECORD
PLAYER
WITH
DECODER
Typical Operating Conditions
Set to DISCRETE PHONO/
AUX position
Function Switch:
Mode Switch: Set to 4-CH DISCRETE
position
DISCRETE
DECODER |
t ‘ INPUTS U
[Prono DISCRETE, DISCRETE
MAG PHONO/AUX FM/AUX
