Harman Kardon AVR 130 Quick Start Guide

AVR 130 QUICK-START GUIDE

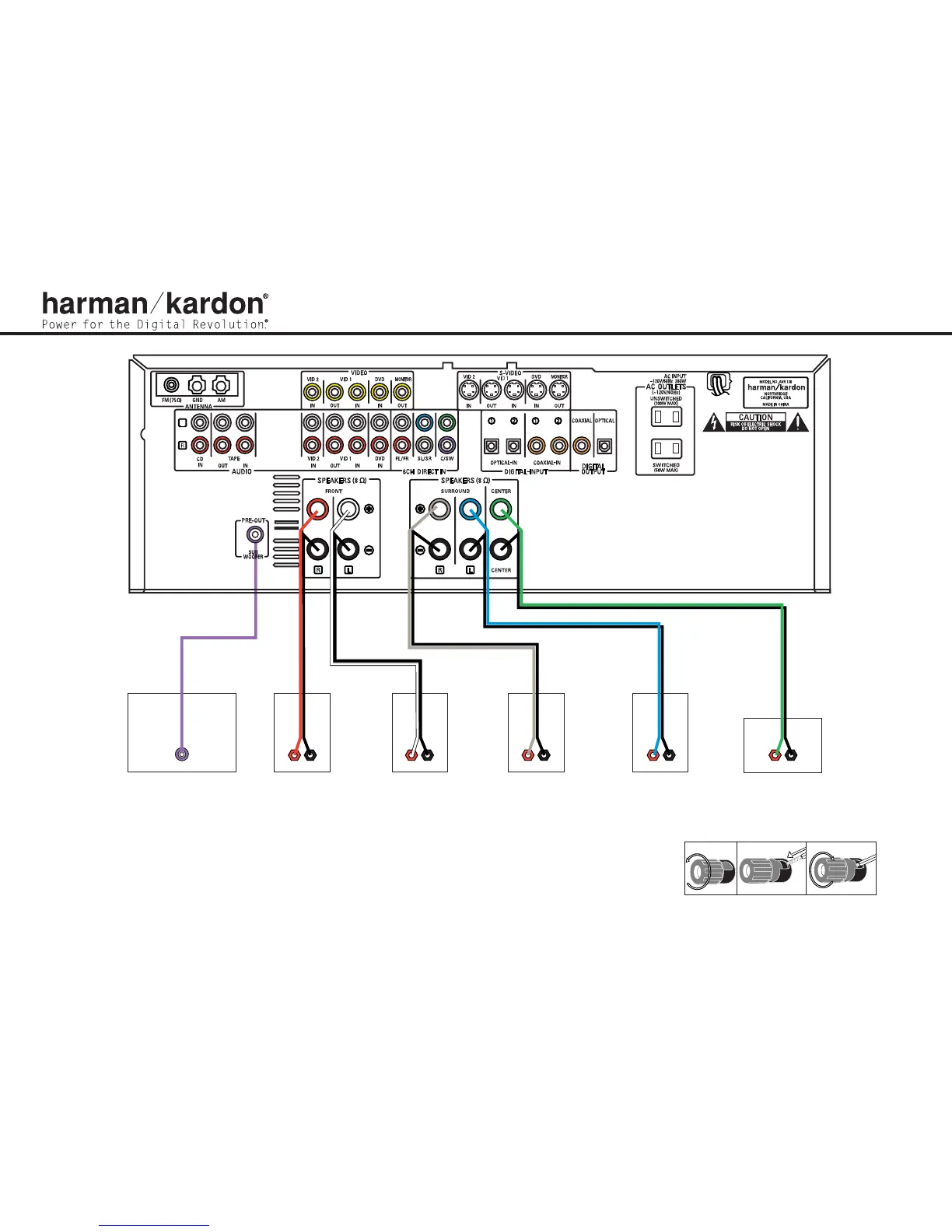

Figure 2 – Speaker Connections
Step 2. Connect the speakers to the receiver:red (+)
on speaker to colored (+) on receiver and
black (–) to black (–). (See page 13.)
Step 3. Connect the Subwoofer Pre-Out jack to
the Line-In jack on your subwoofer (see
page 13).You may adjust the settings on
the subwoofer later as needed.
Figure 3 – How to Use the Binding-Post
Speaker Terminal
SURROUND
RIGHT SPEAKER
SURROUND
LEFT SPEAKER
FRONT RIGHT
SPEAKER
FRONT LEFT
SPEAKER
CENTER SPEAKER
SUBWOOFER
+
_
LINE IN/SUB/LFE
+
_
+
_
+
_
+
_

Harman Kardon AVR 130 Specifications

General

Type	AV Receiver
Channels	5.1
Component Video Inputs	2
Analog Audio Inputs	6
Total Harmonic Distortion	0.07%
Input Sensitivity	200mV
Tuner Type	AM/FM
Frequency Response	10 Hz - 100 kHz
Digital Audio Inputs	1 Coaxial, 2 Optical
Input Impedance	47 kOhms
Dimensions (W x H x D)	440mm x 165mm x 386mm
Video Inputs	3 Composite
Stereo Mode Power	50W
