Harman Kardon AVR 156 Quick Start Guide

AVR 156
2
MODEL NO. AVR 156/230
Introduction, Speaker Placement and Connection
Introduction
Thank you for choosing a harman kardon
®
product!
This quick-start guide contains all the information you need to connect and set up your
new harman kardon
®
audio/video receiver.
To conserve our natural resources, your AVR does not include a printed owner's manual.
An owner's manual containing complete information about operating all of your new AVR's
features is available at our Web site. Go to www.harmankardon.com and download the
AVR 156 Owner’s Manual .
Place the AVR
Place the AVR on a firm and level surface. Be certain that the surface and any mounting •
hardware can support the AVR's weight.
Provide proper space above and below the AVR for ventilation. If you install the AVR in a cabinet •
or other enclosed area, provide cooling air within the cabinet. Under some circumstances,
a fan may be required.
Do not obstruct the ventilation slots on the top of the AVR or place objects directly over •
them.
Do not place the AVR directly on a carpeted surface.•
Do not place the AVR in moist or humid locations, in extremely hot or cold locations, in areas •
near heaters or heat registers, or in direct sunlight.
Connections
CAUTION: Before making any connections to the audio/video receiver, ensure that the
AVR's AC cord is unplugged from the AVR and the AC outlet. Making connections with
the AVR plugged in and turned on could damage the speakers.
Place Your Speakers
Determine the locations for your system’s speakers according to their manufacturer’s

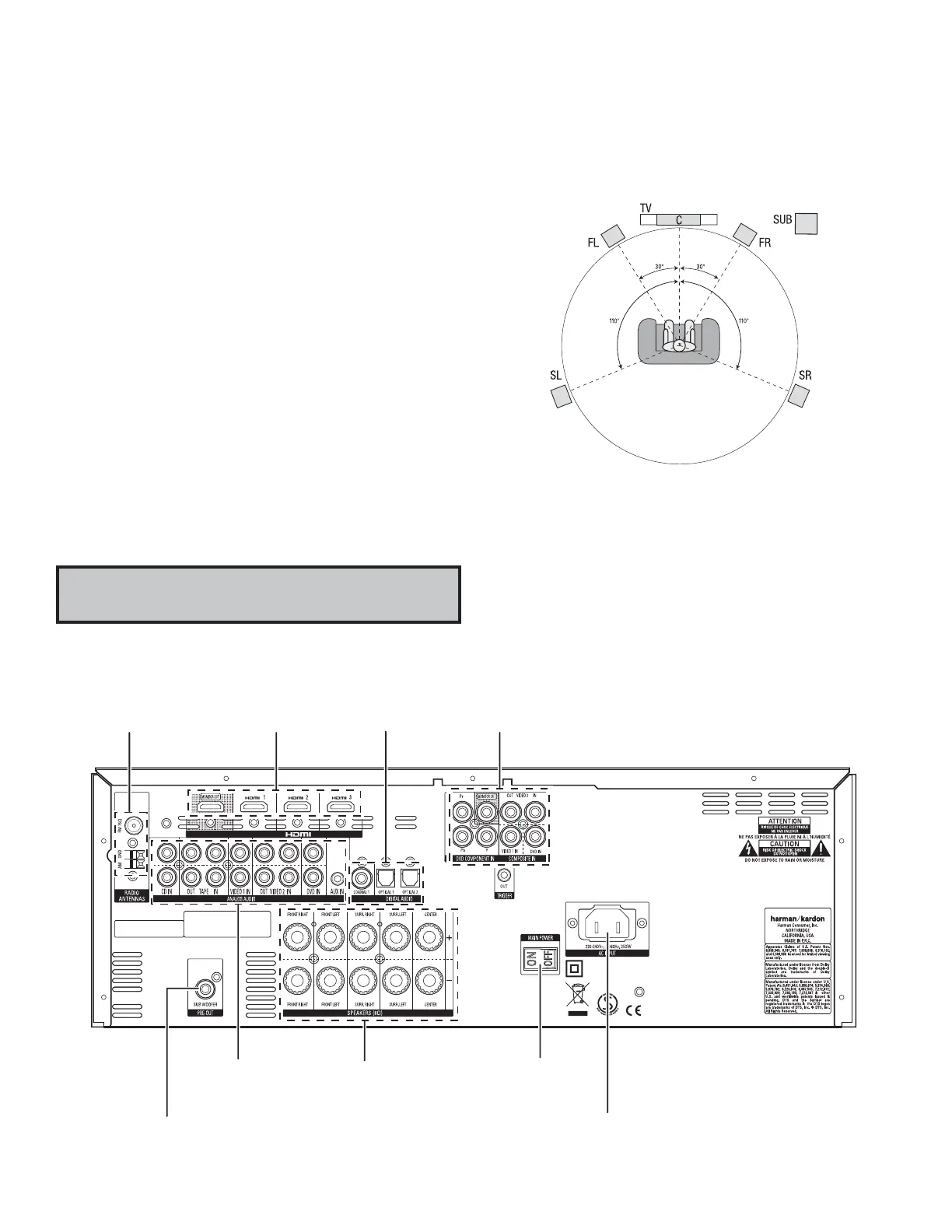

directions and the layout of your listening room. Use the illustration below as a guide.
For more detailed speaker placement information, including the use of front
height speakers, download the complete AVR 156 Owner’s Manual from
www.harmankardon.com.
AVR 156 Rear-Panel Connections
Radio Antenna
Connectors
HDMI
®
Connectors
Digital Audio
Connectors
Analog Video
Connectors
Subwoofer
Connector
AC Input
Connector
Analog Audio
Connectors
Speaker
Connectors
Main Power
Switch

Harman Kardon AVR 156 Specifications

General

Brand	Harman Kardon
Model	AVR 156
Category	Receiver
Language	English
