2
AVR
Introduction, Speaker Placement and Connection

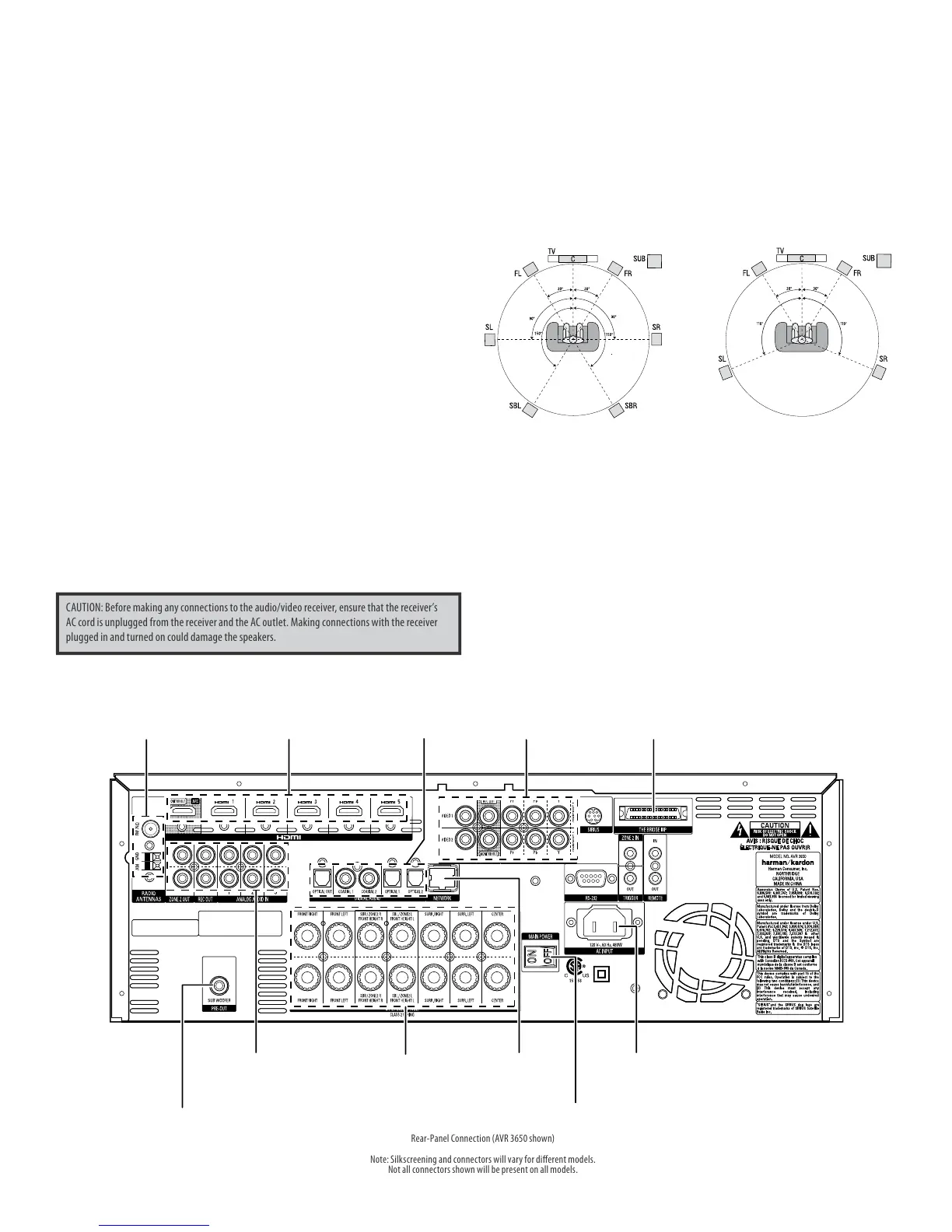

Rear-Panel Connection (AVR 3650 shown)
Note: Silkscreening and connectors will vary for different models.
Not all connectors shown will be present on all models.
Introduction
Thank you for choosing a harman kardon® product!
This quick-start guide contains all the information you need to connect and set up your new harman kardon
audio/video receiver.
To conserve our natural resources, your receiver does not include a printed owner's manual. An owner's
manual containing complete information about operating all of your new receiver’s features is available
at our Web site. Go to www.harmankardon.com and download the AVR 3650, AVR 365, AVR 2650, AVR 265
Owner’s Manual.
Place the Receiver
• Place the receiver on a firm and level surface. Be certain that the surface and any mounting hardware
can support the receiver’s weight.
• Provide proper space above and below the receiver for ventilation. If you install the receiver in a
cabinet or other enclosed area, provide cooling air within the cabinet. Under some circumstances, a
fan may be required.
• Do not obstruct the ventilation slots on the top of the receiver or place objects directly over them.
• Do not place the receiver directly on a carpeted surface.
• Do not place the receiver in moist or humid locations, in extremely hot or cold locations, in areas near
heaters or heat registers, or in direct sunlight.
Connections
CAUTION: Before making any connections to the audio/video receiver, ensure that the receiver’s
AC cord is unplugged from the receiver and the AC outlet. Making connections with the receiver
plugged in and turned on could damage the speakers.
Place Your Speakers
Determine the locations for your system’s speakers according to their manufacturer’s directions and
the layout of your listening room. Use the illustrations below as a guide for 7.1-channel and 5.1-channel
systems.
Speaker Positioning for
7.1-Channel Systems
Speaker Positioning for
5.1-Channel Systems
For more detailed speaker placement information, including the use of front height speakers, download
the complete AVR 3650, AVR 365, AVR 2650, AVR 265 Owner’s Manual from www.harmankardon.com.
Radio Antenna
Connectors
HDMI®
Connectors
Digital Audio
Connectors
Analog Video
Connectors
The Bridge IIIP
Connector
AC Input
Connector
Main Power
Switch
Network
Connector
Speaker
Connectors
Analog Audio
Connectors
Subwoofer
Connector
To Next Page
