Introduction, Speaker Placement and Connection
Introduction
Thank you for choosing a Harman Kardon product!
This quick-start guide contains all the information you need to connect and set up your
new Harman Kardon audio/video receiver (AVR).
To conserve our natural resources, your AVR does not include a printed owner’s manual.
An owner’s manual containing complete information about operating all of your new
AVR’s features is available at our Web site. Go to www.harmankardon.com and download
the AVR 3700, AVR 370, AVR 370C, AVR 2700, AVR 270, AVR 270C Owner’s Manual.
Place the AVR
• Place the AVR on a rm and level surface. Be certain that the surface and any mounting
hardware can support the AVR’s weight.
• Provide proper space above, below, behind and to the sides of the AVR for ventilation. Maintain
a clearance of at least 12" (30cm) on each side of, above and behind the unit.
• If you install the AVR in a cabinet or other enclosed area, provide cooling air within the cabinet.
Under some circumstances, a fan may be required.
• Do not obstruct the ventilation slots on the top of the AVR or place objects directly over them.
• Do not place the AVR directly on a carpeted surface.
• Do not place the AVR in moist or humid locations, in extremely hot or cold locations, in areas
near heaters or heat registers, or in direct sunlight.
Connections
CAUTION: Before making any connections to the AVR, ensure that the AVR’s AC cord is
unplugged from the AVR and the AC outlet. Making connections with the AVR plugged
in and turned on could damage the speakers.

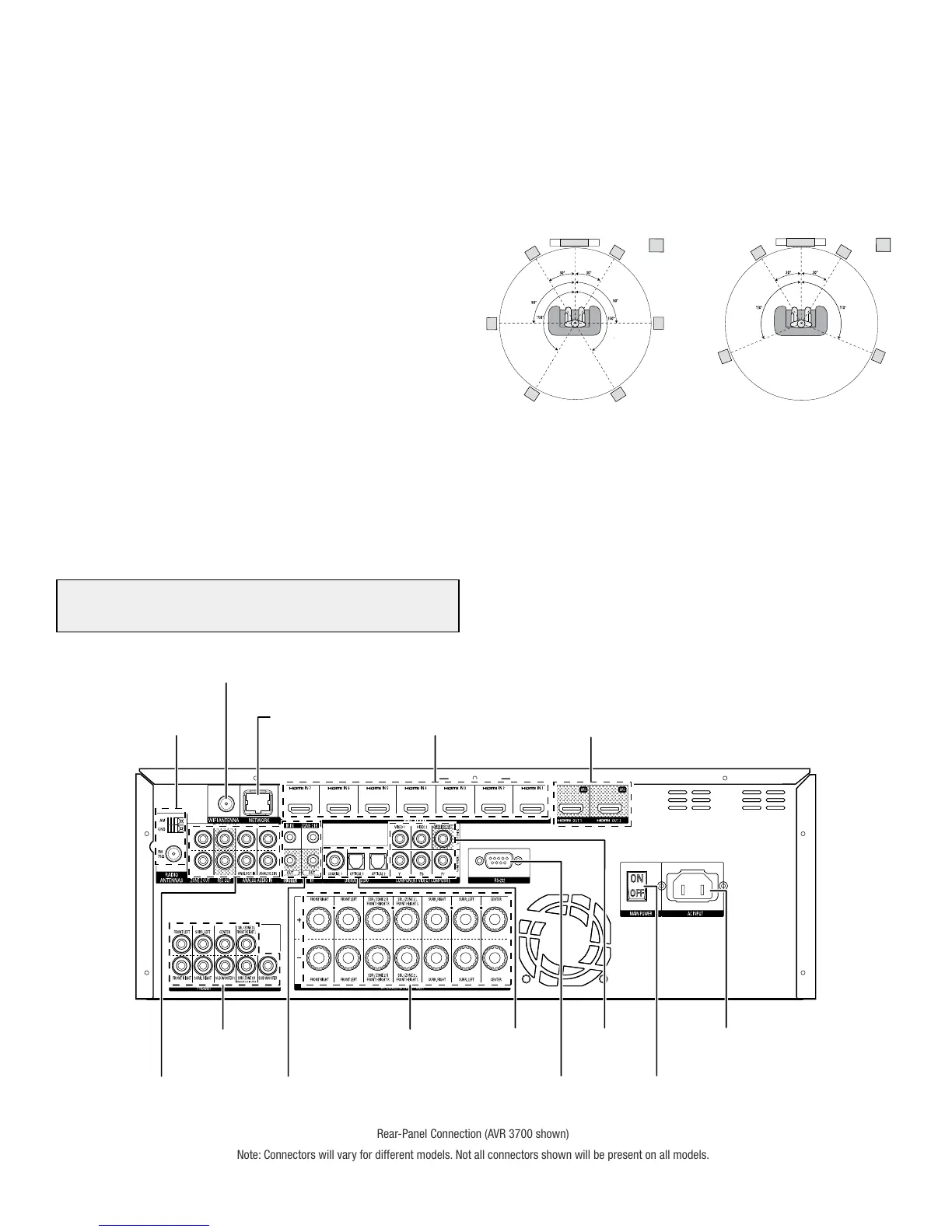

Place Your Speakers
Determine the locations for your system’s speakers according to their manufacturer’s
directions and the layout of your listening room. Use the illustrations below as a guide for
7.1-channel and 5.1-channel systems.
Speaker Positioning for
7.1-Channel Systems
SL SR
FRFL
TV
SUB
C
SBL SBR
SL SR
FRFL
TV
SUB
C
Speaker Positioning for
5.1-Channel Systems
For more detailed speaker placement information, including the use of front height
speakers with the Dolby Pro Logic IIz mode, download the complete AVR 3700, AVR 370,
AVR 370C, AVR 2700, AVR 270, AVR 270C Owner’s Manual from www.harmankardon.
com.
Rear-Panel Connection (AVR 3700 shown)
Note: Connectors will vary for different models. Not all connectors shown will be present on all models.
Radio Antenna
Connectors
Wi-Fi Antenna
Connector
HDMI Output
Connectors
HDMI Input
Connectors
Network
Connector
Analog Audio
Connectors
Pre-Out
Connectors
Speaker
Connectors
Digital Audio
Connectors
Analog Video
Connectors
AC Input
Connector
IR and Trigger
Connectors
RS-232
Connector
Main Power
Switch

Harman Kardon AVR 270 Specifications

General

Receiver type	Surround
Audio output channels	7.1 channels
Signal-to-Noise Ratio (SNR)	100 dB
Power output per channel (20-20KHz@8 Ohm)	100 W
Speakers connectivity type	-
Wi-Fi	No
Ethernet LAN	Yes
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Analog signal format system	NTSC, PAL
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Apple docking compatibility	Not supported
AC input voltage	230 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	120 W
HDMI in	8

Weight and Dimensions

Depth	382 mm
Width	440 mm
Height	165 mm
Weight	7700 g
