Harman Kardon AVR 70 User Manual

OUT
TAPE2
IN
LD
TV
OUT
TAPE1
IN
CD
OUT
VCR2
IN
CENTER
SURR.
8 OHMS
8 OHMS
FRONT
8 OHMS
PRE OUT
OUT IN
REMOTE
CONT.
OUT
VCR1
IN
L
FRONT
R
L
SURR.
R
CENTER
SUB
WOOFER
LR LR
AUDIO
RL
SPEAKERS
VIDEO S-VIDEO
FM
(75Ω)
AM
ANTENNA
GND
TV
MONI
OUT
VCR2
IN
OUT
VCR1
IN
LD
TV
SWITCHED UNSWITCHED
AC OUTLETS
230V 50/60Hz)
®
ß
πøñµ
˚
œ
å
ç
∫
¬
∆
î
∂
ƒ
é
©
˙
OUT
TAPE2
IN
LD
TV
OUT
TAPE1
IN
CD
OUT
VCR2
IN
CENTER
SURR.
8 OHMS
8 OHMS
FRONT
8 OHMS
PRE OUT
OUT IN
REMOTE
CONT.
OUT
VCR1
IN
R
FRONT
L
R
SURR.
L
CENTER
SUB
WOOFER
L R LR
AUDIO
RL
SPEAKERS
VIDEO S-VIDEO
FM
(75Ω)
AM
ANTENNA
GND
TV
MONI
OUT
VCR2
IN
OUT
VCR1
IN
LD
TV
SWITCHED UNSWITCHED
AC OUTLETS
230V 50/60Hz)
Q
P
J
I
E
D
F
C
O
N
L
B
A
M
K
H
G

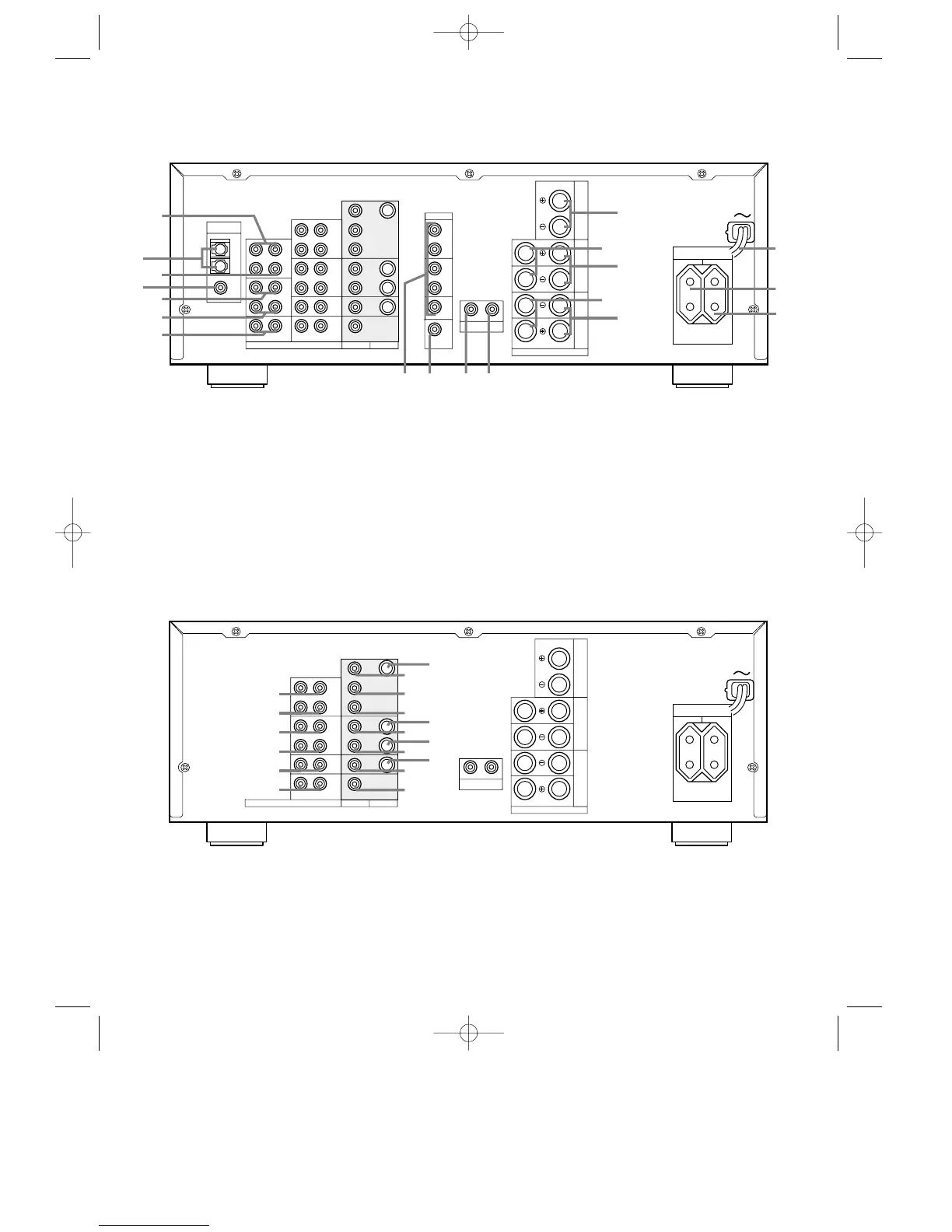

Rear Panel – Audio and System Connections
Rear Panel – Video Connections
A VCR 1 Audio In
B VCR 1 Audio Out
C VCR 1 Video In
D VCR 1 Video Out
E VCR 1 S Video Out
F VCR 1 S Video In
G VCR 2 Audio In
H VCR 2 Audio Out
I VCR 2 Video In
J VCR 2 Video Out
K TV Audio In
L TV Video In
M LD Audio In
N LD Video In
O LD S Video In
P TV Monitor Video Out
Q TV Monitor S Video Out
å FM Antenna
∫ AM Antenna
ç Tape 1 Out
∂ Tape 1 In
é Tape 2 Out
ƒ Tape 2 In
© CD IN
˙ Front R
î Front L
∆ Center
˚ Surround R
¬ Surround L
µ Pre-Outs
ñ Subwoofer Pre-Out
ø Remote IR Out
π Remote IR In
œ Unswitched AC Outlet
® Switched AC Outlet
ß Power Cable
AVR70 engelsk manual 11/01/98 11:57 Side 4

Harman Kardon AVR 70 Specifications

General

Impedance	75 Ω
Frequency range	10 - 100000 Hz
Input sensitivity	200 mV
Audio output channels	5.1 channels
Signal-to-Noise Ratio (SNR)	95 dB
Total Harmonic Distortion (THD)	0.1 %
Power output per channel (20-20KHz@8 Ohm)	75 W
HDMI in	3
Line-in	Yes
Audio (L/R) in	1
Digital audio optical in	2
Connectivity technology	Wired
Speakers connectivity type	-
Ethernet LAN	No
AM band range	520 - 1720 kHz
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Volume control	Digital
Apple docking compatibility	Not supported
AC input voltage	220 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	280 W
Cables included	AC

Weight and Dimensions

Depth	330 mm
Width	440 mm
Height	125 mm
Weight	9100 g
