VIDEO CONNECTIONS
Device Connection Options: Recommended connections are shown in red, but connections may be made to best fit your system requirements. The Video 5, Coaxial 4 and Optical 4 inputs are on the front panel of the receiver.
Device Input Name Audio Input Connections Audio Output Connections Video Connections
CD Player CD CD L/R Inputs, Optical Digital 1, 2 or 3, or Coaxial Digital 1, 2 or 3 Not required Not required
DVD Player DVD Coaxial Digital 1 or 2, Optical Digital 1 or 2, or DVD L/R Inputs Not required Component V1, DVD Composite or S-Video
VCR Video 1 Video 1 L/R Inputs Video 1 L/R Outputs Video 1 Composite or S-Video Input and Output
Cable Box Video 3 Video 3 L/R Inputs, Optical Digital 1 or Coaxial Digital 3* Inputs Not required Component V2, Video 3 Composite or S-Video
Satellite Receiver Video 4 Video 4 L/R Inputs, Optical Digital 2, or 3* or Coaxial Digital 2 or 3* Inputs Not required Component V2, Video 4 Composite or S-Video
Audio Recorder Tape Tape L/R Inputs, Optical Digital 1/2/3** or Coaxial Digital 1/2/3** Inputs Tape L/R Outputs, Digital Optical** or Coaxial Outputs** Not required
TV or Video Display Not applicable Not required Not required Monitor-Out Component, Composite and/or S-Video
*
Check with your cable or satellite company to determine whether digital audio is available for all channels. It may be necessary to make BOTH analog and digital connections if it is not.
**
Digital audio recorders only.
250 Crossways Park Drive, Woodbury, New York 11797 www.harmankardon.com © 2004 Harman International Industries, Incorporated Part No. ZKD0452HA00-7

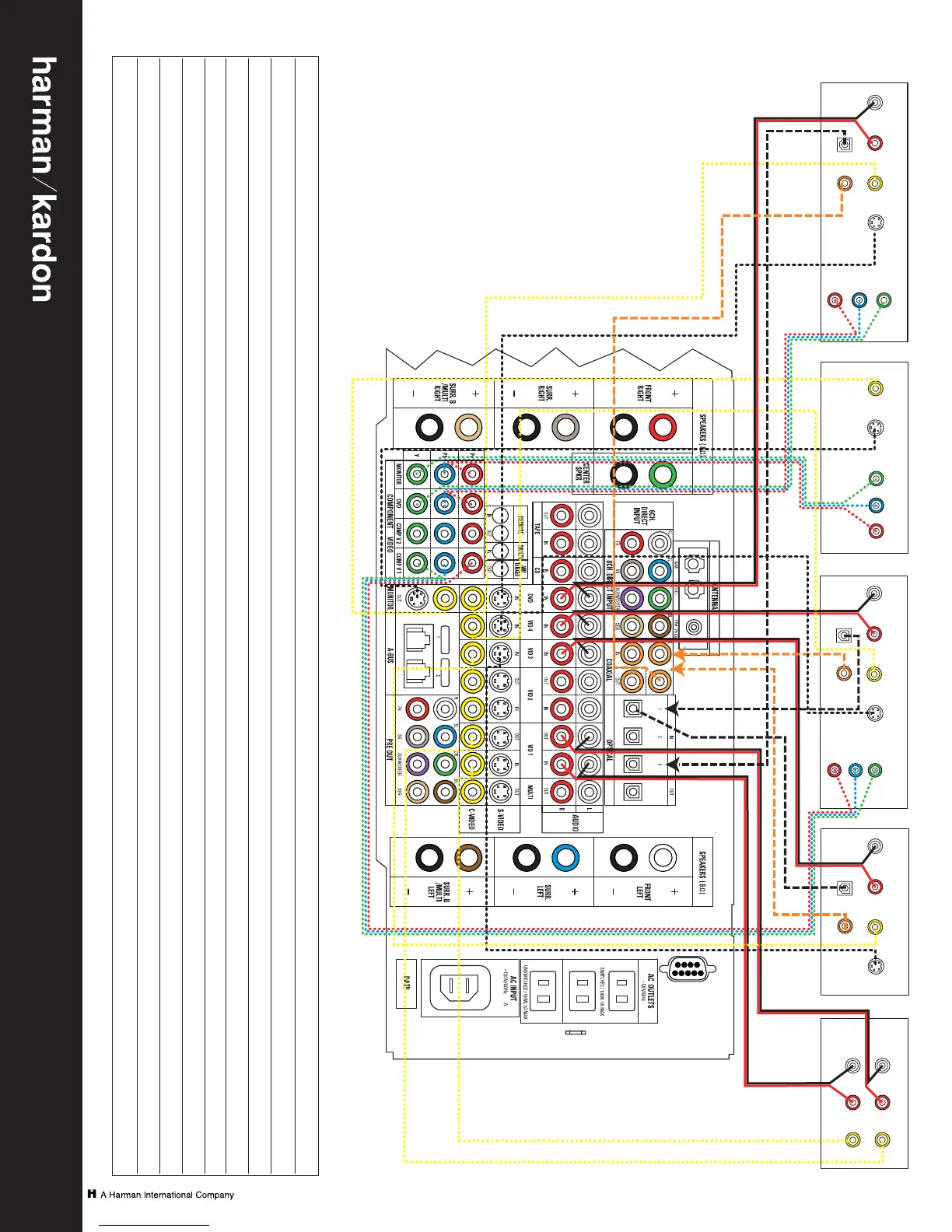

Figure 5 – Video Connections
Dashed lines (––––) indicate coaxial and
optical digital audio connections. Choose
either type (but not both) for each digital
audio source.
Dotted lines (••••) indicate component,
composite or S-Video connections.
When used with a “digital ready” or HDTV
display of any type, all video input sources
are up-converted to 480P. In that case, con-
nect the Y/Pr/Pb component video monitor
outputs to a matching input on your display.
When using an analog television or video
display, you must connect both the compos-
ite and S-Video (if used) video monitor out-
puts to the TV (see page 19). Do not use
component video input connections if your
display does not have component inputs.
