RN5RZ
3

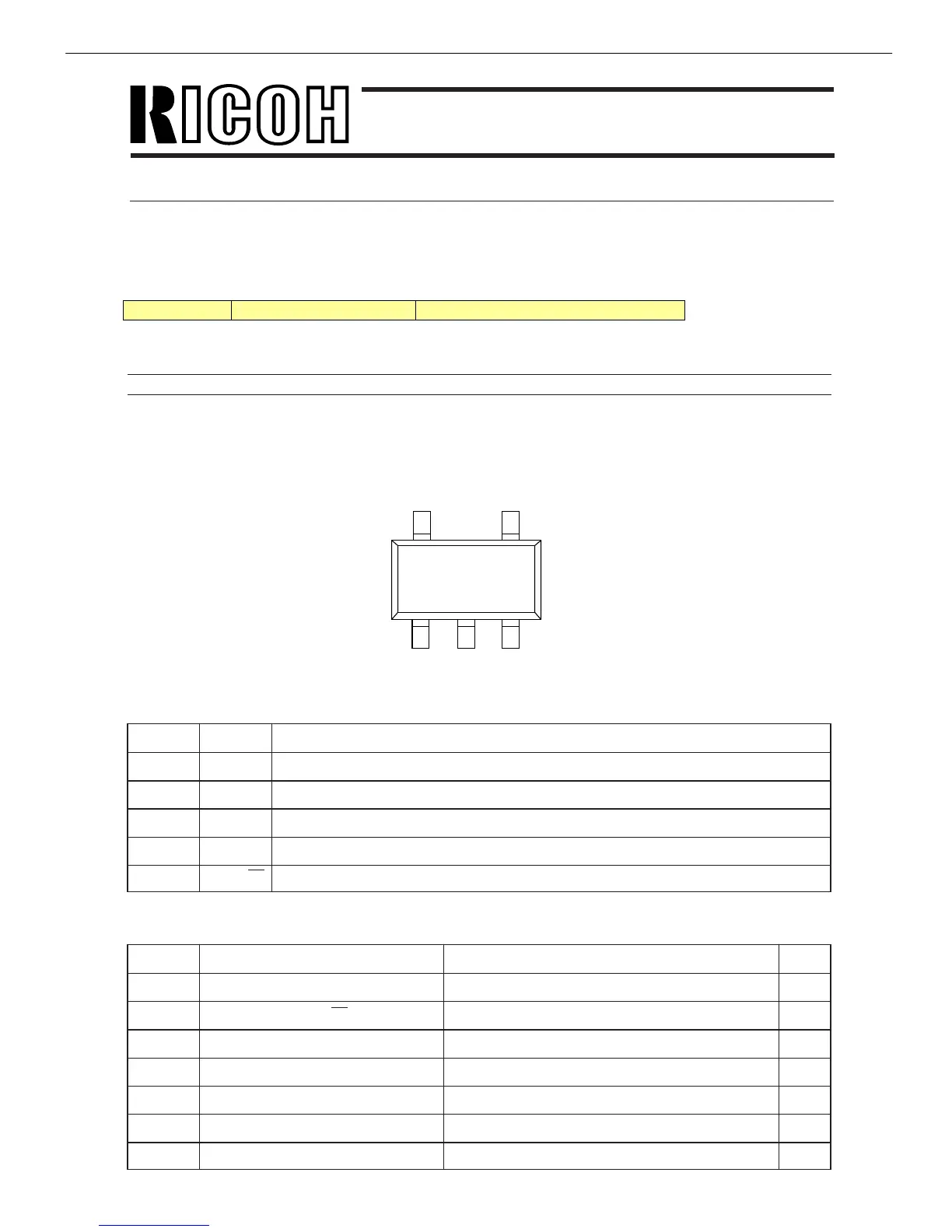

PIN CONFIGURATION
PIN DESCRIPTION
• SOT-23-5
1 2
3
5 4
(mark side)
Pin No. Symbol Description
1 GND Ground Pin
2 VDD
Input Pin
3 VOUT Output Pin
4 NC No Connection
5 CE or CE Chip Enable Pin
ABSOLUTE MAXIMUM RATINGS
Symbol Item Ratings Unit
VIN Input Voltage 9 V
VCE Input Voltage (CE or CE Pin) –0.3 to VIN +0.3 V
VOUT Output Voltage –0.3 to VIN +0.3 V
IOUT Output Current 200 mA
PD Power Dissipation 250 mW
Topt Operating Temperature –40 to +85 ˚C
Tstg Storage Temperature –55 to +125 ˚C
LOW DROP-OUT AND LOW NOISE
VOLTAGE REGULATOR
RN5RZ SERIES
OUTLINE
IC98 HVIRN5RZ50BA REGULATOR 5V (SOT-23-5)
AVR347 harman/kardon
154
