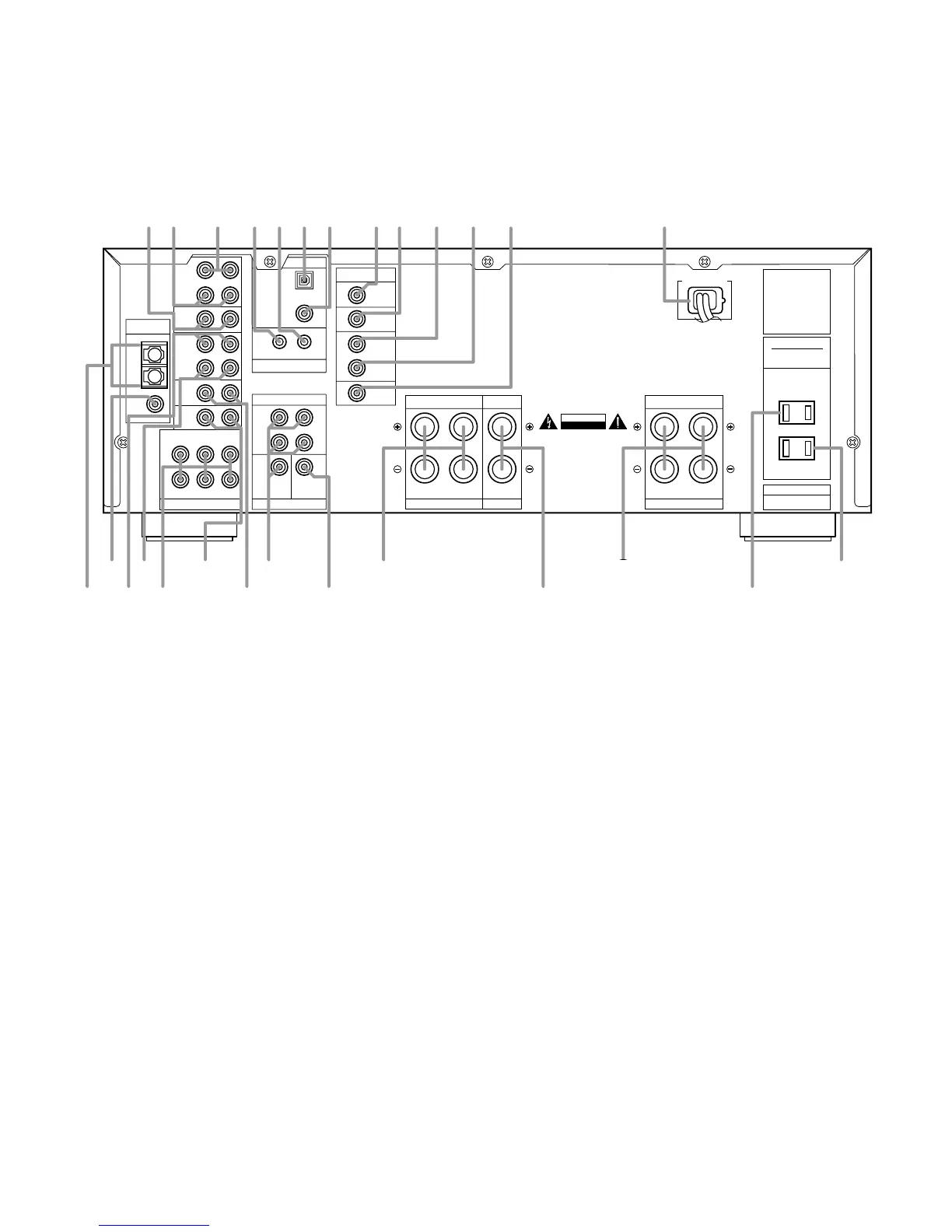

Rear Panel Connections
9
SWITCHED
TOTAL 50W MAX.
UNSWITCHED
TOTAL 100W MAX.
(120V.60Hz)
TOTAL 150W MAX
MODEL NO. AVR-45
HARMAN KARDON
NORTHRIDGE
CALIFORNIA, USA
MADE IN CHINA
FM
(75Ω)
AM
ANTENNA
GND
AC 120V 60 Hz
IN
OUT
TAPE
MONITOR
RIGHT
SPEAKERS 8 Ohms SPEAKER 8 Ohm
LEFT CENTER
VIDEO
2
PLAY
IN
REC
OUT
VIDEO
1
DVD
CD
SL
FLCENTER
SR FRSUB WOOFER
6 CH. DIRECT
FRONT
CENTER
SERIAL NO.
AC OUTLETS
RIGHT
SPEAKERS 8 Ohms
LEFT
SURROUND
AVIS: RISQUE DE CHOC
ELECTRIQUE - NE PAS OUVRIR
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
OUT
IN
TV
MONITOR
OUT
VIDEO 2
IN
OUT
DVD
VIDEO 1
SURR.
FRONT
OPTICAL
COAXIAL
CENTER SUB WOOFER
DIGITAL INPUT
PRE OUT
VIDEO
REMOTE CONTROL
·abcdflfl‡°¢¶£fi
›
‹
¤
⁄
‚
ª
•
¶
§
∞
¢
£
™
¡
¡ AM Antenna
™ FM Antenna
£ Video 1 Inputs
¢ Video 1 Outputs
∞ 6-Channel Direct Inputs
§ CD Inputs
¶ DVD Inputs
• Pre-Outs
ª Subwoofer Pre-Out
‚ Front
⁄ Center
l Surround
‹ Unswitched AC Outlet
› Switched AC Outlet
fi Power Cable
fl Video 2 Inputs
‡ TV Monitor Video Output
° AC-3/PCM Coaxial Input
· AC-3/PCM Optical Input
a Remote IR In
b Remote IR Out
c Tape Monitor In
d Tape Monitor Out
¡ AM Antenna: Connect the AM
loop antenna supplied with the
receiver to these terminals. If an
external AM antenna is used, make
connections to the AM and GND
terminals in accordance with the
instructions supplied with the
antenna.
™ FM Antenna: Connect an indoor
or external FM antenna to this
terminal.
£ Video 1 Inputs: Connect these
jacks to the audio and video
PLAY/OUT jacks of a VCR.
¢ Video Outputs 1: Connect these
jacks to the audio and video
RECORD/IN jacks of a VCR.
∞ 6-Channel Direct Inputs: If an
external digital audio decoder is
used for 5.1 (Dolby AC-3) audio,
connect the outputs of that decoder
to these terminals.
§ CD Inputs: Connect these jacks
to the output of a compact disc
player or CD changer.
¶ DVD Inputs: Connect the analog
audio outputs and composite video
output of a DVD or LV player to these
jacks.
• Pre-Outs: If external power
amplifiers are used for any channels,
connect them to these jacks.
l
AVR45 om (G).Eng,Fr 4/16/99 11:41 AM Page 9
